1SDA054415R1 ABB C.BREAKER TMAX T5H 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC ..
1SDA054415R1
ABB

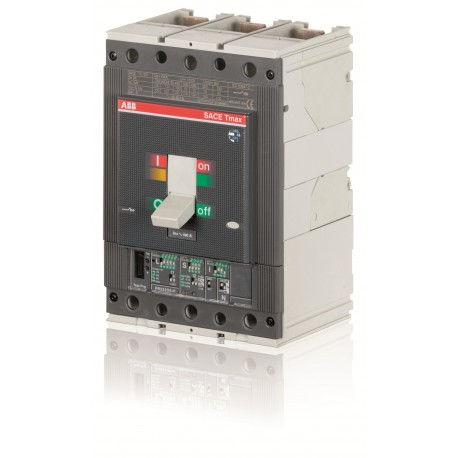

C.BREAKER TMAX T5H 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 630 T5H 630 PR222DS/P-LSIG In=630 3p F F
T5H 630 PR222DS/P-LSIG In=630 3p F F
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0b7f9dc9-d564-4305-8d9d-0c57807b4035 Italy |
| Simplified SCIP | 99ad10b6-7d13-4e50-b773-0387eadabe9a France |
| 25c42877-1538-4bf9-af78-0b18fda911de Hungary | |
| 418f2686-2608-44e5-96e5-568f55e5aa13 Spain | |
| 8a4ca6cc-d5b3-4e8f-98d5-b264c2b60d51 Belgium | |
| cbc7acb7-a412-40a6-a74b-bd3ab3d9c5c4 Germany | |
| 8d0ca85a-7e37-46f9-92a2-164b2134e2a6 Croatia | |
| ca1560d0-b6e3-49a5-8d47-2d152ad999f9 Germany | |
| a90d3faa-851b-4398-9e27-bbc15539acb0 Germany | |
| 336506b3-e71c-4211-96f8-bd2d6f3a28bc Greece | |
| 24708d57-1a40-42c7-8295-d1f8bdaaf4da Germany | |
| cbc9b199-6ace-40a6-8523-0550ebaecb6e France | |
| 8c00f220-3d14-4591-b3ca-76e41dad0a97 Denmark | |
| cc69a7cc-1ca1-4a08-a5c7-fd45b3382db3 Sweden | |
| acedf47c-9a5b-48a6-92fd-c4184592d696 Czech Republic | |
| 74b5bb0b-ef8d-42a0-ba56-61889beea1ef Portugal | |
| fe235341-da7a-46a1-acf3-fd030c617b5b Germany | |
| 8e55f27b-21e6-4f10-b208-93c500d266a5 Netherlands | |
| 70960936-b534-49e2-a960-7b4417fd7df1 Norway | |
| e1f539e1-7ef8-4131-bbf1-78fa6355c384 Sweden | |
| e275f2cd-0380-42bb-9559-c49a7c7664e9 Poland | |
| ade33de9-ae52-454c-8ac3-2a6c4e213a1a Bulgaria | |
| b284f561-ff8e-40ce-9890-f01408528829 Poland | |
| b3c9aecc-a543-40cf-8990-6bc56d1ad584 Hungary | |
| 43e87337-cfd6-483e-844e-648f5fd9ce43 Poland | |
| 67fec6ba-6026-4a0a-85f0-8e3d3b64847e Finland | |
| 623e6655-a721-4572-8bb6-3f50948dd5a3 Estonia | |
| 3c7fec50-cf94-4294-914c-34222ad8261c Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655389 |
| EAN | 8015644555139 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644555139 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR222DS/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
