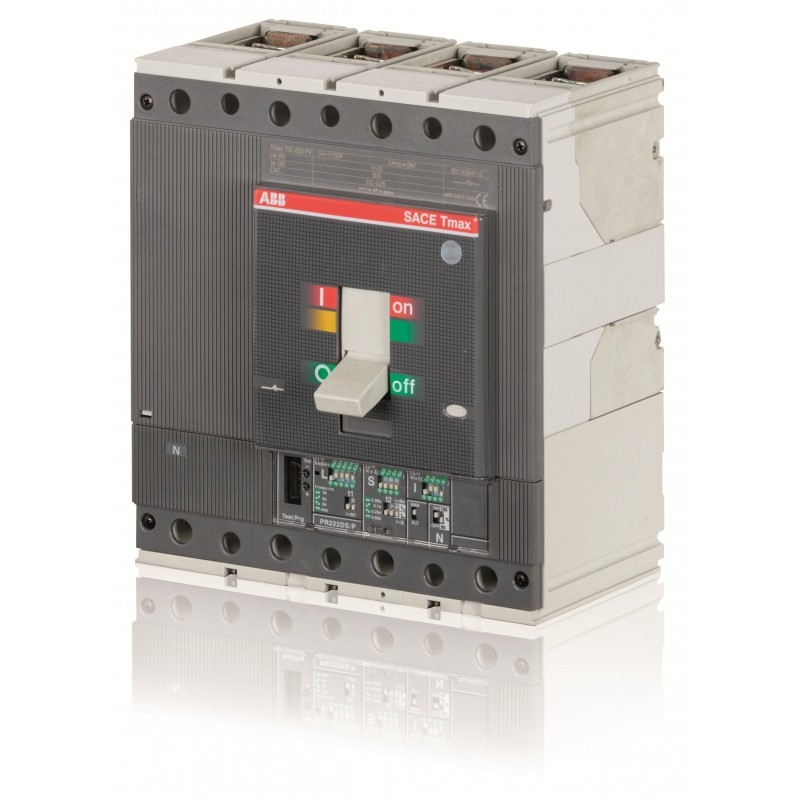

1SDA054403R1 ABB C.BREAKER TMAX T5N 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC P..
1SDA054403R1
ABB
C.BREAKER TMAX T5N 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 630
T5N 630 PR222DS/P-LSIG In=630 4p F F
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 02b79f3e-b338-488d-b5b1-913d4b4c9314 China |
| Simplified SCIP | 2e2af507-e267-43d2-b7c1-5a664a7fd7b7 France |
| 2c334be3-6736-450d-b8aa-479d482b2050 Poland | |
| 84f6f851-e932-4fe2-b456-6cf1531fdf88 Czech Republic | |
| fdd2e904-7b0f-4087-b5b9-004d01cf8f62 Norway | |
| e4bf9236-c737-4718-acec-6d6e63c8c50e Hungary | |
| 7630aac4-5a6f-4a7e-af3a-9340af462560 Germany | |
| 48a0168b-1dfb-4322-982f-750811bb1b42 Croatia | |
| 6b46ff57-099d-48f1-923e-f6f8f6ed5291 Finland | |
| 651f3003-03be-4c01-adae-f44c385ee981 Belgium | |
| df903fdd-307c-47dc-862e-f53c5acc54e8 Germany | |
| 59ea4aba-a095-4c22-ad9e-3cfcfbd0145f Denmark | |
| ded46b38-97fa-4c6c-8fc7-a4ee2452e2cb Germany | |
| a97266d3-5b24-4a0c-a00f-155339d1e41e Poland | |
| fe379215-cf32-42de-bb81-cfae72441f6d Estonia | |
| da162571-5aa8-4121-bcba-1bdd0445209c Netherlands | |
| 8821bc09-810d-4991-be1c-92dd32655985 Hungary | |
| 30709673-148c-4aeb-9b05-a32b9a377bf4 Bulgaria | |
| bb28d95e-72cc-4589-9c33-12d5bcf23584 Sweden | |
| fa3a25a8-e3d5-44d6-9512-c9d57be737b9 Portugal | |
| 7509a659-fb49-439f-b10b-086ffefa0114 Greece | |
| d6a1180e-9239-418c-a645-f0f4a74f124c Germany | |
| a45d4e79-5650-415c-940b-462c977e05b5 France | |
| 716102cd-68f0-4b4e-ad90-5cd4cb6cda02 Poland | |
| b623448f-a89f-4766-9d83-2d974536420c Spain | |
| f5fe83e7-8214-4024-be59-f2efebabf08e Sweden | |
| 89336b6e-be3b-4a74-9cd1-335e4bee58a9 Germany | |
| b478cc7b-da01-4d27-840c-62c30f4b24ef Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655398 |
| EAN | 8015644555016 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.2 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.2 kg |
| Package Level 1 EAN | 8015644555016 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR222DS/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
