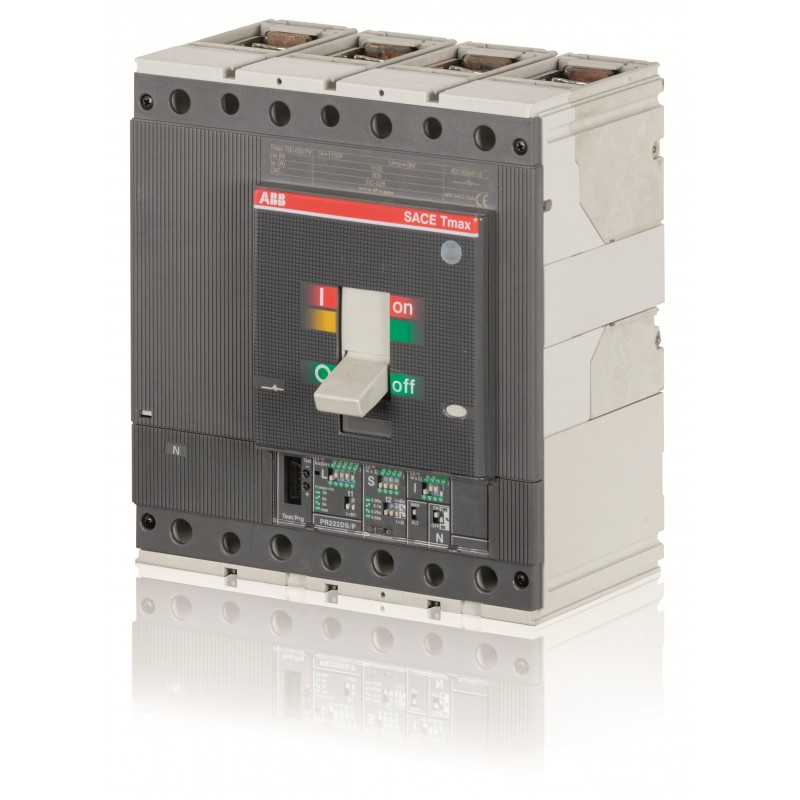

1SDA054379R1 ABB C.BREAKER TMAX T5L 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC P..
1SDA054379R1
ABB
C.BREAKER TMAX T5L 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 400
T5L 400 PR222DS/P-LSIG In=400 4p F F
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 49a61d99-2c74-4763-a393-462d8c2a6d14 China |
| Simplified SCIP | 24bd3fc0-602a-43de-b312-a35967c472b2 Germany |
| 846a06e0-d811-43f6-8cb5-e9e411d5915b Czech Republic | |
| bf4ee7de-0aa5-4e69-9434-1f3def969fe6 Poland | |
| cf3a87a3-2d07-45e6-8713-75d65552a6ed Finland | |
| fcb982c3-0966-4f62-96d9-ece1169ba8b2 Belgium | |
| 309ef054-acff-4bb1-836e-27c5672ff935 Norway | |
| ef0e5628-0c19-4846-af40-3732fceb33a3 Croatia | |
| 86df4a45-bff7-4759-956f-2f6c9c2e6bb7 Germany | |
| 90c0f567-ec1e-4c2e-859f-2f6c15b45987 Germany | |
| a1211a84-3f63-4c37-862c-456e20f2abb6 Denmark | |
| 6b15d08d-4680-44c6-8bf2-9f97b8337991 Netherlands | |
| 0a31e374-22d7-45ef-b327-55485eae4e07 Poland | |
| b3bf2292-516e-415f-a374-6e0926ca2573 Hungary | |
| 1bce8a9b-1593-4845-964b-54295de840c4 Estonia | |
| 28cc395e-1cad-4052-bbae-5794daa37e01 Greece | |
| 9a2d9944-c134-46ee-b77a-d1fff66c9d6d Germany | |
| 38eab10e-5f4f-4705-8975-8e6ac1ec6f6e France | |
| 250ffcff-ebc8-4399-9eea-ffaee3e65990 Poland | |
| 713a490c-1f34-4b0d-869e-2640ec65775d Sweden | |
| 65672434-2520-4218-8d1f-b1ac311e6967 Portugal | |
| 51bb05f6-d46b-42c6-9364-f1377cc06a1b Bulgaria | |
| d761b922-c8ca-4a9f-a56e-695b509b68bd Belgium | |
| 27dfadb3-781c-4823-8622-a5a80e1d285d Hungary | |
| d1e52327-1816-42a2-97ef-846a991b415c France | |
| deac90f6-fa06-4f31-9112-2a80a9534068 Sweden | |
| cdf36ba4-c838-428d-9846-fb81fd05320f Spain | |
| 3989031d-564c-426a-a747-57129ca6db74 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655406 |
| EAN | 8015644554774 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.2 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.2 kg |
| Package Level 1 EAN | 8015644554774 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR222DS/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
