1SDA054371R1 ABB CIRCUIT BREAKER TMAX T5L 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE ..
1SDA054371R1
ABB

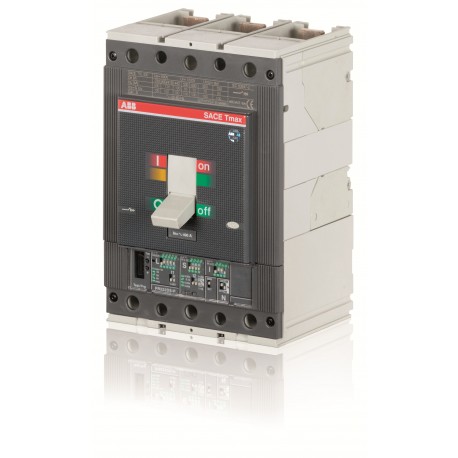

CIRCUIT BREAKER TMAX T5L 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 400
T5L 400 PR222DS/P-LSIG In=400 3p F F
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 30d86893-85ea-4e18-a4dc-c799214b86ad China |
| Simplified SCIP | ba356d95-84d4-4b19-9597-8f74f57ffd63 Germany |
| 84b6f81c-aee5-42ee-9c05-e434de9527a9 Finland | |
| 21a8612b-aee4-4ff9-abcc-246505e0b9ba Belgium | |
| b0e794fd-e55c-4a0c-b9a2-d676eb36c21e Belgium | |
| 58628efb-36a3-4751-b5b4-68d735d88225 France | |
| 16698cab-1ab3-4a2b-9f8a-3286567fb62f Hungary | |
| 94adcee2-e23e-4385-8591-1e62bb1fdb26 Germany | |
| 76feb803-e9c7-49e2-a364-ae751263a42f Bulgaria | |
| ac48ad91-a0a5-42d1-b957-c5f1977e18c7 Portugal | |
| f147f310-f76d-4b40-9e73-b0031f6f3cad Sweden | |
| 36ec1a79-f594-473b-b44d-6271fc29b6a1 Poland | |
| c08a8b2d-c996-4906-a111-e3b41d32b7ca France | |
| f4dedaf9-f4e4-4076-9b0e-80163430a5e3 Poland | |
| 4ad44f52-971c-44d1-b84d-88b257339e32 Czech Republic | |
| ca7c423e-da30-49a9-bb49-a5101243ec24 Norway | |
| 936bf4b6-4014-4bac-ad91-055400f96181 Croatia | |
| 31f6cafb-fd33-4355-9cbd-177e8070374a Netherlands | |
| 2207bf96-8323-41d1-82b8-5014fb3abe27 Poland | |
| e6e0f3d8-5b9e-4212-a448-5e7d9cfca11e Hungary | |
| b3b660d3-491b-46da-9270-7f65bed52b18 Greece | |
| d7e556b6-bcb6-4554-9165-b41534f3b543 Estonia | |
| 23c83993-c19d-4ec0-82bd-96ad3e88210b Denmark | |
| e07d30e9-b684-42d2-8a58-e3d0327404a1 Germany | |
| ef69b478-ef71-47ae-a6dc-55a1c3c2aa7e Germany | |
| d74d88f6-3303-49bd-9727-80fea2248d29 Germany | |
| 5e59ba59-5ac9-40e4-a458-592f90881f55 Sweden | |
| ba861605-9735-4b2a-9b5a-100b99c44b6e Spain | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655391 |
| EAN | 8015644554699 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554699 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR222DS/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
