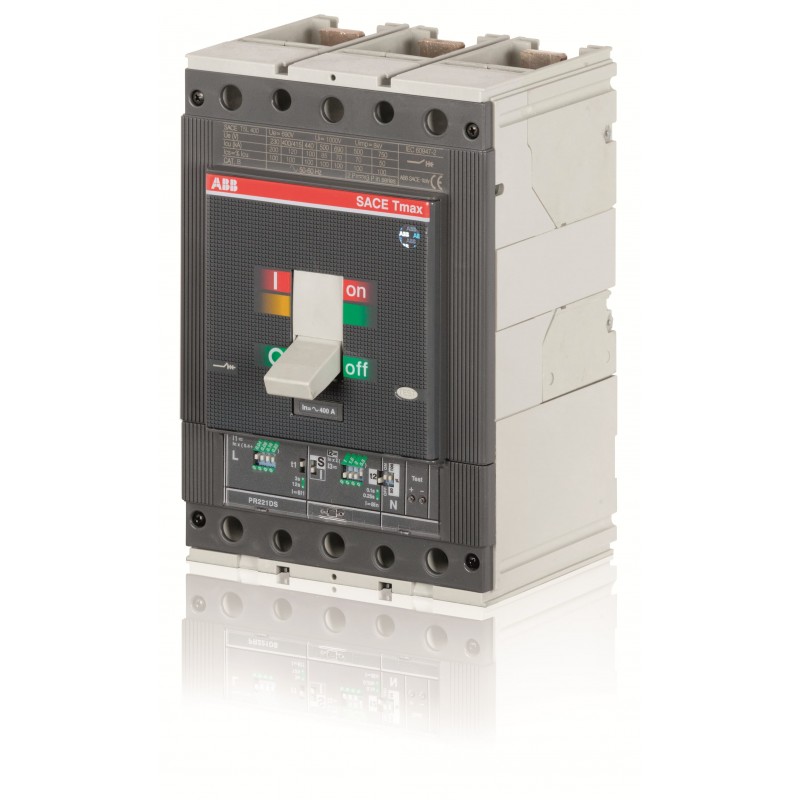

1SDA054367R1 ABB CIRCUIT BREAKER TMAX T5L 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE ..
1SDA054367R1
ABB
CIRCUIT BREAKER TMAX T5L 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-I R 400
T5L 400 PR221DS-I In=400 3p F F
Molded case "Isomax-Tmax" > T5
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d62f8337-08a7-40fd-9d32-dbb2ffdd2c30 China |
| Simplified SCIP | feef066f-46ab-4ba5-9b1e-1d39932ee18a Norway |
| 99df5e87-b392-4006-ad41-cfdc5c19501b France | |
| 30e103a4-58fa-45ee-8428-b9cb81533786 Netherlands | |
| 73be9c5d-81c8-43f4-94af-6f03ec021d45 Finland | |
| d2d47b61-118a-4b45-807b-31b4db5ad731 Sweden | |
| 8cea78da-bb98-45e8-a26d-0f6bb2b362ee Germany | |
| dfaf1de1-d3fc-467d-a2c8-6b80497195e1 Portugal | |
| d0c30e92-d071-44cb-9add-58df9dc59350 Hungary | |
| fee44256-690c-4095-9d22-5161cd4f7201 Germany | |
| c26cae2d-bcf1-4228-a19a-c7e3a7e4ca69 Spain | |
| 7d5b2741-bc2f-49ba-af55-b61a661fa929 Germany | |
| 9a2a69ba-e8f1-4db1-89ee-f6ab32794155 Greece | |
| eb8d7bc9-a98c-46a8-9473-63b895cbc016 Denmark | |
| 3ed202e5-fd57-45f0-86b4-0019efc6c8aa France | |
| 27ee2c4b-f982-4cc1-a147-5ed40cd2dca3 Germany | |
| cfd5ff45-9b05-4c1a-b998-d7cacb13be96 Poland | |
| bfd20ed2-b982-4df1-930f-250f6f38ff36 Germany | |
| fcca8cf9-9bdd-4c7b-a2e5-acdaa3f15895 Poland | |
| 2b7cd315-6df4-4853-a1ed-645b3168b541 Poland | |
| 33769e07-a73a-4fff-ae20-52910bfa4080 Sweden | |
| 852b5849-690a-4f9f-8bb1-1d38af89781c Bulgaria | |
| 1b8f18a6-1a76-44fe-99c0-b0b3b7e14335 Czech Republic | |
| c5c05c83-6dad-4fe9-a951-c25b1e05aecd Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655537 |
| EAN | 8015644554651 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554651 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA054367R1 1SDA054367R1 1SDA054367R1_T5L_400_PR221DS-I_In_400_3p_F_F.pdf | 215 Kbytes |
|
