1SDA054338R1 ABB C.BREAKER TMAX T5S 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC ..
1SDA054338R1
ABB

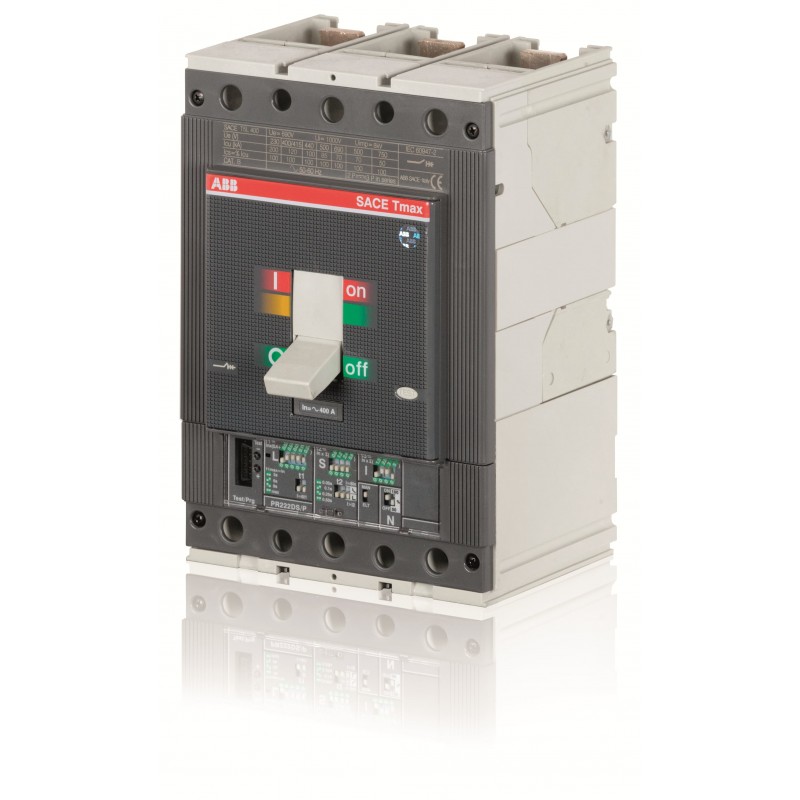

C.BREAKER TMAX T5S 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 320
T5S 400 PR222DS/P-LSIG In=320 3p F F
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7f6c65df-43bd-4cbd-8bc5-91a9ce9103ab China |
| Simplified SCIP | 5528b2f7-815f-48c6-b39f-baaabfa7eaf0 Finland |
| 61559150-d8ff-49a9-8a93-21286f277820 Germany | |
| df32e9bd-388f-4817-b20c-d111b44e9dff Denmark | |
| 07d4058f-6cf7-4fac-a091-6a058d0d86c8 Germany | |
| f63a7fed-fa78-49be-a2c9-d4eac05bd00f Belgium | |
| 9b0b9a1a-6924-4ce4-acfd-f62cc026aa75 Belgium | |
| 5767f402-eb1f-4557-842d-7ef183cd4ea0 France | |
| 3ea2eca1-4c0f-4d4a-9989-226ea33e5834 Germany | |
| e3ed24b1-e2da-40d5-b14d-623521405ca3 Sweden | |
| e9c3aa76-9b8d-4f0f-80cd-7756b3d7d1d6 Spain | |
| a4e1a41c-8d97-4215-8a02-4d66ce6e45bd Sweden | |
| b28b2f81-128f-495d-b1de-239450df423f Bulgaria | |
| 70474c53-9e00-4c0f-a8da-5682c83ae81e Greece | |
| a07b12fb-106f-4bda-983f-b559a4d214ad Portugal | |
| a8a6f7a8-61cc-42a8-8a2d-0e98e0476a09 Poland | |
| 895819c2-cee8-4668-810a-6a76ac133e7e France | |
| 813a624f-4c43-4385-8ab1-a57f53a225b7 Germany | |
| de99621b-1af4-4e7f-8e35-a278e0354bb8 Poland | |
| 860c4efd-ef00-43fe-a74a-c9b3201158f0 Netherlands | |
| ec9971b7-0296-439e-a656-853e2673f50d Hungary | |
| 7022caea-658a-4253-87f9-6ef1826bebae Estonia | |
| 08d174be-bf8d-443e-b9fb-fd7395d5f7de Norway | |
| d51a4f6c-7cd0-4f4f-9f98-36a18f7b1287 Czech Republic | |
| e107e995-15d0-4af7-a502-80cc3621e16e Poland | |
| 3998e583-3e4e-4945-9f91-9499d10d3f27 Croatia | |
| a9fa48ea-6326-4641-8002-75c4a8df0838 Germany | |
| 62468e46-ed46-4168-808f-ed453d70c9d0 Hungary | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655384 |
| EAN | 8015644554361 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554361 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 10.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR222DS/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Instructions and Manuals | 1SDH000437R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
