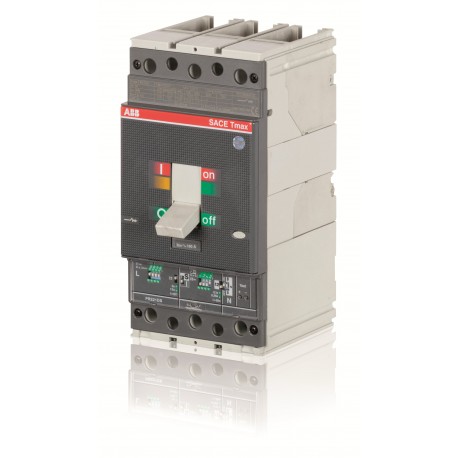

1SDA054047R1 ABB C.BREAKER TMAX T4H 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC ..
1SDA054047R1
ABB
C.BREAKER TMAX T4H 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 250
T4H 250 PR221DS-LS/I In=250 3p F F
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | cd38da51-f69e-4511-933c-8ce3aea1fd55 China |
| Simplified SCIP | c281357f-be7d-4b84-9608-f47adf2b8015 Germany |
| 13e30be2-1151-49ac-a7bd-f9ebded06246 Belgium | |
| cb8457af-bbd0-4f6c-a78f-399891e9424d Netherlands | |
| 4b7f4f09-7ebf-4a67-949a-a1ce3c52d844 Greece | |
| 090b63d4-58ea-4244-beb2-5f13e5959f2a Germany | |
| 326533ed-b6b0-484d-b47b-2419833a9ab5 Poland | |
| 5bcc1f0b-7306-4647-b95c-fdca47256147 Sweden | |
| 441ae8c8-8881-4ef1-ac18-86b102a766c0 France | |
| d871cb7f-3bef-43e9-859f-f7416424b58c Norway | |
| b251b8ae-d8d5-4042-8157-d93af1acc49f Finland | |
| 11aea2c9-856a-48c2-861d-ab6b92affc2e Germany | |
| 1ef850b2-d895-4845-9b3f-e8facec8ee8a Germany | |
| ffad3c10-7c0a-41c6-b02c-8c96fe605376 Hungary | |
| 014d2c4a-39ea-48c4-8ae7-6eea751112ab Denmark | |
| fa018626-d466-49a5-b9b6-a18cdf79abab France | |
| cf6a4b98-26c8-490c-835d-24955e1e21fd Spain | |
| a1634632-61d7-469e-a7d2-7bc165fba21a Portugal | |
| 4065eade-d5d8-486d-ae2a-3e1f3fb1f4d5 Germany | |
| 6dd374ab-5ba5-4d17-b861-82ebaf6eeb9f Bulgaria | |
| b780a33f-4104-4f54-acce-880eff0a4d89 Czech Republic | |
| 56ac22ef-bd07-4de3-acf6-7e5f32691307 Sweden | |
| f18f5647-8fd8-462b-8d8f-2ba680c40788 Poland | |
| 9eb222b8-f083-4137-b5e3-1bc136b33a13 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| Ordering | |
| E-Number (Finland) | 3655181 |
| EAN | 8015644551391 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644551391 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 8000 cycle |
| 120 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 10.7 W |
| Rated Current (In) | 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V) 40 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000436R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
