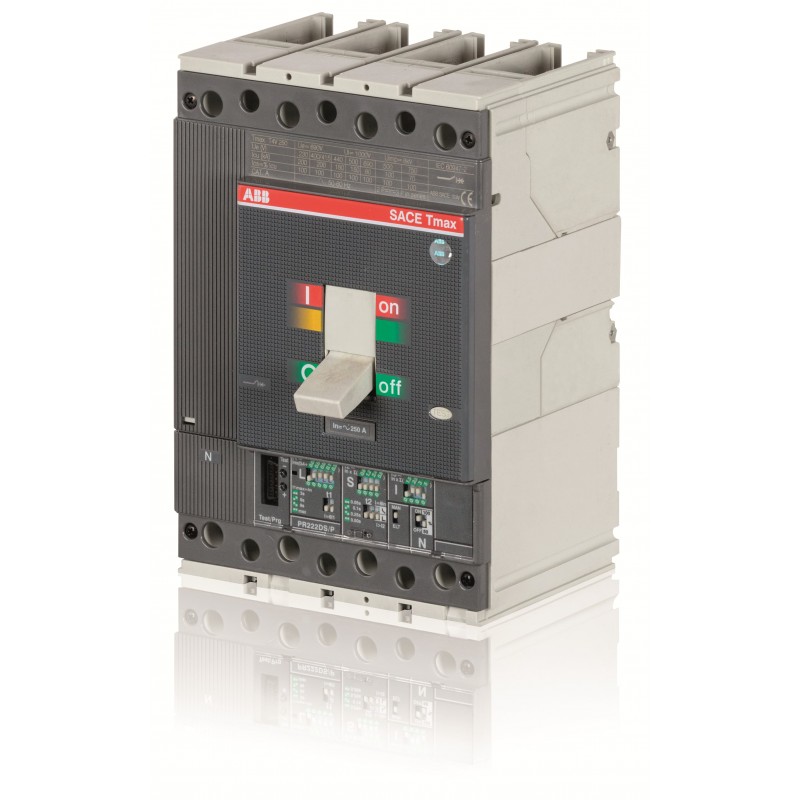

1SDA054043R1 ABB C.BREAKER TMAX T4S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC P..

1SDA054043R1

ABB

C.BREAKER TMAX T4S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 160

More details


Service Breakers

* Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

\n

General Information

\n
\n
\n\nExtended Product Type:\n\n\n\n
T4S 250 PR222DS/P-LSIG In=160 4p F F
\n\n
\n
\n\nProduct ID:\n\n\n\n
1SDA054043R1
\n\n
\n
\n\nEAN:\n\n\n\n
8015644551353
\n\n
\n
\n\nCatalog Description:\n\n\n\n
T4S 250 PR222DS/P-LSIG In=160 4p F F
\n\n
\n
\n\nLong Description:\n\n\n\n
C.BREAKER TMAX T4S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR222DS/P-LSIG R 160
\n\n
\n
\n\n
\n \n
\n
\n\n

Ordering

\n\n
\n
\n\nE-Number (Finland):\n\n\n\n
3655276
\n\n
\n
\n\nEAN:\n\n\n\n
8015644551353
\n\n
\n
\n\nMinimum Order Quantity:\n\n\n\n
1 piece
\n\n
\n
\n\nCustoms Tariff Number:\n\n\n\n
85362090
\n\n
\n
\n\n\n
\n
\n\n

Dimensions

\n\n
\n
\n\nProduct Net Width:\n\n\n\n
140 mm
\n\n
\n
\n\nProduct Net Height:\n\n\n\n
205 mm
\n\n
\n
\n\nProduct Net Depth / Length:\n\n\n\n
103.5 mm
\n\n
\n
\n\nProduct Net Weight:\n\n\n\n
3.05 kg
\n\n
\n
\n\n\n
\n
\n\n

Container Information

\n\n
\n
\n\nPackage Level 1 Units:\n\n\n\n
1 piece
\n\n
\n
\n\nPackage Level 1 Width:\n\n\n\n
248 mm
\n\n
\n
\n\nPackage Level 1 Height:\n\n\n\n
240 mm
\n\n
\n
\n\nPackage Level 1 Depth / Length:\n\n\n\n
285 mm
\n\n
\n
\n\nPackage Level 1 Gross Weight:\n\n\n\n
3.5 kg
\n\n
\n
\n\nPackage Level 1 EAN:\n\n\n\n
8015644551353
\n\n
\n
\n\n\n
\n
\n\n

Environmental

\n\n
\n
\n\nRoHS Status:\n\n\n\n
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
\n\n
\n
\n\n\n
\n
\n\n

Additional Information

\n\n
\n
\n\nElectrical Durability:\n\n\n\n
8000 cycle
\n
\n
120 cycles per hour
\n\n
\n
\n\nMechanical Durability:\n\n\n\n
20000 cycle
\n
\n
240 cycles per hour
\n\n
\n
\n\nNumber of Poles:\n\n\n\n
4
\n\n
\n
\n\nPower Loss:\n\n\n\n
at Rated Operating Conditions per Pole 4.4 W
\n\n
\n
\n\nProduct Main Type:\n\n\n\n
SACE Tmax T
\n\n
\n
\n\nProduct Name:\n\n\n\n
Moulded Case Circuit Breaker
\n\n
\n
\n\nProduct Type:\n\n\n\n
CB
\n\n
\n
\n\nRated Current (In):\n\n\n\n
160 A
\n\n
\n
\n\nRated Impulse Withstand Voltage (Uimp):\n\n\n\n
8 kV
\n\n
\n
\n\nRated Insulation Voltage (Ui):\n\n\n\n
1000 V
\n\n
\n
\n\nRated Operational Voltage:\n\n\n\n
690 V AC
\n\n
\n
\n\nRated Service Short-Circuit Breaking Capacity (Ics):\n\n\n\n
(220 V AC) 85 kA
\n
\n
(230 V AC) 85 kA
\n
\n
(380 V AC) 50 kA
\n
\n
(400 V AC) 50 kA
\n
\n
(415 V AC) 50 kA
\n
\n
(440 V AC) 40 kA
\n
\n
(500 V AC) 30 kA
\n
\n
(690 V) 25 kA
\n\n
\n
\n\nRated Ultimate Short-Circuit Breaking Capacity (Icu):\n\n\n\n
(220 V AC) 85 kA
\n
\n
(230 V AC) 85 kA
\n
\n
(380 V AC) 50 kA
\n
\n
(400 V AC) 50 kA
\n
\n
(415 V AC) 50 kA
\n
\n
(440 V AC) 40 kA
\n
\n
(500 V AC) 30 kA
\n
\n
(690 V AC) 25 kA
\n\n
\n
\n\nRated Uninterrupted Current (Iu):\n\n\n\n
250 A
\n\n
\n
\n\nRelease:\n\n\n\n
PR222DS/P-LSIG
\n\n
\n
\n\nRelease Type:\n\n\n\n
EL
\n\n
\n
\n\nShort-Circuit Performance Level:\n\n\n\n
S
\n\n
\n
\n\nStandards:\n\n\n\n
IEC 60947
\n\n
\n
\n\nSub-type:\n\n\n\n
T4
\n\n
\n
\n\nSuitable For:\n\n\n\n
T4
\n\n
\n
\n\nSuitable for Product Class:\n\n\n\n
Moulded Case Circuit Breakers
\n\n
\n
\n\nTerminal Connection Type:\n\n\n\n
Fixed Circuit-Breakers
\n
\n
Front
\n\n
\n
\n\nTest Voltage Max (Utest):\n\n\n\n
3500 V
\n\n
\n
\n\nTest Voltage at Industrial Frequency for 1 Minute:\n\n\n\n
3500 V
\n\n
\n
\n\nVersion:\n\n\n\n
F
\n\n
\n
\n\n\n
\n
\n\n

Certificates and Declarations (Document Number)

\n\n
\n
\n\nData Sheet, Technical Information:\n\n\n\n1SDC210004D0203\n
\n
\n\nDeclaration of Conformity - CE:\n\n\n\n1SDL000165R0004\n
\n
\n\nEnvironmental Information:\n\n\n\n9AKK10103A1057\n
\n
\n\nGL Certificate:\n\n\n\n1SDL000163R0061\n
\n
\n\nInstructions and Manuals:\n\n\n\n1SDH000436R0001\n
\n
\n\nInstructions and Manuals (Part 2):\n\n\n\nITSCE-RH0100001\n
\n
\n\nREACH Declaration:\n\n\n\n9AKK108466A1425\n
\n
\n\nRoHS Information:\n\n\n\n9AKK108466A1424\n
\n
\n\n\n
\n
\n\n

Classifications

\n\n
\n
\n\nETIM 4:\n\n\n\n
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
\n\n
\n
\n\nETIM 5:\n\n\n\n
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
\n\n
\n
\n\nETIM 6:\n\n\n\n
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
\n\n
\n
\n\nETIM 7:\n\n\n\n
EC000228 - Power circuit-breaker for trafo/generator/installation protection
\n\n
\n
\n\nObject Classification Code:\n\n\n\n
Q
\n\n
\n
\n\nUNSPSC:\n\n\n\n
39121100
\n\n
\n
\n\nWEEE Category:\n\n\n\n
5. Small Equipment (No External Dimension More Than 50 cm)
