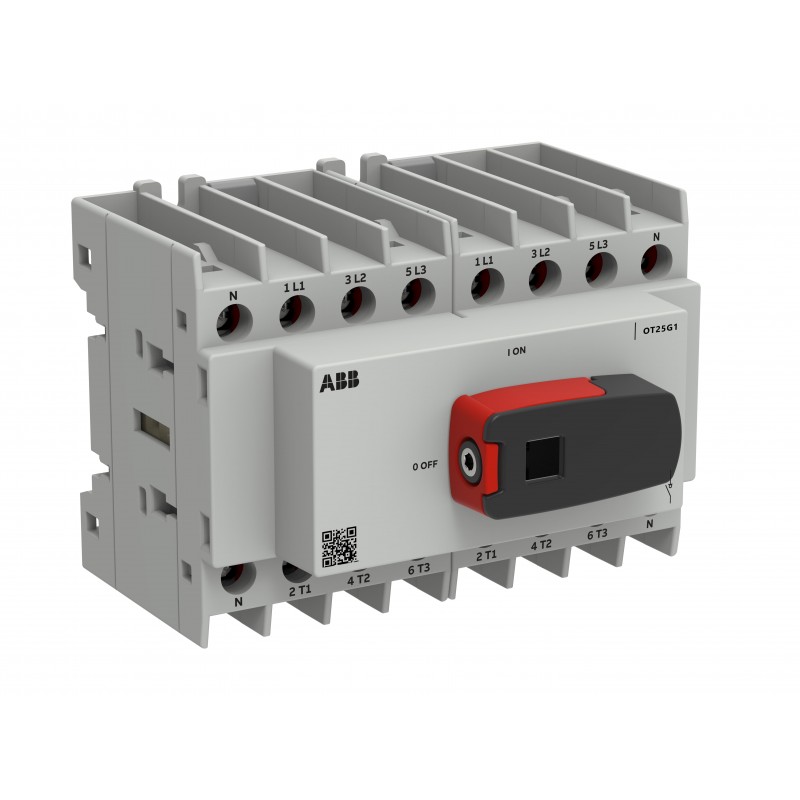

1SCA163702R1001 ABB Int. OT Plus OT25G1-8BS Disconnect
1SCA163702R1001
ABB
Int. OT Plus OT25G1-8BS Disconnect
OT25G1-8BS SWITCH DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| End Of Life Disassembling Instructions | 1SCC301152M0201 |
| Environmental Product Declaration - EPD | 1SCC301349D0201 |
| Extended Product Lifetime | Product Durability |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 92,5 % |
| Sustainable Material Content in Packaging (wt. %) | FSC 100% Cardboard - 35.9 % |
| FSC 100% Cardboard - 41.98 % | |
| FSC 100% Cardboard - 22.12 % | |
| Popular Downloads | |
| Instructions and Manuals | 1SCC301151M0201 |
| Mechanical Drawings | OT16_63G1-8B_SR.STP |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Height | 68 mm |
| Product Net Depth / Length | 74,2 mm |
| Product Net Weight | 0.321 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 72 mm |
| Package Level 1 Depth / Length | 97 mm |
| Package Level 1 Height | 78 mm |
| Package Level 1 Gross Weight | 0.342 kg |
| Package Level 1 EAN | 6417019931852 |
| Technical | |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x Cu 0.75…4 mm² |
| Solid 1/2x Cu 0.75…6 mm² | |
| Flexible 1x Cu 1.5…16 mm² | |
| Flexible 2x Cu 1.5…6 mm² | |
| Stranded 1x Cu 1.5…16 mm² | |
| Stranded 2x Cu 1.5…6 mm² | |
| Conventional Free-air Thermal Current (Ith) | 25 A |
| Conventional Thermal Current (Ithe) | 25 A |
| Fourth Pole Position | Right Side |
| Left Side | |
| Fourth Pole Type | Switched - Simultaneous Function |
| Switched - Late-break and Early-make | |
| Handle Color | Black |
| Handle Length | 37 mm |
| Handle Type | Knob |
| Lock Type | Padlockable |
| Maximum Mounted Auxiliary Contacts | 4 NO, 4 NC |
| Mechanical Durability | Nr. Operations 100000 |
| Mounting Type | Base/DIN mounting |
| Number of Poles | 8P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 0.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 800 V |
| Rated Operational Current AC-21A (Ie) | (415 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Current AC-22A (Ie) | (415 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (415 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Power AC-23A (Pe) | (415 V) 11 kW |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 800 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 1.76 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.8 kA |
| for 0.2 s 1.25 kA | |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 1 N·m |
| Wire Stripping Length | Main Circuit 9-10 mm |
| Main Circuit 0.35-0.39 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 1.5 Hp |
| (240 V AC) Single Phase 3 Hp | |
| (440 ... 480 V AC) Single Phase 7.5 Hp | |
| (550 ... 600 V AC) Single Phase 10 Hp | |
| (240 V AC) Three Phase 7.5 Hp | |
| (440 ... 480 V AC) Three Phase 15 Hp | |
| (550 ... 600 V AC) Three Phase 20 Hp | |
| Wire Size | 1x 18-6 AWG |
| 2x 16-10 AWG | |
| Tightening Torque UL/CSA | UL 1 lbf·in |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301348D2701 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 36 |
| E-Number (Sweden) | 3172233 |
