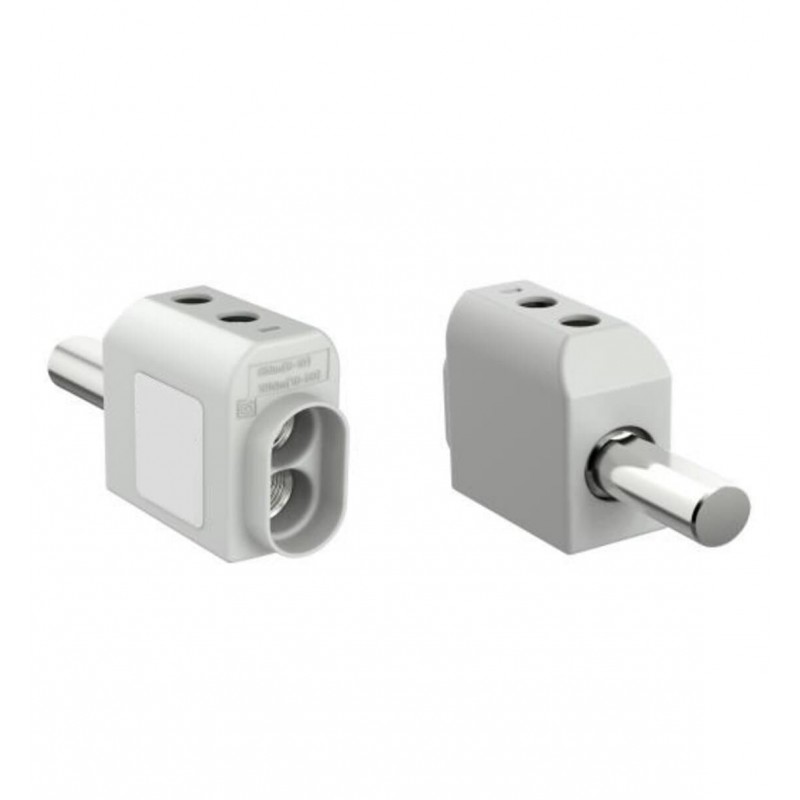

ABB 1SCA163565R1001 1SCA163565R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA163565R1001 ABB Cu & Al Cable Terminal 2x50mm2 OZXT2x50

Reference: 1SCA163565R1001

Manufacturer: ABB

Description:

Cu&Al Cable Terminal 2x50mm2 OZXT2x50
OZXT2X50 TERMINAL SET Al/Cu 2x(16…50mm2) (3 PCS)

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 113,99 €

Unit Price: 37,996 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Popular Downloads
Data Sheet, Technical Information9AKK108468A5537
1SCC301020C0201
Instructions and Manuals1SCC390197M0201
Mechanical DrawingsOZXT2X50.STP
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width22.4 mm
Product Net Height41.2 mm
Product Net Depth / Length71.8 mm
Product Net Weight0.057 kg
Container Information
Package Level 1 Unitsbag 3 piece
Package Level 1 Width150 mm
Package Level 1 Depth / Length100 mm
Package Level 1 Height40 mm
Package Level 1 Gross Weight0.175 kg
Package Level 1 EAN6417019931623
Technical
Cable Cross-SectionCu 6…50 mm²
Al 16…50 mm²
Conventional Thermal Current (Ithe)320 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 690 V
Rated Operational VoltageMain Circuit 690 V
Recommended Screw DriverMain Circuit Hexagon
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6…10 N·m
Wire Stripping LengthMain Circuit 18.5 mm
Main Circuit 32.0 mm
Main Circuit 1.10 in
Main Circuit 1.26 in
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
eClassV11.1 : 27371392
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)36
E-Number (Sweden)2670890

ETIM for 1SCA163565R1001 Low-voltage industrial controls and switchgear (EC002498)

Feature nameAccessory (EF013236)
Feature valueYes
