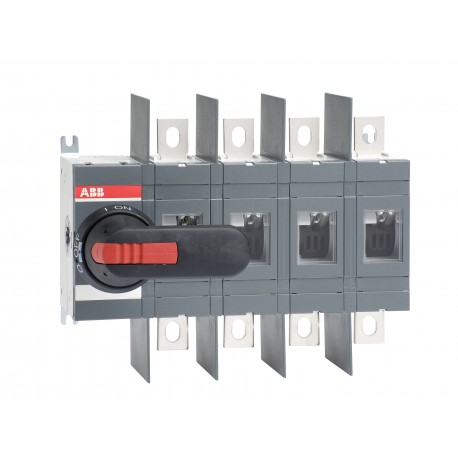

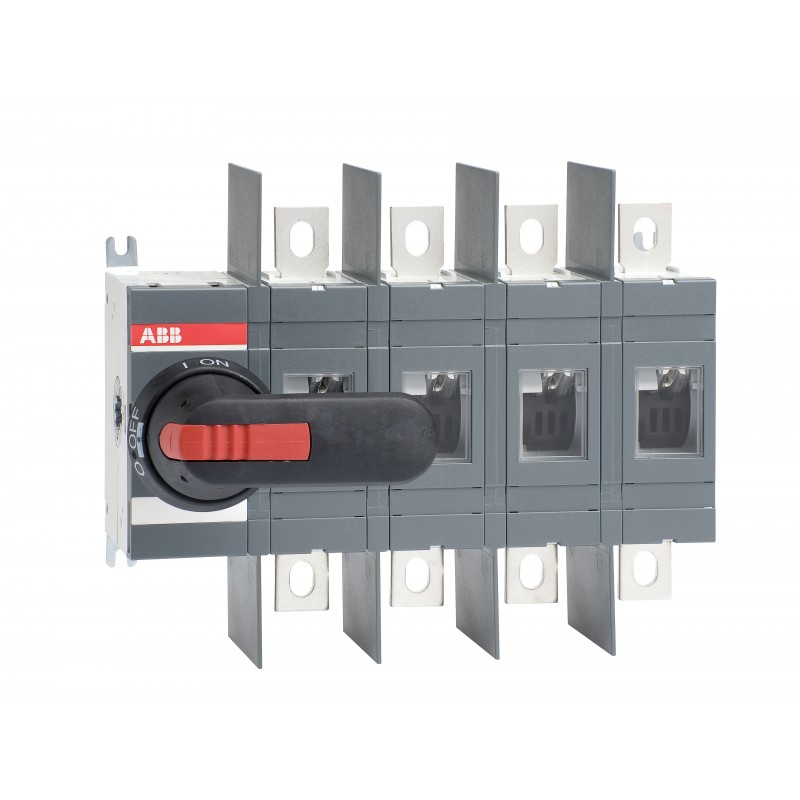

1SCA162979R1001 ABB Int. Sec. for 800-1000VAC OTHV315E04WP
1SCA162979R1001
ABB
Int. Sec. for 800-1000VAC OTHV315E04WP
OTHV315E04WP SWITCH DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A0610 |
| Instructions and Manuals | 1SCC301035M0019 |
| Mechanical Drawings | 1SCC301264F0002 |
| 1SCC301263F0002 | |
| OT400U04.igs | |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 275 mm |
| Product Net Height | 220 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Weight | 4.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Height | 290 mm |
| Package Level 1 Gross Weight | 4.6 kg |
| Package Level 1 EAN | 6417019929316 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 315 A |
| Conventional Thermal Current (Ithe) | 315 A |
| Degree of Protection | Front IP00 |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Length | 95 mm |
| Handle Type | Pistol type handle included |
| Mechanical Durability | Nr. Operations 16000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (800 V AC) 315 A |
| (1000 V AC) 315 A | |
| Rated Operational Current AC-22A (Ie) | (800 V) 315 A |
| (1000 V AC) 315 A | |
| Rated Operational Current AC-23A (Ie) | (800 V) 200 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC301324D0201 |
| FIMKO Certificate | 1SCC301324D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 315 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
