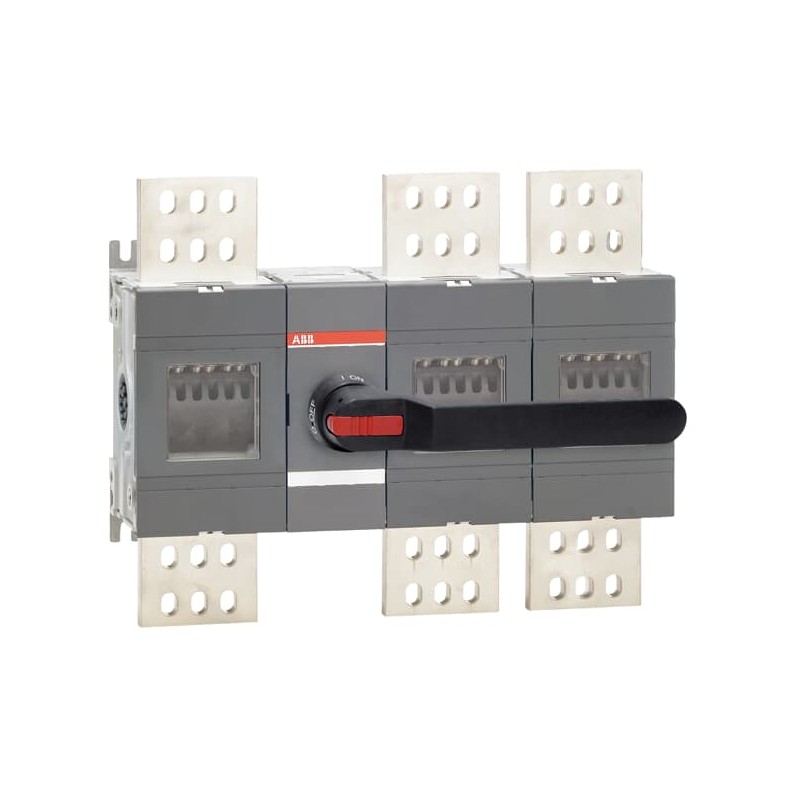

ABB 1SCA162453R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

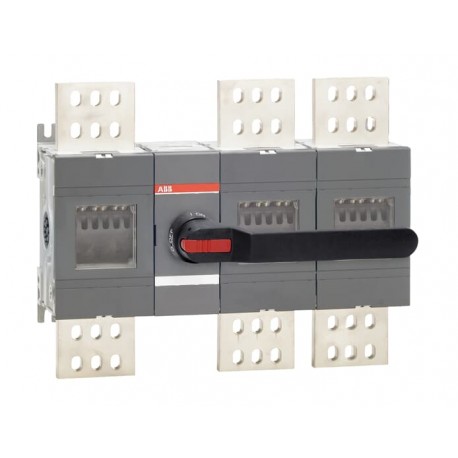

1SCA162453R1001 ABB Int. Sec. for 800-1000VAC OTHV2000E12P

Code: 1SCA162453R1001

Manufacturer: ABB

Description:

Int. Sec. for 800-1000VAC OTHV2000E12P
OTHV2000E12P SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 2.793,33 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301121M0201
Environmental Product Declaration - EPD1SCC301304D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information9AKK108469A0610
Instructions and Manuals1SCC301078M0205
Mechanical Drawings1SCC301522F0001
1SCC301521F0001
OT2500E12.igs
Environmental Product Declaration - EPD1SCC301304D0201
Environmental
Degree of ProtectionFront IP00
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width472.5 mm
Product Net Height376.5 mm
Product Net Depth / Length145.5 mm
Product Net Weight25.8 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width190 mm
Package Level 1 Depth / Length407 mm
Package Level 1 Height619 mm
Package Level 1 Gross Weight27.7 kg
Package Level 1 EAN6417019924700
Technical
Conventional Free-air Thermal Current (Ith)2000 A
Conventional Thermal Current (Ithe)2000 A
Degree of ProtectionFront IP00
Handle ColorBlack
Handle Length274 mm
Handle TypePistol type handle included
Mechanical DurabilityNr. Operations 6000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC 60947-1 1000 V
Rated Operational Current AC-21B (Ie)(800 V) 2000 A
Rated Operational Current AC-22B (Ie)(800 V) 2000 A
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kA
StandardsIEC 60947-3
Switches Operating MechanismMechanism Between the Poles
12 (Between the Poles)
Terminal TypeLug terminals
Terminal Width100 mm
Tightening Torqueacc. IEC 60947-1 50 … 75 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 50 … 75 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC301327D0201
FIMKO Certificate1SCC301327D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA162453R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value2000 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value55 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP00
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
