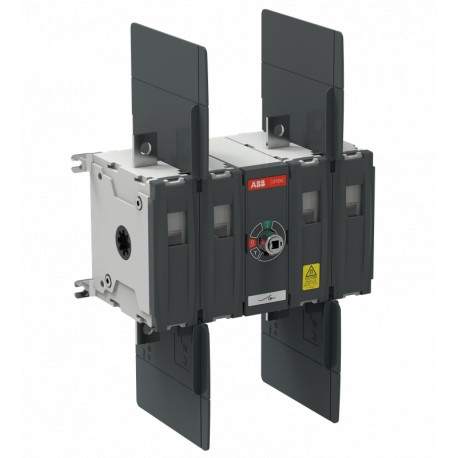

ABB 1SCA161976R1001 1SCA161976R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA161976R1001 ABB DC Disconnector Switch OTDC100GV22

Reference: 1SCA161976R1001

Manufacturer: ABB

Description:

DC Disconnector Switch OTDC100GV22
OTDC100GV22 DC Switch-disconnector

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 277,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    OTDC100GV22
  • Product ID:
    1SCA161976R1001
  • EAN:
    6417019920634
  • Catalog Description:
    OTDC100GV22 DC Switch-disconnector
  • Long Description:
    A fully optimized four-pole DC switch-disconnector to operate 2 circuits with single switch. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85353010
  • Country of Origin:
    Finland (FI)

Popular Downloads

Dimensions

  • Product Frame Size:
    S2.0
  • Product Net Width:
    224mm
    8.8 in
  • Product Net Height:
    165mm
    6.5 in
  • Product Net Depth / Length:
    120mm
    4.7 in
  • Product Net Weight:
    3kg
    6.5 lb

Technical

  • Connection Configuration:
    Double circuit 4a, 4c
  • Rated Operational Current DC-21B (Ie):
    (1500 V) 100 A
  • Rated Operational Current DC-PV1:
    (1500 V) 100 A
  • Rated Operational Current DC-PV2:
    (1500 V) 100 A
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 100 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 100 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1500 V
  • Rated Operational Voltage:
    1500 V
  • Rated Short-Circuit Making Capacity (Icm):
    (1500 V DC) 10 kA
  • Rated Short-time Withstand Current Low Voltage (Icw):
    (1500 V DC) 10 kA
    for 1 s 10 kA
  • Protection Type:
    Circuit breaker
  • Power Loss:
    at Rated Operating Conditions per Pole 1.0 ... 1.3 W
  • Pollution Degree:
    2
  • Handle Type:
    Handle and shaft not included
  • Positive Opening Operation Torque (Direct Opening Action):
    6 … 9 N·m
  • Shaft Diameter:
    6 mm
    0.24 in
  • Switches Operating Mechanism (
    Mechanism Between the Poles
    22 (Between the Poles)
  • Position of Line Terminals:
    Top In - Bottom Out
    Bottom In - Top Out
  • Operating Mode:
    Front Operated
  • Standards:
    IEC 60947-1, -3
  • Special Functions:
    No
  • Mounting Type:
    Base mounting
  • Number of Circuits:
    2
  • Number of Poles:
    4
  • Degree of Protection:
    Front IP20
  • Terminal Type:
    Lug terminals
  • Terminal Width:
    19.5 mm
    0.77 in
  • Tightening Torque:
    Cable Lug 15 … 22 N·m
  • Mechanical Durability:
    10000 cycle
  • Utilization:
    Photovoltaic
  • Utilization Category:
    Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
    Switching of single PV string(s) without reverse and overcurrents (DC-PV1)
    Switching of several PV string(s) with reverse and overcurrents (DC-PV2)

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    220 mm
    8.7 in
  • Package Level 1 Depth / Length:
    260 mm
    10.2 in
  • Package Level 1 Height:
    155 mm
    6.1 in
  • Package Level 1 Gross Weight:
    3.3 kg
    7.3 lb
  • Package Level 1 EAN:
    6417019920634

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
  • ETIM 7:
    EC000216 - Switch disconnector
  • ETIM 8:
    EC000216 - Switch disconnector
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA161976R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameRated operating voltage (EF001435)
Feature value1500 V
Feature nameRated permanent current Iu (EF001389)
Feature value100 A
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueYes
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1
