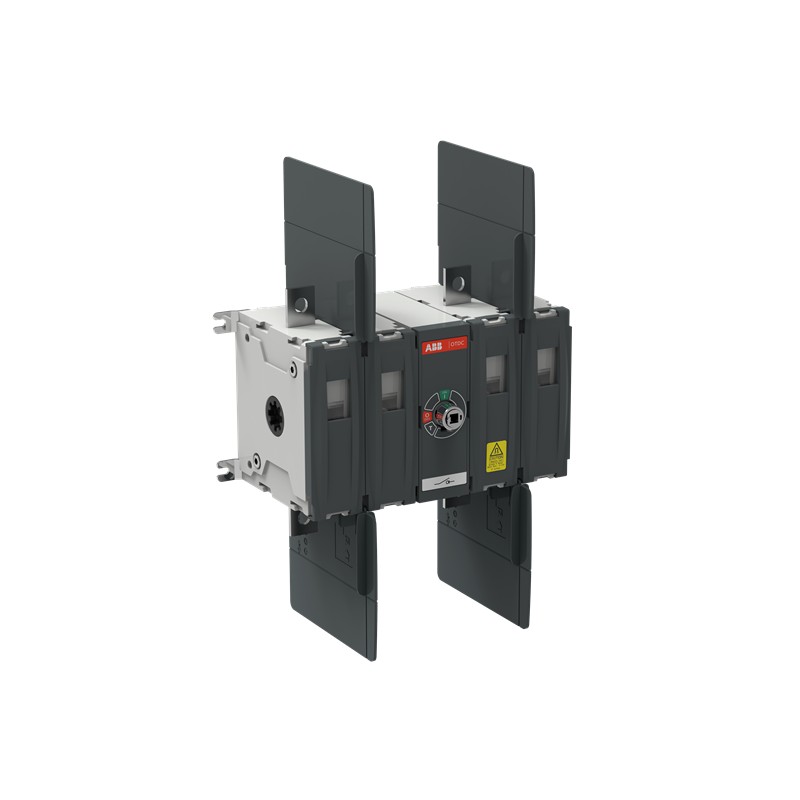

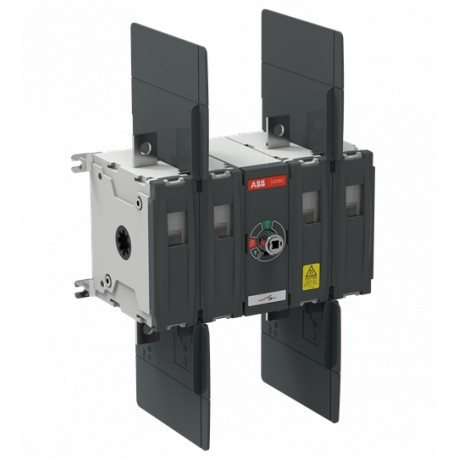

1SCA161939R1001 ABB Disconnector Switch CCOTDC250GV22
1SCA161939R1001
ABB
Disconnector Switch CCOTDC250GV22
OTDC250GV22 DC Switch-disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OTDC250GV22
- Product ID:
- 1SCA161939R1001
- EAN:
- 6417019920085
- Catalog Description:
- OTDC250GV22 DC Switch-disconnector
- Long Description:
- A fully optimized four-pole DC switch-disconnector to operate 2 circuits with single switch. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85353010
- Country of Origin:
- Finland (FI)
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301022C0201
- Instructions and Manuals:
- 1SCC301106M0201
- Mechanical Drawings:
- OTDC100-250_G_22_STP
1SCC307815F0201
Dimensions
- Product Frame Size:
- S2.0
- Product Net Width:
- 224mm
8.8 in
- Product Net Height:
- 165mm
6.5 in
- Product Net Depth / Length:
- 120mm
4.7 in
- Product Net Weight:
- 3kg
6.5 lb
Technical
- Connection Configuration:
- Double circuit 4a, 4c
- Rated Operational Current DC-21B (Ie):
- (1500 V) 250 A
- Rated Operational Current DC-PV1:
- (1500 V) 200 A
- Rated Operational Current DC-PV2:
- (1500 V) 100 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 250 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 250 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1500 V
- Rated Short-Circuit Making Capacity (Icm):
- (1500 V DC) 10 kA
- Rated Short-time Withstand Current Low Voltage (Icw):
- (1500 V DC) 10 kA
for 1 s 10 kA
- Protection Type:
- Circuit breaker
- Power Loss:
- at Rated Operating Conditions per Pole 7.7 ... 8.4 W
- Pollution Degree:
- 2
- Handle Type:
- Handle and shaft not included
- Positive Opening Operation Torque (Direct Opening Action):
- 6 … 9 N·m
- Shaft Diameter:
- 6 mm
0.24 in
- Switches Operating Mechanism (
- Mechanism Between the Poles
22 (Between the Poles)
- Position of Line Terminals:
- Top In - Bottom Out
Bottom In - Top Out
- Operating Mode:
- Front Operated
- Standards:
- IEC 60947-1, -3
- Special Functions:
- No
- Mounting Type:
- Base mounting
- Number of Circuits:
- 2
- Number of Poles:
- 4
- Degree of Protection:
- Front IP20
- Terminal Type:
- Lug terminals
- Terminal Width:
- 19.5 mm
0.77 in
- Tightening Torque:
- Cable Lug 15 … 22 N·m
- Mechanical Durability:
- 10000 cycle
- Utilization:
- Photovoltaic
- Utilization Category:
- Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Switching of single PV string(s) without reverse and overcurrents (DC-PV1)
Switching of several PV string(s) with reverse and overcurrents (DC-PV2)
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC301242D2701
- Instructions and Manuals:
- 1SCC301106M0201
- RoHS Information:
- 1SCC301242D2701
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 220 mm
8.7 in
- Package Level 1 Depth / Length:
- 260 mm
10.2 in
- Package Level 1 Height:
- 155 mm
6.1 in
- Package Level 1 Gross Weight:
- 3.3 kg
7.3 lb
- Package Level 1 EAN:
- 6417019920085
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
- ETIM 7:
- EC000216 - Switch disconnector
- ETIM 8:
- EC000216 - Switch disconnector
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA161939R1001 1SCA161939R1001 EN_1SCA161939R1001.pdf | 339 Kbytes |
|
