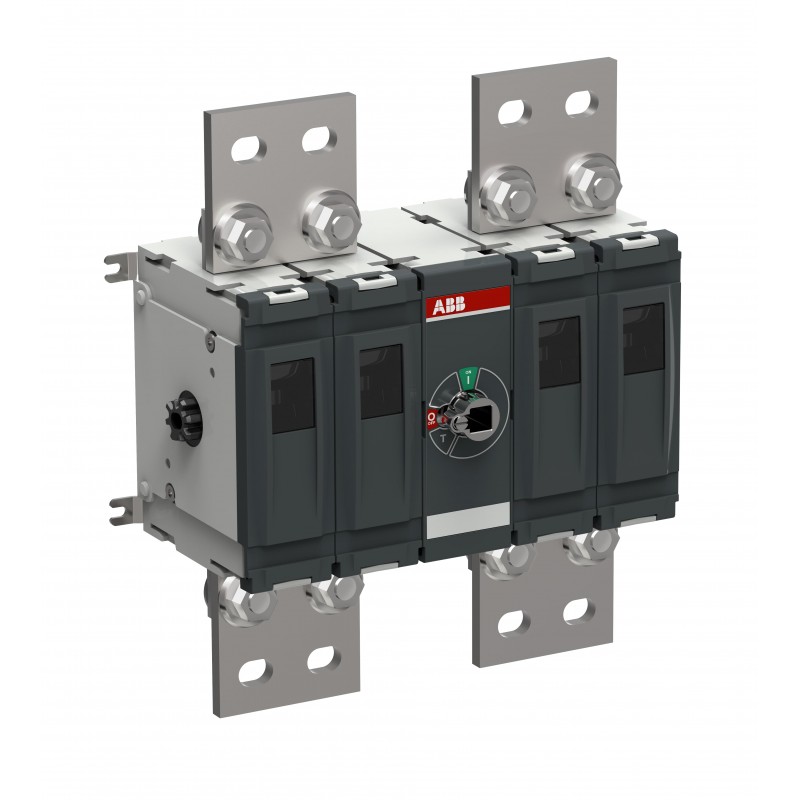

1SCA161286R1001 ABB DC Disconnector Switch OTDC1000F22
1SCA161286R1001
ABB
DC Disconnector Switch OTDC1000F22
OTDC1000F22 DC Switch-disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301112M0201 |
| Environmental Product Declaration - EPD | 1SCC301247D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59,09 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301102M0201 |
| Mechanical Drawings | OTDC800...1000_F_22_OTDCKIT800FS11.igs |
| OTDC800...1000_F_22_OTDCKIT800FS11.stp | |
| 1SCC307779F0201 | |
| 1SCC307780F0201 | |
| Wiring Diagram | 1SCC301046K0201 |
| Environmental Product Declaration - EPD | 1SCC301247D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| India | |
| Dimensions | |
| Product Frame Size | M |
| Product Net Width | 255.5 mm |
| 10.1 in | |
| Product Net Height | 211 mm |
| 8.3 in | |
| Product Net Depth / Length | 135 mm |
| 5.3 in | |
| Product Net Weight | 9.7 kg |
| 21.3 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| 10.6 in | |
| Package Level 1 Depth / Length | 310 mm |
| 12.2 in | |
| Package Level 1 Height | 200 mm |
| 7.9 in | |
| Package Level 1 Gross Weight | 10 kg |
| 22 lb | |
| Package Level 1 EAN | 6417019913889 |
| Technical | |
| Connection Configuration | Single circuit 6c, 6g |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1000 A |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base Mounting |
| Number of Circuits | 1 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 18 … 30 N·m |
| Power Loss | at Rated Operating Conditions per Pole 30 ... 32 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Current DC-21B (Ie) | (1000 V) 1000 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 10 kA |
| for 1 s 10 kA | |
| Shaft Diameter | 12 mm |
| 0.47 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 30 mm |
| 1.2 in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Switching of single PV string(s) without reverse and overcurrents (DC-PV1) | |
| Certificates and Declarations | |
| CCC Certificate | CQC2019010302206498 |
| Declaration of Conformity - CE | 1SCC301227D2701 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
