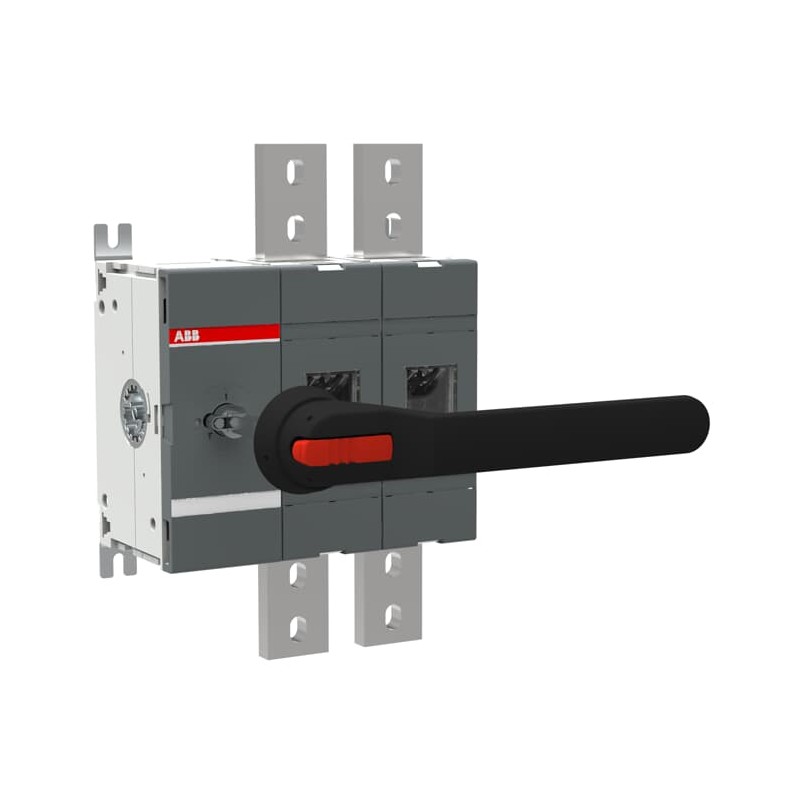

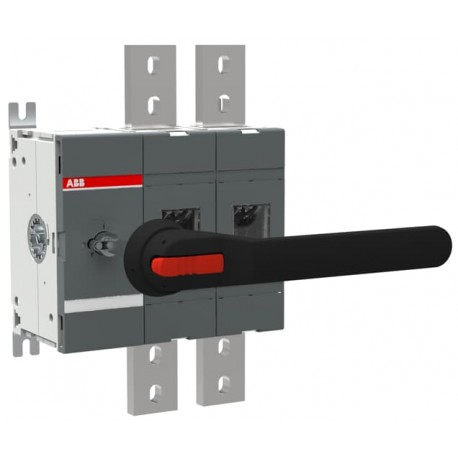

1SCA159246R1001 ABB Int.- disconnect OT1600E02P-135
1SCA159246R1001
ABB
Int.- disconnect OT1600E02P-135
OT1600E02P-135 Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Information | 1SCC301233D0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301023C0201 |
| Instructions and Manuals | 1SCC301104M0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301233D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85353010 |
| Country or Territory of Origin | Finland |
| China | |
| Dimensions | |
| Product Frame Size | OT1600-135 |
| Product Net Width | 254.5 mm |
| 10.0 in | |
| Product Net Height | 372 mm |
| 14.6 in | |
| Product Net Depth / Length | 148.5 mm |
| 5.9 in | |
| Product Net Weight | 12.8 kg |
| 28.2 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 400 mm |
| 15.7 in | |
| Package Level 1 Depth / Length | 435 mm |
| 17.1 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 13.2 kg |
| 29.2 lb | |
| Package Level 1 EAN | 6417019886930 |
| Technical | |
| Connection Configuration | Connection type 1 |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Degree of Protection | Front IP00 |
| Handle Color | Black |
| Handle Length | 274 mm |
| 10.8 in | |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 600 cycle |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current AC-20B | (1000 V AC) 1600 A |
| Rated Operational Current DC-20B | (1500 V DC) 1600 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 36 kA |
| for 0.3 s 50 kA | |
| Rated Voltage (Ur) | 1500 V |
| Shaft Diameter | 12 mm |
| 0.47 in | |
| Shaft Length | 280 mm |
| 11.0 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 02 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| 1.97 in | |
| Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| CCC Certificate | 2023980302000100 |
| Declaration of Conformity - CE | 1SCC301229D2701 |
| DNV GL Certificate | 1SCC301184D0204 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Number of poles (EF001391) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP00 |
