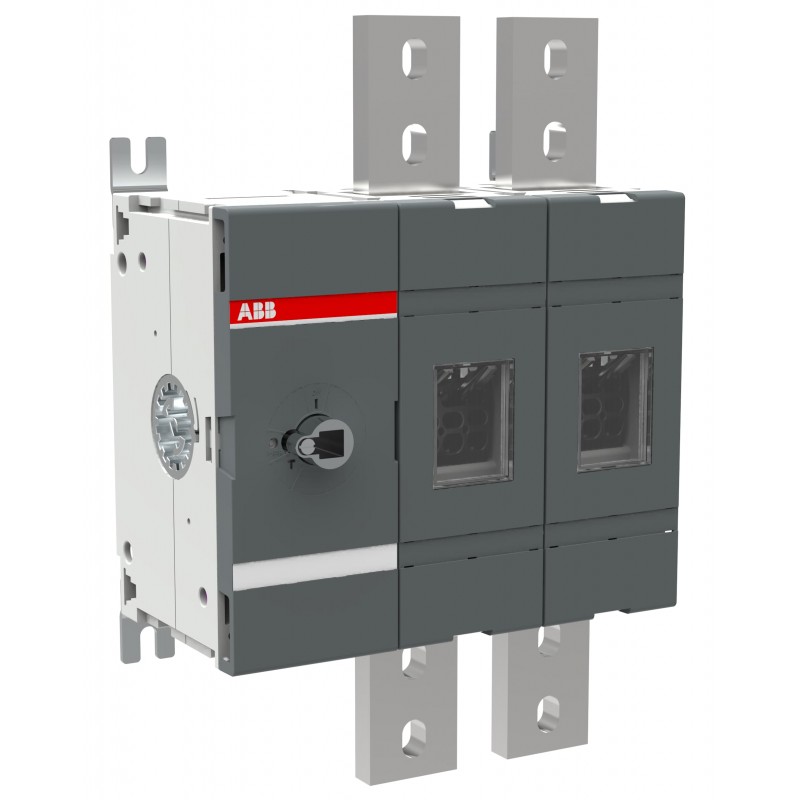

1SCA159244R1001 ABB Int. Disconnector DC-20 OT1600E02-135
1SCA159244R1001
ABB
Int. Disconnector DC-20 OT1600E02-135
Base mounting 2-pole, front operated disconnector up to 1500Vdc, 1600 Amperes with Connection Type 1, Utilization category DC-20B, handle and shaft not included, lug terminal , bolt kit included
Manual Switches
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲More info
▲- Extended Product Type:
- OT1600E02-135
- Product ID:
- 1SCA159244R1001
- EAN:
- 6417019886916
- Catalog Description:
- OT1600E02-135 Disconnector
- Long Description:
- Base mounting 2-pole, front operated disconnector up to 1500Vdc, 1600 Amperes with Connection Type 1, Utilization category DC-20B, handle and shaft not included, lug terminal , bolt kit included
Circular Value
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108467A5658
- End of Life Instructions:
- 1SCC301120M0201
- Environmental Information:
- 1SCC301233D0201
- Environmental Product Declaration - EPD:
- 1SCC301300D0201
- REACH Declaration:
- 1SCC301240D0201
- RoHS Information:
- 1SCC301239D0201
- Toxic Substances Control Act - TSCA:
- 1SCC011025D0201
Eco Transparency
- Environmental Product Declaration - EPD:
- 1SCC301300D0201
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85353010
- Country of Origin:
- Finland (FI)
China (CN)
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301023C0201
- Instructions and Manuals:
- 1SCC301104M0201
- Environmental Product Declaration - EPD:
- 1SCC301300D0201
- End of Life Instructions:
- 1SCC301120M0201
Dimensions
- Product Frame Size:
- OT1600-135
- Product Net Width:
- 254.5mm
10.0 in
- Product Net Height:
- 372mm
14.6 in
- Product Net Depth / Length:
- 148.5mm
5.9 in
- Product Net Weight:
- 11.9kg
26.2 lb
Technical
- Connection Configuration:
- Connection type 1
- Rated Operational Current DC-20B:
- (1500 V DC) 1600 A
- Rated Operational Current AC-20B:
- (1000 V AC) 1600 A
- Conventional Free-air Thermal Current (Ith):
- Θ = 40 °C 1600 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 1600 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 0.3 s 36 kA
for 0.3 s 50 kA
- Power Loss:
- at Rated Operating Conditions per Pole 48 W
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Shaft Diameter:
- 12 mm
0.47 in
- Shaft Length:
- 280 mm
11.0 in
- Switches Operating Mechanism:
- Mechanism at the End of the Switch
02 (Left Side)
- Position of Line Terminals:
- Top In - Bottom Out
Bottom In - Top Out
- Operating Mode:
- Front Operated
- Standards:
- IEC 60947-1, -3
- Special Functions:
- No
- Mounting Type:
- Base mounting
- Number of Poles:
- 2
- Degree of Protection:
- Front IP00
- Terminal Type:
- Lug terminals
- Terminal Width:
- 50 mm
1.97 in
- Mechanical Durability:
- 6000 cycle
- Lock Type:
- No
- Utilization:
- Energy Storage System (ESS)
- Utilization Category:
- Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B)
Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Environmental Information:
- 1SCC301233D0201
- Toxic Substances Control Act - TSCA:
- 1SCC011025D0201
Certificates and Declarations
- CCC Certificate:
- 2023980302000100
- Declaration of Conformity - CE:
- 1SCC301229D2701
- DNV GL Certificate:
- 1SCC301184D0204
- REACH Declaration:
- 1SCC301240D0201
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 400 mm
15.7 in
- Package Level 1 Depth / Length:
- 435 mm
17.1 in
- Package Level 1 Height:
- 170 mm
6.7 in
- Package Level 1 Gross Weight:
- 13.2 kg
29.2 lb
- Package Level 1 EAN:
- 6417019886916
Classifications
- Object Classification Code:
- Q
- ETIM 7:
- EC000216 - Switch disconnector
- ETIM 8:
- EC000216 - Switch disconnector
- ETIM 9:
- EC000216 - Switch disconnector (low voltage)
- eClass:
- V11.1 : 27371403
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
