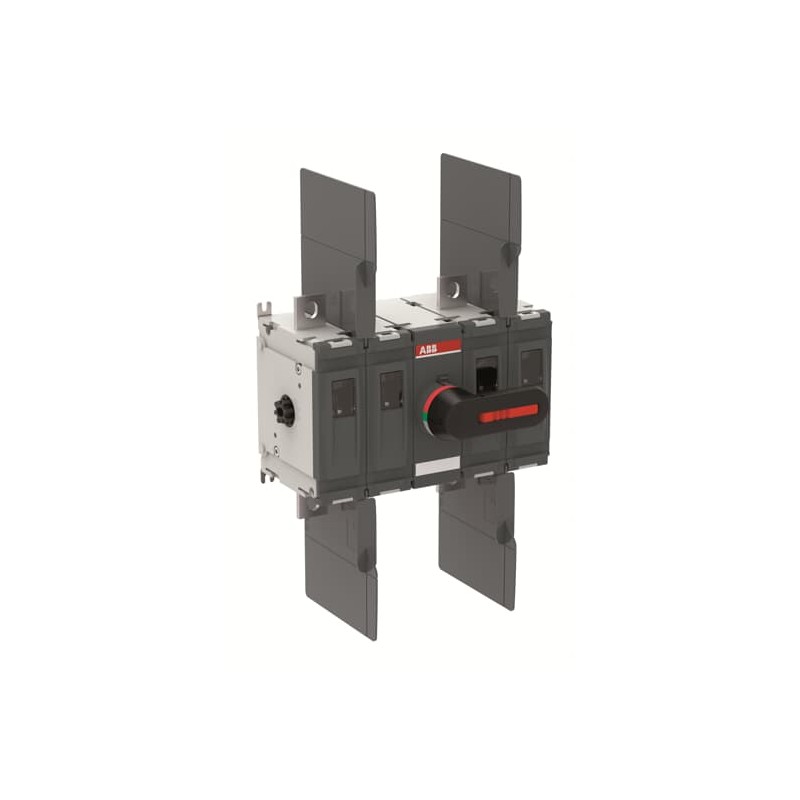

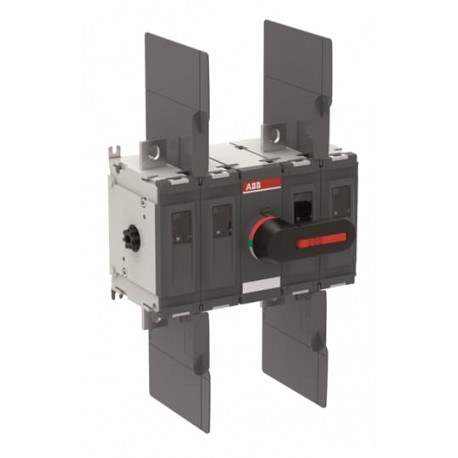

1SCA158317R1001 ABB DC OTDC400UFV22K disconnector switch
1SCA158317R1001
ABB
DC OTDC400UFV22K disconnector switch
A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to UL98B and IEC 60947-1,-3
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OTDC400UFV22K
1SCA158317R1001
6417019874227
OTDC400UFV22K PV Disconnect Switch
A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions.The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics of this particular OTDC type:Disconnect double PV circuit, Approved according to UL98B and IEC 60947-1,-3
Ordering
1 piece
85353010
Finland (FI)
Popular Downloads
Dimensions
M
255.5 mm
10.1 in
211 mm
8.3 in
169.5 mm
6.7 in
8 kg
17.7 lb
Technical
Double circuit 4a, 4c
(1500 V) 500 A
(1500 V) 400 A
(1500 V) 500 A
(1500 V) 400 A
500 A
Fully Enclosed 500 A
12 kV
1500 V
1500 V
(1500 V DC) 10 kA
(1500 V DC) 10 kA
for 1 s 10 kA
Circuit breaker
at Rated Operating Conditions per Pole 20 W
3
Black
145 mm
5.7 in
Direct mounted handle
12 mm
0.47 in
160 mm
6.3 in
Mechanism Between the Poles
22 (Between the Poles)
Top In - Bottom Out
Bottom In - Top Out
Front Operated
UL98B and IEC 60947-1, -3
No
Base mounting
2
4
Front IP20
Lug terminals
30 mm
1.2 in
Cable Lug 30…40 N·m
10000 cycle
Technical UL/CSA
1500 V DC
1500VDC 400 A
Cable Lug 30…44 N·m
Cable Lug 266…390 lbf·in
Environmental
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Container Information
box 1 piece
270 mm
10.6 in
310 mm
12.2 in
200 mm
7.9 in
8.3 kg
18.3 lb
6417019874227
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
39122233
5. Small Equipment (No External Dimension More Than 50 cm)
