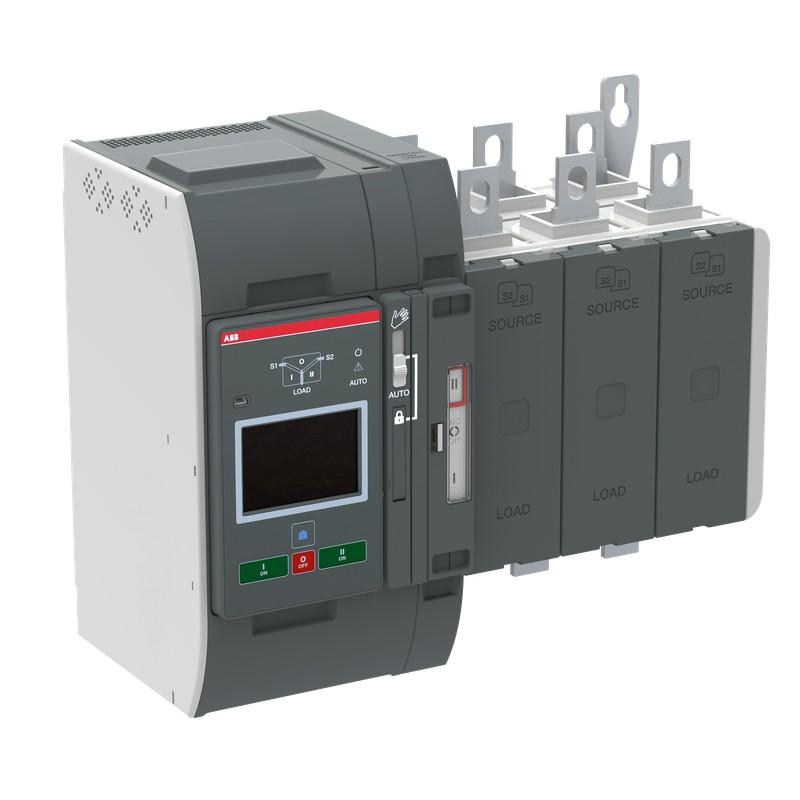

1SCA153524R1001 ABB Int. TruONE ATS Switch OXB400E3X4QT
1SCA153524R1001
ABB
Int. TruONE ATS Switch OXB400E3X4QT
Int. Switch TruONE ATS OXB400E3X4QT
OXB400E3X4QT AUTOMATIC TRANSFER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OXB400E3X4QT
- Product ID:
- 1SCA153524R1001
- EAN:
- 6417019845500
- Catalog Description:
- OXB400E3X4QT AUTOMATIC TRANSFER SWITCH
- Long Description:
- The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.
Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.
Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.
Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.
Every TruONE features a wide voltage range from 200 to 480 VAC (with +/-20% tolerance), reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.
Main characteristics of this particular TruONE type:
Open style ATS, delayed transition type I-O-II operation, Level 4 controller (Touch)
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC303008C0201
- Instructions and Manuals:
- 1SCC303011M0201
- Wiring Diagram:
- Circuit diagram_OXB_T_.dxf
Circuit diagram_OXB_T_.pdf
Dimensions
- Product Net Width:
- 390mm
15.35 in
- Product Net Height:
- 305mm
12.01 in
- Product Net Depth / Length:
- 183mm
7.2 in
- Product Net Weight:
- 15.63kg
34.46 lb
Technical
- Rated Operational Current AC-31B (Ie):
- (200 … 415 V AC) 400 A
- Rated Operational Current AC-32B (Ie):
- (200 … 415 V AC) 400 A
- Rated Operational Current AC-33B (Ie):
- (200 … 415 V AC) 400 A
- Conventional Free-air Thermal Current (Ith):
- q = 40 °C 400 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- Main Circuit 200 ... 480 V AC
- Rated Frequency (f):
- Main Circuit 50-60 Hz
- Rated Short-time Withstand Current (Icw):
- for 0.3 s 25 kiloampere rms
- Pollution Degree:
- 3
- Handle Type:
- Direct mounted handle
- Position of Line Terminals:
- Supplies on Top - Load on Bottom
- Controller Type:
- Level 4 (Touch)
- Special Functions:
- Open style
- Number of Poles:
- 3
- Degree of Protection:
- Front IP20
- Terminal Type:
- Bolt
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC303064D2701
- Instructions and Manuals:
- 1SCC303011M0201
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 345 mm
13.58 in
- Package Level 1 Depth / Length:
- 445 mm
17.52 in
- Package Level 1 Height:
- 240 mm
9.45 in
- Package Level 1 Gross Weight:
- 16.33 kg
36 lb
- Package Level 1 EAN:
- 6417019845500
Classifications
- ETIM 6:
- EC000216 - Switch disconnector
- ETIM 7:
- EC000216 - Switch disconnector
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 480 V |
| Rated short-time withstand current lcw (EF007050) | 25 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | Yes |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
