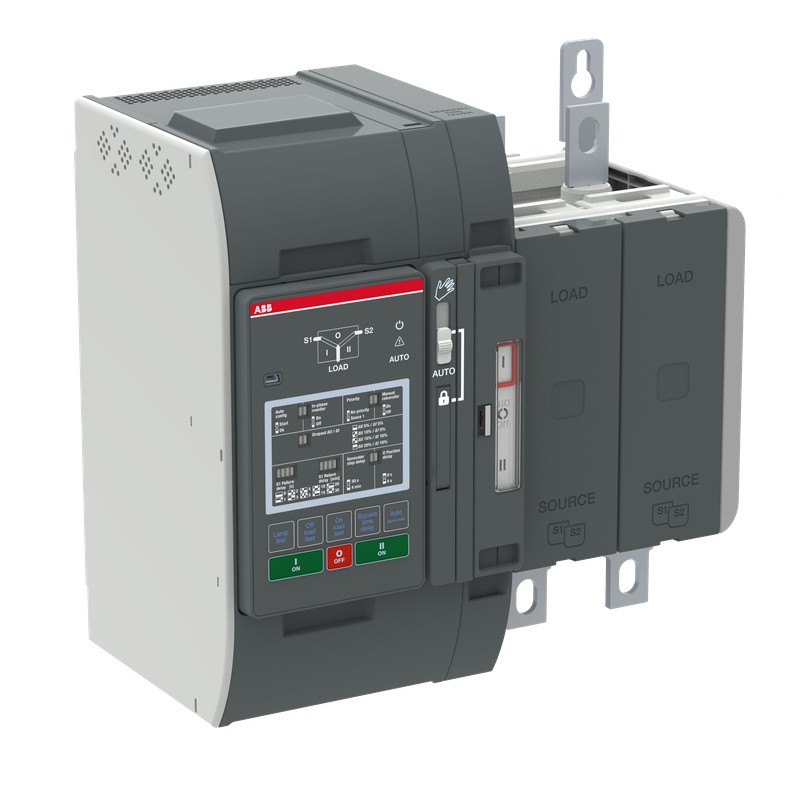

1SCA153497R1001 ABB Int. TruONE ATS Switch OXB315E1S2QB
1SCA153497R1001
ABB
Int. TruONE ATS Switch OXB315E1S2QB
Int. Switch TruONE ATS OXB315E1S2QB
OXB315E1S2QB AUTOMATIC TRANSFER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC303063M0201 |
| Environmental Product Declaration - EPD | 1SCC303129D0201 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 65.3 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011022D0201 |
| RoHS Declaration | 1SCC011023D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC303119D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303008C0201 |
| Instructions and Manuals | 1SCC303011M0201 REVISION FW 2.05 |
| Mechanical Drawings | OX_260-400E_1S2_B_ |
| 1SCC308283F0001 | |
| 1SCC308282F0001 | |
| 1SCC308281F0001 | |
| 1SCC308280F0001 | |
| 1SCC308329F0001 | |
| 1SCC308328F0001 | |
| Wiring Diagram | Circuit diagram_OXB_B_.dxf |
| Circuit diagram_OXB_B_.pdf | |
| Environmental Product Declaration - EPD | 1SCC303129D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Dimensions | |
| Product Net Width | 325 mm |
| 12.8 in | |
| Product Net Height | 305 mm |
| 12.01 in | |
| Product Net Depth / Length | 183 mm |
| 7.2 in | |
| Product Net Weight | 13.34 kg |
| 29.41 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 345 mm |
| 13.58 in | |
| Package Level 1 Depth / Length | 445 mm |
| 17.52 in | |
| Package Level 1 Height | 240 mm |
| 9.45 in | |
| Package Level 1 Gross Weight | 14.04 kg |
| 30.95 lb | |
| Package Level 1 EAN | 6417019845234 |
| Technical | |
| Controller Type | Level 2 (DIP) |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
| Degree of Protection | Front IP20 |
| Handle Type | Direct mounted handle |
| Number of Poles | 2P |
| Pollution Degree | 3 |
| Position of Line Terminals | Supplies on Bottom - Load on Top |
| Power Loss | at Rated Operating Conditions per Pole 12.1 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 240 V AC) 315 A |
| Rated Operational Current AC-32B (Ie) | (200 … 240 V AC) 315 A |
| Rated Operational Current AC-33B (Ie) | (200 … 240 V AC) 315 A |
| Rated Operational Voltage | Main Circuit 200...240 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 18 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303064D2701 |
| EU Data Act Compliance Declaration | 9AKK108471A5903 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA153497R1001 1SCA153497R1001 EN_1SCA153497R1001.pdf | 368 Kbytes |
|
