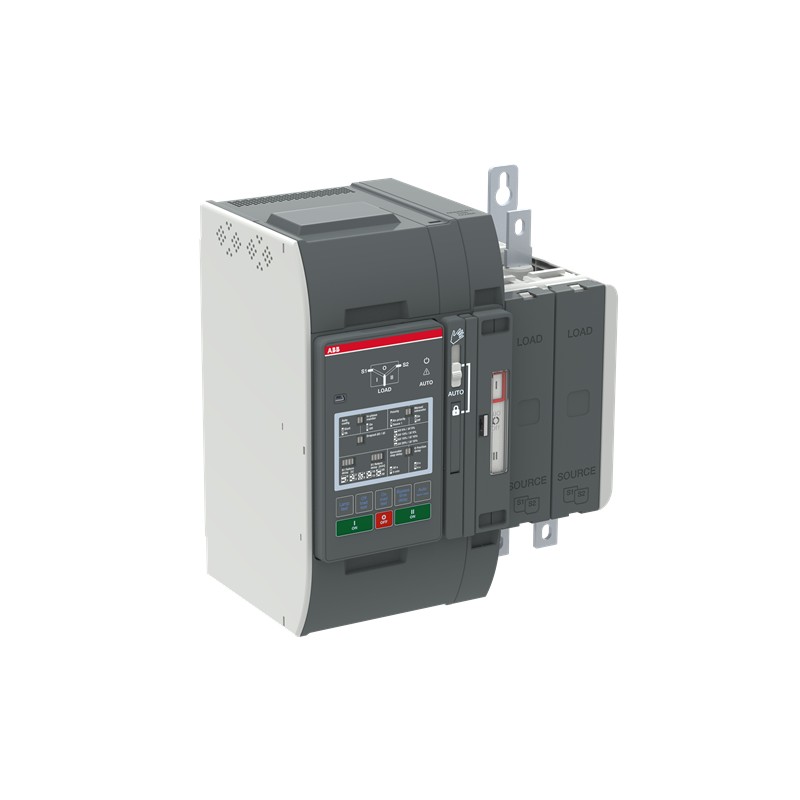

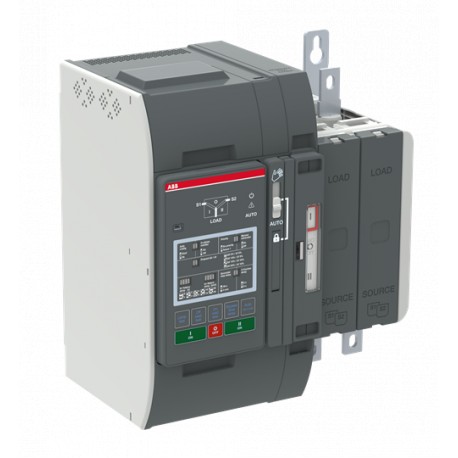

1SCA153452R1001 ABB Int. TruONE ATS Switch OXB250E1S2QB
1SCA153452R1001
ABB
Int. TruONE ATS Switch OXB250E1S2QB
Int. Switch TruONE ATS OXB250E1S2QB
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.Every TruONE features a wide voltage range, reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.Main characteristics of this particular TruONE type:Open style ATS, delayed transition type I-O-II operation, Level 2 controller (DIP)
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OXB250E1S2QB
1SCA153452R1001
6417019844787
OXB250E1S2QB AUTOMATIC TRANSFER SWITCH
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.Every TruONE features a wide voltage range, reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.Main characteristics of this particular TruONE type:Open style ATS, delayed transition type I-O-II operation, Level 2 controller (DIP)
Ordering
1 piece
85365080
Finland (FI)
Popular Downloads
Dimensions
285 mm
11.22 in
305 mm
12.01 in
183 mm
7.2 in
12.36 kg
27.25 lb
Technical
(200 … 240 V AC) 250 A
(200 … 240 V AC) 250 A
(200 … 240 V AC) 250 A
q = 40 °C 250 A
8 kV
1000 V
Main Circuit 200 ... 240 V AC
Main Circuit 50-60 Hz
for 0.3 s 12 kiloampere rms
3
Direct mounted handle
Supplies on Bottom - Load on Top
IEC60947-6-1
Level 2 (DIP)
Open style
2
Front IP20
Bolt
Certificates and Declarations (Document Number)
Container Information
box 1 piece
345 mm
13.58 in
445 mm
17.52 in
240 mm
9.45 in
13.06 kg
28.79 lb
6417019844787
Classifications
EC000216 - Switch disconnector
EC000216 - Switch disconnector
5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA153452R1001 1SCA153452R1001 EN_1SCA153452R1001.pdf | 342 Kbytes |
|
