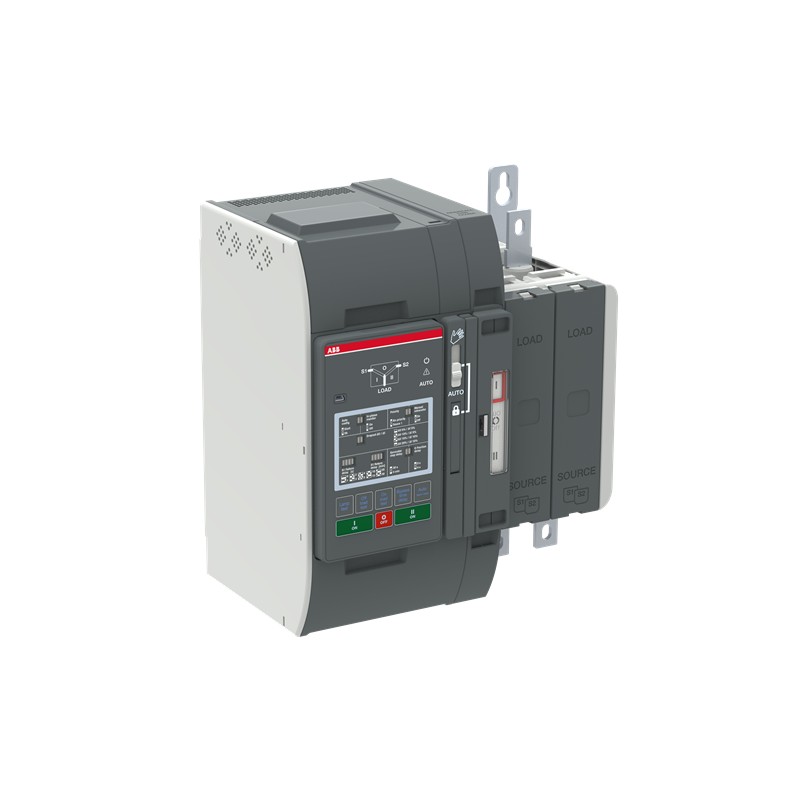

ABB 1SCA153423R1001 1SCA153423R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

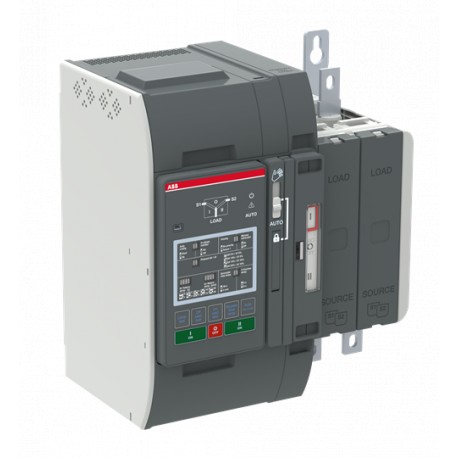

1SCA153423R1001 ABB Int. TruONE ATS Switch OXB200E1S2QB

Reference: 1SCA153423R1001

Manufacturer: ABB

Description:

Int. TruONE ATS Switch OXB200E1S2QB

Int. Switch TruONE ATS OXB200E1S2QB

OXB200E1S2QB AUTOMATIC TRANSFER SWITCH

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 2.233,86 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	1SCC303063M0201
Environmental Product Declaration - EPD	1SCC303127D0201
Extended Product Lifetime	Product Modularity
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 67.3 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011022D0201
RoHS Declaration	1SCC011023D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information	1SCC303008C0201
Instructions and Manuals	1SCC303011M0201 REVISION FW 2.05
Mechanical Drawings	OX_30U-250_1S2_B_
	1SCC308233F0001
	1SCC308232F0001
	1SCC308169F0001
	1SCC308168F0001
	1SCC308329F0001
	1SCC308328F0001
Wiring Diagram	Circuit diagram_OXB_B_.dxf
	Circuit diagram_OXB_B_.pdf
Environmental Product Declaration - EPD	1SCC303127D0201
Environmental
Degree of Protection	Front IP20
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Dimensions
Product Net Width	285 mm
	11.22 in
Product Net Height	305 mm
	12.01 in
Product Net Depth / Length	183 mm
	7.2 in
Product Net Weight	12.36 kg
	27.25 lb
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	345 mm
	13.58 in
Package Level 1 Depth / Length	445 mm
	17.52 in
Package Level 1 Height	240 mm
	9.45 in
Package Level 1 Gross Weight	13.06 kg
	28.79 lb
Package Level 1 EAN	6417019844497
Technical
Controller Type	Level 2 (DIP)
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 200 A
Degree of Protection	Front IP20
Handle Type	Direct mounted handle
Number of Poles	2P
Pollution Degree	3
Position of Line Terminals	Supplies on Bottom - Load on Top
Power Loss	at Rated Operating Conditions per Pole 5.8 W
Rated Frequency (f)	Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current AC-31B (I_e)	(200 … 240 V AC) 200 A
Rated Operational Current AC-32B (I_e)	(200 … 240 V AC) 200 A
Rated Operational Current AC-33B (I_e)	(200 … 240 V AC) 200 A
Rated Operational Voltage	Main Circuit 200...240 V AC
Rated Short-time Withstand Current Low Voltage (I_cw)	for 0.3 s 12 kiloampere rms
Special Functions	Open style
Standards	IEC60947-6-1
Terminal Type	Bolt
Transition Type	Delayed
Certificates and Declarations
Declaration of Conformity - CE	1SCC303064D2701
EU Data Act Compliance Declaration	9AKK108471A5903
External Classifications and Standards
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

DATASHEET - PDF

Title

Size

Type

1SCA153423R1001 1SCA153423R1001 EN_1SCA153423R1001.pdf

341 Kbytes

PDF CATALOG TRANSFER SWITCHES 2023 EN

42 Mbytes
