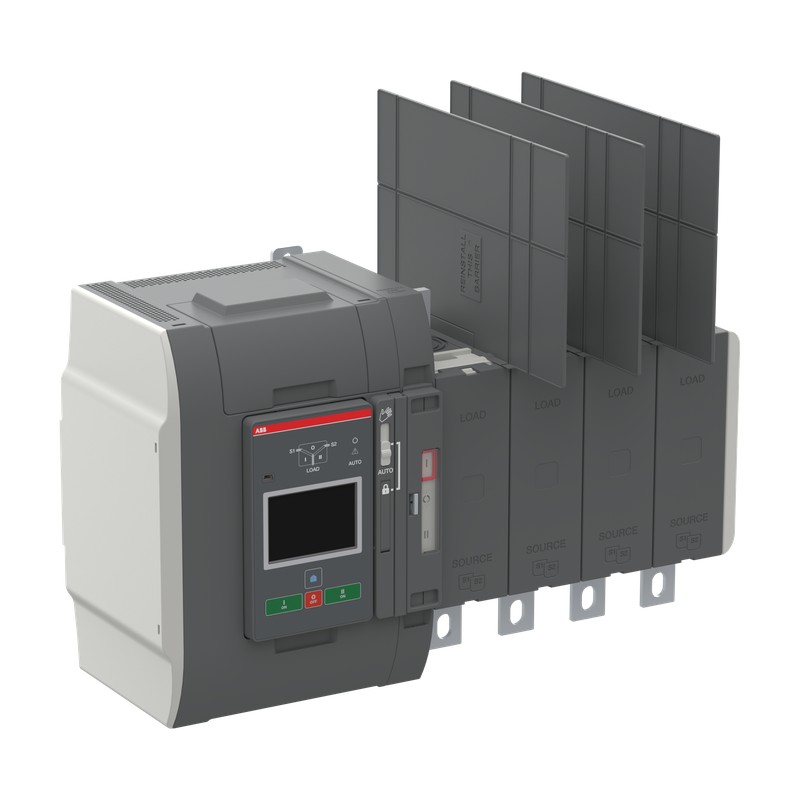

1SCA151060R1001 ABB Int. TruONE ATS Switch OXB630E3S4QB
1SCA151060R1001
ABB
Int. TruONE ATS Switch OXB630E3S4QB
Int. Switch TruONE ATS OXB630E3S4QB
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.Every TruONE features a wide voltage range from 200 to 480 VAC (with +/-20% tolerance), reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.Main characteristics of this particular TruONE type:Open style ATS, delayed transition type I-O-II operation, Level 4 controller (Touch)
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OXB630E3S4QB
1SCA151060R1001
6417019813172
OXB630E3S4QB AUTOMATIC TRANSFER SWITCH
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.Every TruONE features a wide voltage range from 200 to 480 VAC (with +/-20% tolerance), reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.Main characteristics of this particular TruONE type:Open style ATS, delayed transition type I-O-II operation, Level 4 controller (Touch)
Ordering
1 piece
85365080
Finland (FI)
Popular Downloads
Dimensions
512 mm
20.16 in
313 mm
12.32 in
212 mm
8.35 in
21.6 kg
47.62 lb
Technical
(200 … 415 V AC) 630 A
(200 … 415 V AC) 630 A
(200 … 415 V AC) 630 A
q = 40 °C 630 A
12 kV
1000 V
Main Circuit 200 ... 480 V AC
Main Circuit 50-60 Hz
for 0.1 s 42 kiloampere rms
3
Direct mounted handle
Left and Right Side
Switched - Simultaneous Function
Supplies on Bottom - Load on Top
IEC60947-6-1
Level 4 (Touch)
Open style
4
Front IP20
Bolt
Certificates and Declarations (Document Number)
Container Information
box 1 piece
345 mm
13.58 in
565 mm
22.24 in
240 mm
9.45 in
22.4 kg
49.38 lb
6417019813172
Classifications
EC000216 - Switch disconnector
EC000216 - Switch disconnector
4. Large Equipment (Any External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 480 V |
| Rated short-time withstand current lcw (EF007050) | 42 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | Yes |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA151060R1001 1SCA151060R1001 EN_1SCA151060R1001.pdf | 336 Kbytes |
|
