ABBManual Switches1SCA150929R1001 ABB Int. TruONE ATS Switch OXB800E1S2QB

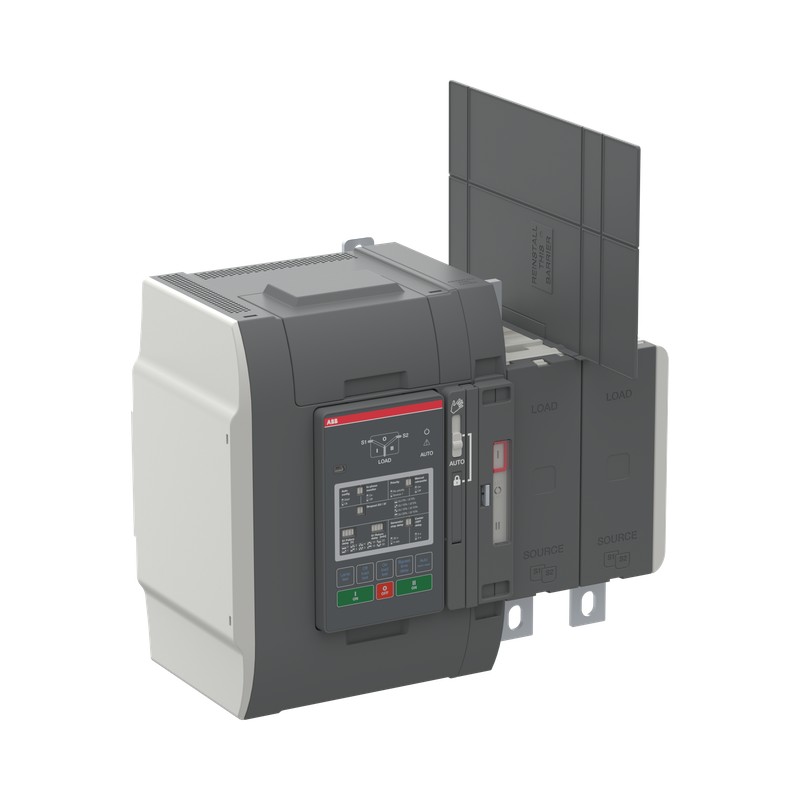

ABB 1SCA150929R1001 1SCA150929R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA150929R1001 ABB Int. TruONE ATS Switch OXB800E1S2QB

Reference: 1SCA150929R1001

Manufacturer: ABB

Description:

Int. TruONE ATS Switch OXB800E1S2QB
Int. Switch TruONE ATS OXB800E1S2QB
OXB800E1S2QB AUTOMATIC TRANSFER SWITCH

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 5.054,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303064M0201
Environmental Product Declaration - EPD1SCC303131D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 70.2 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201 REVISION FW 2.05
Mechanical DrawingsOX_500-800E_1S2_B_.stp
1SCC308251F0001
1SCC308250F0001
1SCC308175F0001
1SCC308174F0001
1SCC308329F0001
1SCC308328F0001
Wiring DiagramCircuit diagram_OXB_B_.dxf
Circuit diagram_OXB_B_.pdf
Environmental Product Declaration - EPD1SCC303131D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width382 mm
15.04 in
Product Net Height313 mm
12.32 in
Product Net Depth / Length212 mm
8.35 in
Product Net Weight16.88 kg
37.21 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length445 mm
17.52 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight17.58 kg
38.76 lb
Package Level 1 EAN6417019811451
Technical
Controller TypeLevel 2 (DIP)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 800 A
Degree of ProtectionFront IP20
Handle TypeDirect mounted handle
Number of Poles2P
Pollution Degree3
Position of Line TerminalsSupplies on Bottom - Load on Top
Power Lossat Rated Operating Conditions per Pole 47 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 240 V AC) 800 A
Rated Operational Current AC-32B (Ie)(200 … 240 V AC) 800 A
Rated Operational Current AC-33B (Ie)(200 … 240 V AC) 800 A
Rated Operational VoltageMain Circuit 200...240 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.3 s 18 kiloampere rms
Special FunctionsOpen style
StandardsIEC60947-6-1
Terminal TypeBolt
Transition TypeDelayed
Certificates and Declarations
Declaration of Conformity - CE1SCC303062D2701
EU Data Act Compliance Declaration9AKK108471A5903
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA150929R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value240 V
Feature nameRated short-time withstand current lcw (EF007050)
Feature value18 kA
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueYes
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device plug-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueYes
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1
