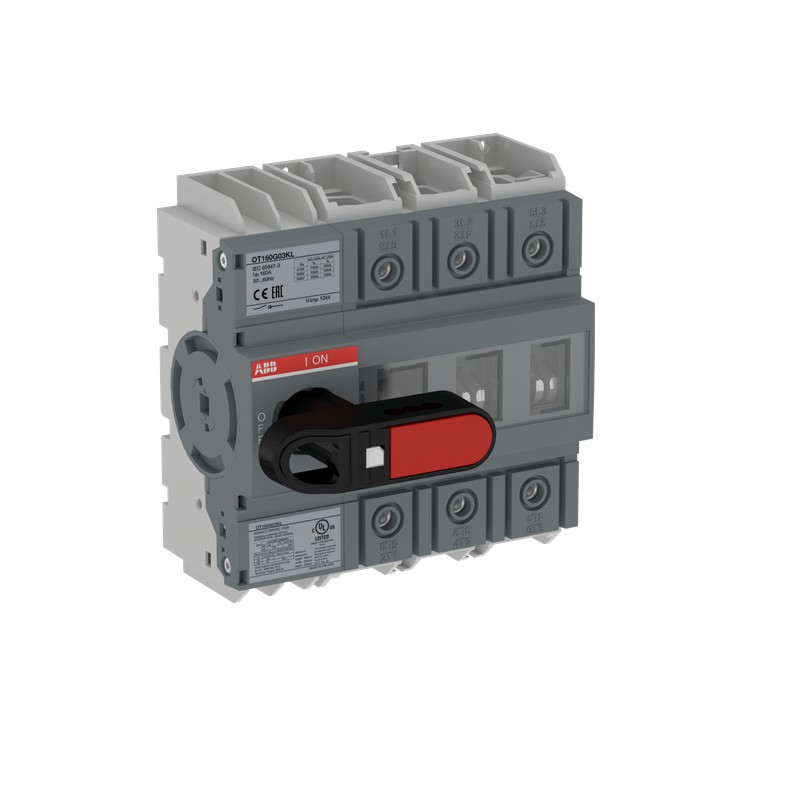

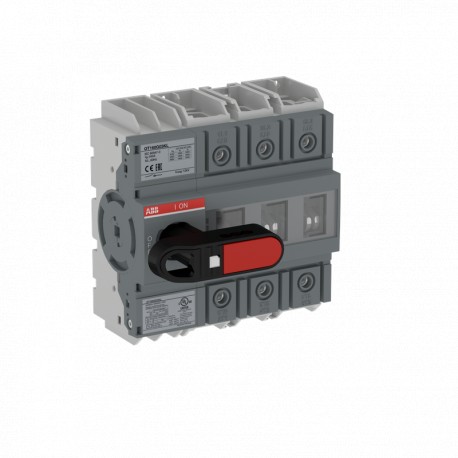

1SCA150028R1001 ABB OT160G03KL Disconnector Switch
1SCA150028R1001
ABB
OT160G03KL Disconnector Switch
OT160G03KL SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301116M0201 |
| Environmental Information | 1SCC301267D0201 |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0489f327-b595-4df3-9792-66445bbd404f Finland |
| Simplified SCIP | c5295818-7f84-47a7-b591-d3b6f66bd225 Germany |
| 002c881a-c1c9-4143-909b-1dd47d379858 Sweden | |
| 8e704c19-c27c-4757-a976-fc63a2614235 Germany | |
| 9c05025b-2325-4718-a7be-af1560a6745a Germany | |
| 649f8674-44dc-46eb-8709-cfa6635ee012 Poland | |
| e3bff424-0d0e-4304-bece-d01bb1625b8c Czech Republic | |
| f61a555f-6651-4ef6-a601-eeb55fbbcf87 Greece | |
| af4f9bd1-26cd-483f-a9b3-0bb165388e52 Croatia | |
| 98bb2603-9e78-4745-b131-45d900da7ea2 Portugal | |
| aa141de4-3c43-4289-a124-2a50fd68e7aa Bulgaria | |
| 3a8c410a-c267-4943-8295-31642ea37e1e Sweden | |
| a3092ddb-47b0-477a-9b50-48292af5677f Estonia | |
| e58fcbdf-b974-4589-9fd3-c3253399f7e3 Hungary | |
| e408d0a2-c02a-42dd-a8d2-701aa8ebd73c Poland | |
| bfc64da6-2e00-4265-94a4-e20b06380960 Netherlands | |
| ba16e612-9096-447e-9187-5c762318effc France | |
| 5edd575f-b101-4d79-b1df-75a9b0005ee5 Poland | |
| af966162-a175-4a36-89a3-2f5792347ceb Italy | |
| 3f061bf3-5239-47bf-82c1-2b9c1d8948c6 Germany | |
| e6bded08-eb9c-4cb8-93c0-11a27dc184c5 Belgium | |
| fb52ba5d-5729-4399-a51a-ff7710168d04 Germany | |
| a883acd5-4e2a-49ca-be60-469941f22356 Denmark | |
| 8dabe47d-8cc5-47e4-9145-df6749913f44 Norway | |
| bbedfa39-f412-4613-87a9-3761ef5c7a74 Belgium | |
| 236dac73-d1f9-4b08-9f81-ad428eee57b4 Spain | |
| 5d88d74c-37c9-4be1-9a7a-db09dcc38775 Hungary | |
| 8092f0c3-40da-4614-9f0f-0238da6cdeed France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301089M0204 |
| Mechanical Drawings | OT160G03KL_igs |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 123 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.8 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length | 244 mm |
| 9.6 in | |
| Package Level 1 Height | 96 mm |
| 3.8 in | |
| Package Level 1 Gross Weight | 0.9 kg |
| 2 lb | |
| Package Level 1 EAN | 6417019801087 |
| Technical | |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Handle Color | Black |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA |
| (200 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (690 V) 160 A |
| (690 V) 380415V;160 A | |
| (690 V) 500V;160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 ... 415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp |
| (440 ... 480 V AC) Single Phase 30 Hp | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301336D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301210D2701 |
| UL Certificate | cULus certificate OT160G |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
