ABBManual Switches1SCA148655R1001 ABB Switch sect. in OT160EVFCC3A box
ABB 1SCA148655R1001 1SCA148655R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA148655R1001 ABB Switch sect. in OT160EVFCC3A box

Reference: 1SCA148655R1001

Manufacturer: ABB

Description:

Switch sect. in OT160EVFCC3A box

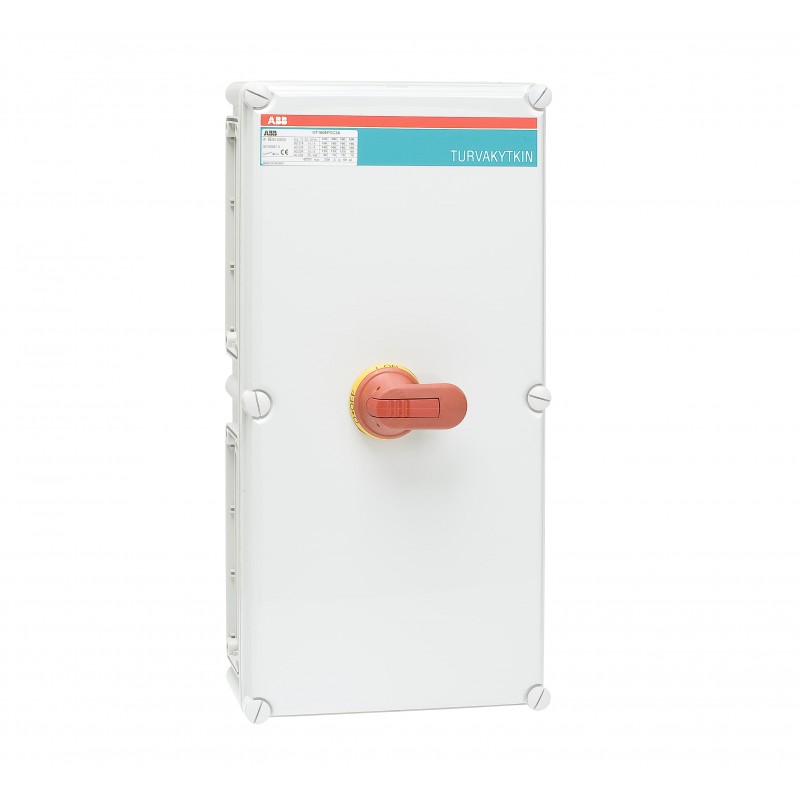

Boxed disconnector switch OT160EVFCC3A
OT160EVFCC3A Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 620,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP623ddb6b-41d7-43d2-a086-3429eb9f1b2f Finland
Simplified SCIPc957df4b-9cb5-43f8-ae3e-2b31d87b69fc Germany
10cab6f2-d69b-4a1f-98d6-db80d86dabc1 Denmark
bef5669c-ae3f-47a8-8ab4-5c666a0e3263 Poland
0dc73ccf-32e2-48f0-b441-56f1f8d28fec Greece
056d3b4b-487d-4181-b3af-d29d742b8804 Portugal
14d4f096-01c8-4f2d-a606-e92c5414d69e Poland
d1d1a174-239b-4ec4-8b9b-897cab2d8f26 Netherlands
ebbbb8d0-8f62-4088-a2c7-8ee897442f92 France
53bbc9d1-855d-4a68-a693-f4013fc8f209 Poland
a806e890-4de2-422b-a8c2-05a986e231e5 Spain
e397314e-7cec-4c40-af4d-591b5fabd0b6 France
287d19d2-b3fb-43ff-89fe-5fdf07cda012 Croatia
9e14401f-7bf2-4983-98b0-6e47ee2c8d75 Germany
0ce474da-6526-4d6a-ae92-a9a7e20e8721 Belgium
e257d677-18ab-4309-8330-a8764dda927d Germany
ac948480-5434-46fb-8ffd-2f195ce45ec1 Estonia
34a9c5a2-4397-4b8e-8600-1f7535d43574 Sweden
e8761d8a-a4d7-48f2-ada2-8a0ebabe9fb4 Germany
f3dabdd1-1577-409d-b349-90a734b122ee Hungary
5d58fde5-79e4-4fab-bd71-247428b79393 Germany
07cd21e1-3ac6-47da-beed-2ebd970f08dc Norway
480c226c-7912-44ad-8743-4b1ac2bf3cb4 Sweden
a0f55acd-5da0-4e61-8e1f-0f52825f6297 Hungary
3e917196-6e84-41e3-bcd8-c746857ac96c Czech Republic
dfc2115e-34a8-4632-8d0a-06d0a43bc376 Italy
c02bc50e-8644-469d-86b4-f922102c8048 Bulgaria
5678d154-8027-45bc-8c4e-24a3bc6e034e Belgium
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340015M0004
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width280 mm
Product Net Height560 mm
Product Net Depth / Length130 mm
Product Net Weight5.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight7.6 kg
Package Level 1 EAN6417019782058
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per SideII-flange / II-flange
ColorRAL7032..7035
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Enclosure TypeFibox
Handle ColorRed / Yellow
Handle TypePistol handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Neutral TypeNo Neutral Terminal
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 80 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
StandardsIEC 60947-1, -3
Terminal TypeBolt
Tightening TorqueMain Circuit 6 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340002D2703
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA148655R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value160 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value160 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value80 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value80 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueRed
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
