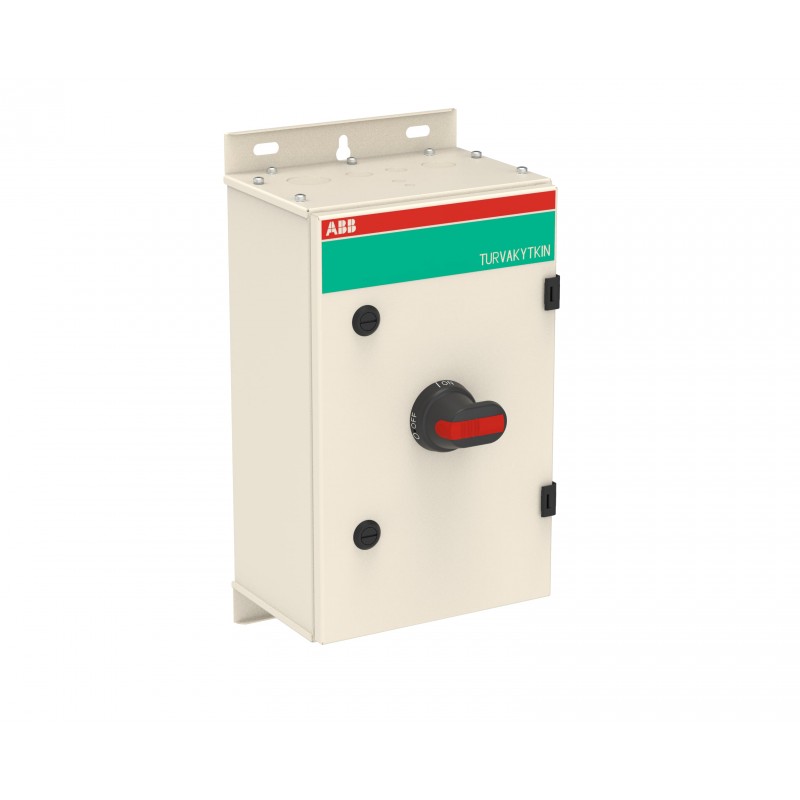

1SCA148268R1001 ABB Int. Box disconnector OT160EVLCC4BZ
1SCA148268R1001
ABB
Int. Box disconnector OT160EVLCC4BZ
Int. Disconnector in box OT160EVLCC4BZ
OT160EVLCC4BZ Encl. Switch Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c75cf6e0-bb27-46b5-a446-458dac5deace Finland |
| Simplified SCIP | 7461cf35-01e4-49c3-9028-e217c9a5bff7 Germany |
| 18a8d24b-0fbe-4f18-9d2e-630b974e19b7 Bulgaria | |
| 4f347c73-caeb-4559-9172-2957154de805 Portugal | |
| ee7e0fb2-4b0a-4bb1-9a0a-984e9d26f3a3 France | |
| 8f45ea73-df8f-4f82-bb21-cec8542e769d Hungary | |
| 1296e337-e9e4-4a71-a80d-4ee9768aaaaa Estonia | |
| 7c2886e3-9bda-4b9b-a008-26834f6b417d Denmark | |
| 617c1844-be11-46cf-b364-70fee5811fbf France | |
| a1bc01df-a70e-4eeb-9751-86718de350d2 Sweden | |
| 29a16a5b-6182-41ef-908c-ec43d8f06be8 Poland | |
| 2d8b5c21-0ccb-4239-b258-fefa938e0370 Italy | |
| 64b49645-d2ae-4b6f-996c-33d8509a9689 Belgium | |
| e4c651cd-1643-45a1-b9f1-bf870132b641 Germany | |
| 0889e21a-dd21-48d6-b59b-dd40325474d5 Poland | |
| ade5fedd-d551-465f-9abb-be2a45c93993 Hungary | |
| 1c51f140-9720-4f81-b1df-bbbc07533bea Netherlands | |
| 05812500-1feb-42e8-bcba-f9a233e84790 Norway | |
| 561bbaf4-24f7-48a2-90bb-9b05a6267cd2 Belgium | |
| 40505e0d-f69d-42ec-b8bb-c6f03d849acd Sweden | |
| 5d51b4e5-0c16-47d7-93d2-302348cacf52 Croatia | |
| cdfe8de5-17fd-417c-bc19-2c4e09d55b01 Germany | |
| 33f32eb4-3af0-4b51-b0d0-90dd27f64384 Poland | |
| 71524348-4529-4fa6-ad0e-0488d5023e85 Spain | |
| c2b6b2e7-9997-4c47-be9b-3f92c6a9dccb Germany | |
| 6c55155f-9012-4e00-ae7c-a26202aa5ca8 Czech Republic | |
| cf0c2f26-7cdc-4cb5-8c96-950edbfef65e Greece | |
| 94d02d08-35fc-4f2a-ba89-63d5c80c7086 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340005M0007 |
| Mechanical Drawings | OTKM402518PC.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 250 mm |
| Product Net Height | 400 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 10.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 11.7 kg |
| Package Level 1 EAN | 6417019776859 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | C-flange / C-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Enclosure Type | MSC |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 88 kW |
| Switching power at 400 V (EF009166) | 88 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
