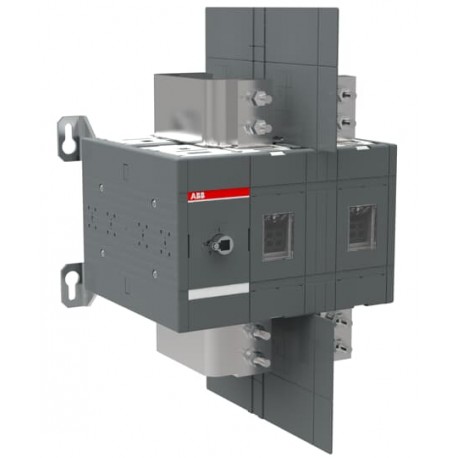

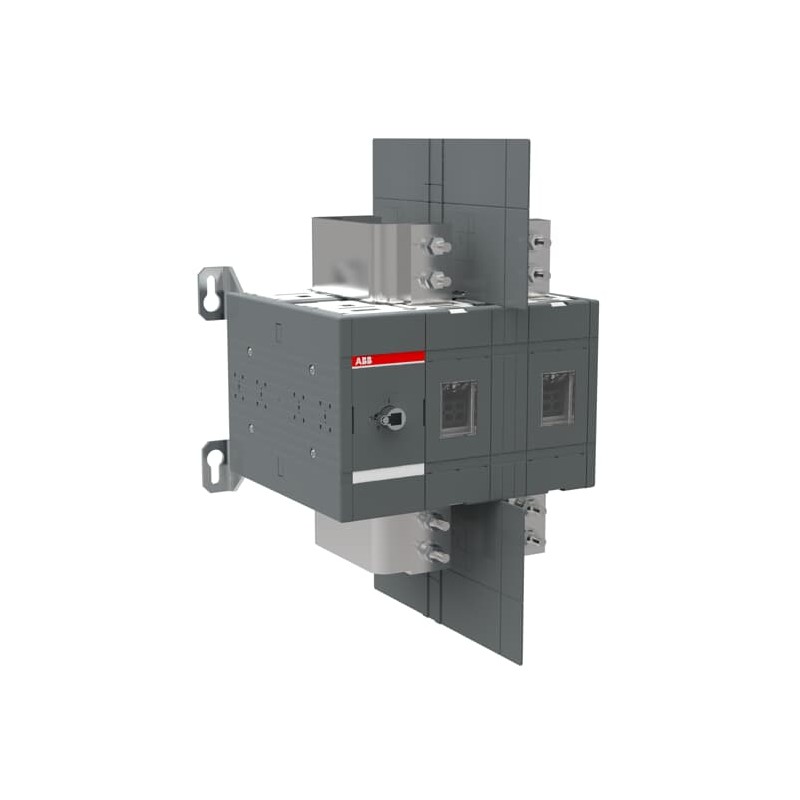

1SCA144203R1001 ABB OT2000U02 disconnector interurptor
1SCA144203R1001
ABB
OT2000U02 disconnector interurptor
Interurptor disconnector OT2000U02
OT2000U02 SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301094M0203 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 365 mm |
| Product Net Height | 546 mm |
| Product Net Depth / Length | 310 mm |
| Product Net Weight | 38.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 394 mm |
| Package Level 1 Depth / Length | 534 mm |
| Package Level 1 Height | 368 mm |
| Package Level 1 Gross Weight | 40.6 kg |
| Package Level 1 EAN | 6417019723570 |
| Technical | |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 2500 |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 96 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No |
| Standards | UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 02 (Left Side) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 56 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 2000 A |
| Tightening Torque | acc. IEC 60947-1 56 N·m |
| Tightening Torque UL/CSA | 500 in·lb |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| cUL Certificate | cULus certificate OT1600-2000 |
| UL Certificate | cULus certificate OT1600-2000 |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA144203R1001 1SCA144203R1001 EN_1SCA144203R1001.pdf | 83 Kbytes |
|
