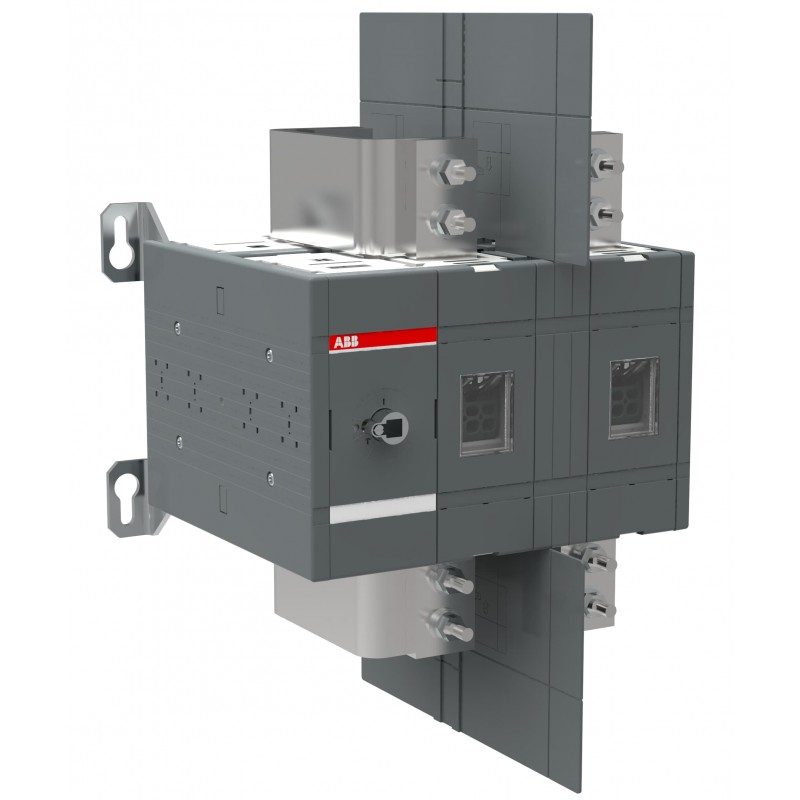

ABB 1SCA144197R1001 1SCA144197R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA144197R1001 ABB Disconnect switch OT1600U02

Reference: 1SCA144197R1001

Manufacturer: ABB

Description:

Disconnect switch OT1600U02
Switch disconnector OT1600U02
OT1600U02 SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 3.207,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301120M0201
Environmental Product Declaration - EPD1SCC301300D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301094M0203
Environmental Product Declaration - EPD1SCC301300D0201
Environmental
Degree of ProtectionFront IP00
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width365 mm
Product Net Height546 mm
Product Net Depth / Length335 mm
Product Net Weight38.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width394 mm
Package Level 1 Depth / Length534 mm
Package Level 1 Height368 mm
Package Level 1 Gross Weight40.6 kg
Package Level 1 EAN6417019723518
Technical
Conventional Thermal Current (Ithe)Fully Enclosed 1600 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle TypeHandle and shaft not included
Mechanical Durability2500
Mounting TypeBase mounting
Number of Poles2P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 96 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 50 kA
Special FunctionsNo
StandardsUL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism at the End of the Switch
02 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 56 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating1600 A
Tightening Torqueacc. IEC 60947-1 56 N·m
Tightening Torque UL/CSA500 in·lb
Certificates and Declarations
ATEX CertificateNo certification needed
cUL CertificatecULus certificate OT1600-2000
UL CertificatecULus certificate OT1600-2000
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA144197R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value1600 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value50 kA
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP00
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
