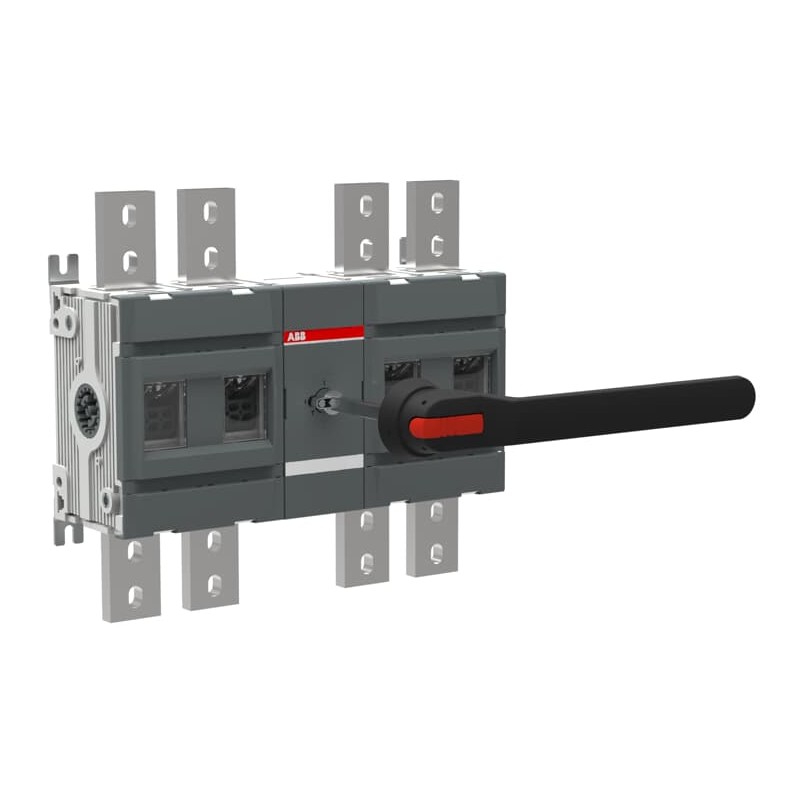

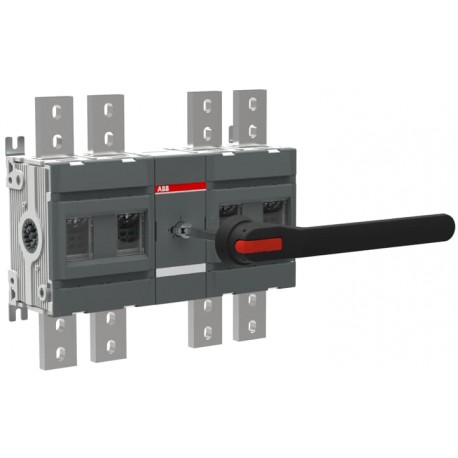

1SCA143720R1001 ABB Switch disconnector DC OTDC1600E22P
1SCA143720R1001
ABB
Switch disconnector DC OTDC1600E22P
OTDC1600E22P DC Switch-disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OTDC1600E22P
- Product ID:
- 1SCA143720R1001
- EAN:
- 6417019716619
- Catalog Description:
- OTDC1600E22P DC Switch-disconnector
- Long Description:
- OTDC1600E22P DC Switch-disconnector, IP65 protected & padlockable handle, adjustable shaft and terminal bolt kit included, Base mounting, IEC 1000 VDC 1600 A
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363090
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301022C0201
- Instructions and Manuals:
- 1SCC301095M0202
- Mechanical Drawings:
- OTDC800-1600_22_palikka.igs
1SCC307527F0201
1SCC307528F0201
- Wiring Diagram:
- 1SCC301042K0201
1SCC301043K0201
Dimensions
- Product Frame Size:
- L
- Product Net Width:
- 414.5mm
16.3 in
- Product Net Height:
- 372mm
14.6 in
- Product Net Depth / Length:
- 145.9mm
5.7 in
- Product Net Weight:
- 19.5kg
43 lb
Technical
- Connection Configuration:
- Single circuit 6a, 6b
- Rated Operational Current DC-21B (Ie):
- (1000 V) 1600 A
- Conventional Free-air Thermal Current (Ith):
- 1600 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 1250 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1000 V
- Rated Short-Circuit Making Capacity (Icm):
- (1000 V DC) 10 kA
- Rated Short-time Withstand Current (Icw):
- (1000 V DC) 10 kA
for 1 s 10 kA
- Power Loss:
- at Rated Operating Conditions per Pole 58 W
- Pollution Degree:
- 3
- Handle Color:
- Black
- Handle Length:
- 274 mm
10.8 in
- Handle Type:
- Pistol handle
- Shaft Diameter:
- 12 mm
0.47 in
- Shaft Length:
- 200 mm
7.9 in
- Switches Operating Mechanism:
- Mechanism Between the Poles
22 (Between the Poles)
- Position of Line Terminals:
- Top In - Bottom Out
Bottom In - Top Out
- Operating Mode:
- Front Operated
- Standards:
- IEC 60947-1, -3
- Special Functions:
- No
- Mounting Type:
- Base mounting
- Number of Circuits:
- 2
- Number of Poles:
- 4
- Degree of Protection:
- Front IP20
- Terminal Type:
- Lug terminals
- Terminal Width:
- 50 mm
1.97 in
- Tightening Torque:
- Cable Lug 50…75 N·m
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU
- Environmental Information:
- 1SCC301234D0201
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC301208D2702
- DNV GL Certificate:
- 1SCC301231D0201
- Environmental Information:
- 1SCC301234D0201
- Instructions and Manuals:
- 1SCC301095M0202
- RoHS Information:
- 1SCC301206D0205
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 400 mm
15.7 in
- Package Level 1 Depth / Length:
- 435 mm
17.1 in
- Package Level 1 Height:
- 170 mm
6.7 in
- Package Level 1 Gross Weight:
- 20.8 kg
45.9 lb
- Package Level 1 EAN:
- 6417019716619
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
- ETIM 7:
- EC000216 - Switch disconnector
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA143720R1001 EN_1SCA143720R1001.pdf | 216 Kbytes |
|
