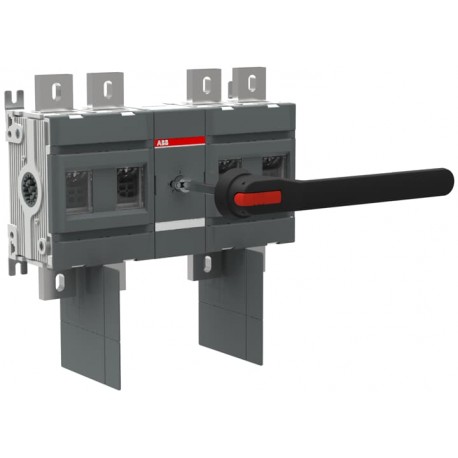

1SCA143717R1001 ABB DC OTDC1250E22P disconnect switch
1SCA143717R1001
ABB
DC OTDC1250E22P disconnect switch
OTDC1250E22P DC Switch-disconnector, IP65 protected & padlockable handle, adjustable shaft and terminal bolt kit included, Base mounting, IEC 1000 VDC 1250 A
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
OTDC1250E22P
1SCA143717R1001
6417019714882
OTDC1250E22P DC Switch-disconnector
OTDC1250E22P DC Switch-disconnector, IP65 protected & padlockable handle, adjustable shaft and terminal bolt kit included, Base mounting, IEC 1000 VDC 1250 A
Ordering
1 piece
85363090
Finland (FI)
Popular Downloads
Dimensions
L
414.5 mm
16.3 in
372 mm
14.6 in
145.9 mm
5.7 in
19.4 kg
42.9 lb
Technical
Single circuit 6a, 6b
(1000 V) 1250 A
1250 A
Fully Enclosed 1250 A
12 kV
1500 V
1000 V
(1000 V DC) 10 kA
(1000 V DC) 10 kA
for 1 s 10 kA
at Rated Operating Conditions per Pole 35 W
3
Black
274 mm
10.8 in
Pistol handle
12 mm
0.47 in
200 mm
7.9 in
Mechanism Between the Poles
22 (Between the Poles)
Top In - Bottom Out
Bottom In - Top Out
Front Operated
IEC 60947-1, -3
No
Base mounting
2
4
Front IP20
Lug terminals
50 mm
1.97 in
Cable Lug 50…75 N·m
Environmental
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Container Information
box 1 piece
400 mm
15.7 in
435 mm
17.1 in
170 mm
6.7 in
20.7 kg
45.7 lb
6417019714882
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA143717R1001 EN_1SCA143717R1001.pdf | 118 Kbytes |
|
