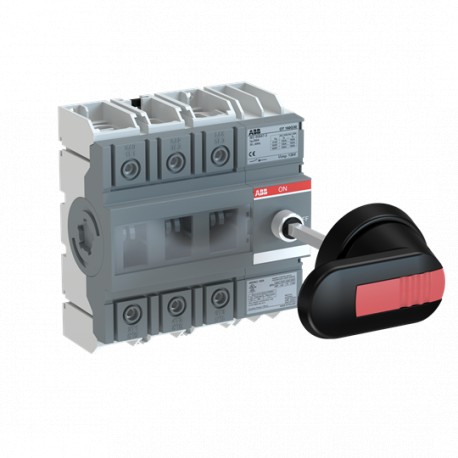

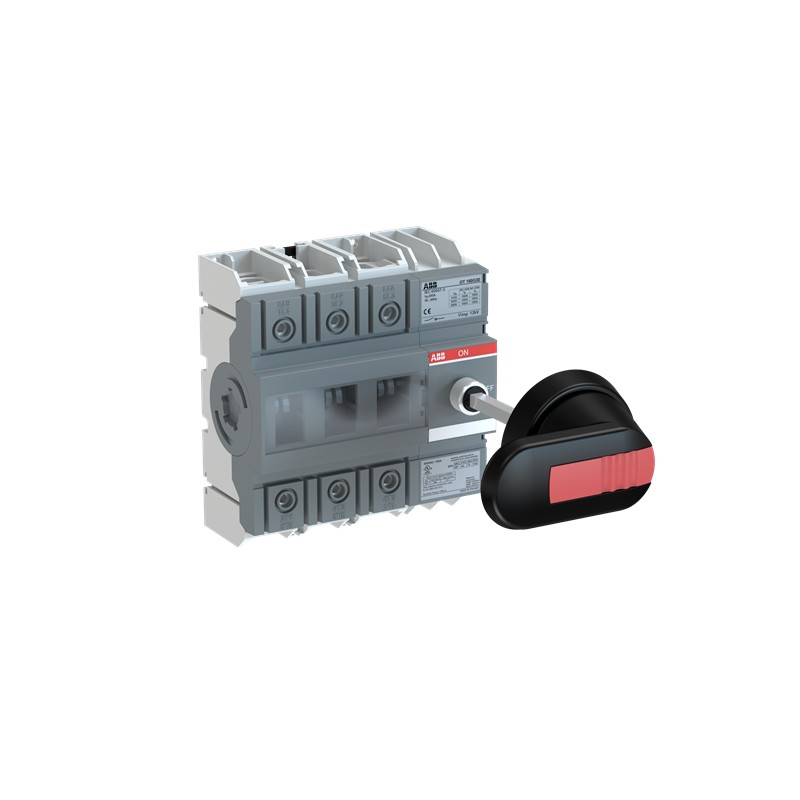

1SCA135138R1001 ABB Disconnector switch OT160G30P

Reference: 1SCA135138R1001

Manufacturer: ABB

Description:

Disconnector switch OT160G30P

OT160G30P SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 129,43 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC301116M0201
Environmental Information	1SCC301267D0201
Environmental Product Declaration - EPD	1SCC301281D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	ebec7e97-845d-441b-9250-e6728e5015c8 Finland
Simplified SCIP	c7431e4c-1ce3-4a41-bfc8-42c8cb0c2c4f Germany
	5d9f01e1-4af0-40a5-b92c-d652265cbca9 Denmark
	29e8cfeb-a245-4bb4-bd66-8f7e0e144f43 Belgium
	90b678b8-d028-4a44-a6b3-15dd93f66ebc France
	13f12df1-c8ff-45f4-a4fc-649c41f50e76 Hungary
	91186333-212d-416b-8249-ad759634aa15 Spain
	b80f39b3-40af-43c1-bd5c-bff44e3ec7fb Belgium
	4450dfb2-610e-4d29-82b6-9ed7dd66e48d Sweden
	124d3b3a-1747-4235-be89-e05db4385a15 Greece
	06a2d126-9500-472a-b1fc-cf34202708a8 Bulgaria
	0a3b9bd9-9f56-4de9-af92-ace336c57172 Portugal
	12139333-3514-41aa-850a-4c180364eea0 Estonia
	32361d35-80af-423f-8a55-93c17697886f Hungary
	abe8a96a-b964-401f-b1bc-d8a61607dffc Poland
	3bb46c68-d6e1-481e-8aed-220890547f9e France
	6b73b9cf-9e0f-41f8-9080-f1f06030b2d3 Czech Republic
	cafb220c-b693-41f1-a809-cfb812fda2bd Sweden
	7a910659-8dcb-4c7a-8913-3a04563fb07c Poland
	1948f409-e22d-463a-bb13-1069d1743509 Croatia
	d4d56217-35a2-450c-9e60-7068abc0bf5f Germany
	aa1c552b-2e31-4cce-9bda-dd1208ea855e Germany
	0e29ae93-9f5c-464d-bd4e-92a80a819a8d Netherlands
	21714790-5371-4b80-9ea6-e4b710d34cfd Italy
	38917de6-7b28-44e8-b825-6c019487274c Germany
	4a239961-c965-4d84-9864-0f936849e412 Poland
	404be6f8-d24a-4713-96e4-f0304b931de4 Norway
	6c09e0a3-1f98-44cb-b9d1-c7c1e0848d9e Germany
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301089M0204
Mechanical Drawings	OT160G3_model.igs
Environmental Product Declaration - EPD	1SCC301281D0201
Environmental
Degree of Protection	Front IP20
Environmental Information	1SCC301267D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	123 mm
Product Net Height	130 mm
Product Net Depth / Length	73 mm
Product Net Weight	0.9 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	160 mm
	6.3 in
Package Level 1 Depth / Length	244 mm
	9.6 in
Package Level 1 Height	96 mm
	3.8 in
Package Level 1 Gross Weight	1 kg
	2.3 lb
Package Level 1 EAN	6417019638393
Technical
Cable Cross-Section	Cu 10 ... 70 mm²
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 160 A
Conventional Thermal Current (I_the)	Fully Enclosed 160 A
Degree of Protection	Front IP20
Distance Between Phases	Standard
Handle Color	Black
Handle Type	Handle and shaft included
Mechanical Durability	20000
Mounting Type	Base mounting
Number of Poles	3P
Operating Mode	Front and Side
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (I_nc)	(200 A fuse, 500 V) 100 kA
	(200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 160 A
	(500 V) 160 A
	(690 V) 160 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 160 A
	(500 V) 160 A
	(690 V) 160 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 160 A
	(500 V) 160 A
	(690 V) 160 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 45 kW
	(400 ... 415 V) 75 kW
	(500 V) 90 kW
	(690 V) 132 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 4 kA
Special Functions	No
Standards	IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism	Mechanism at the End of the Switch
	30 (Right Side)
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 6 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA	600 V
Ampere Rating	125 A
Horsepower Rating UL/CSA	(240 V AC) Single Phase 20 Hp
	(440 ... 480 V AC) Single Phase 30 Hp
Tightening Torque	acc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA	53 in·lb
Certificates and Declarations
A2L Certificate – IEC	1SCC301336D0201
ATEX Certificate	No certification needed
Declaration of Conformity - CE	1SCC301210D2701
DNV GL Certificate	1SCC301174D0204
UL Certificate	cULus certificate OT160G
VDE Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122233
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA135138R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value1000 V

Feature nameRated operating voltage (EF001435)

Feature value1000 V

Feature nameRated permanent current Iu (EF001389)

Feature value160 A

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value160 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value160 A

Feature nameRated short-time withstand current lcw (EF007050)

Feature value4 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value75 kW

Feature nameSwitching power at 400 V (EF009166)

Feature value75 kW

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value50 kA

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueComplete device in housing

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameColour control element (EF007167)

Feature valueBlack

Feature nameType of control element (EF006976)

Feature valueLong turning handle

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueScrew connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP20

Feature nameDegree of protection (NEMA) (EF011959)

Feature valueOther
