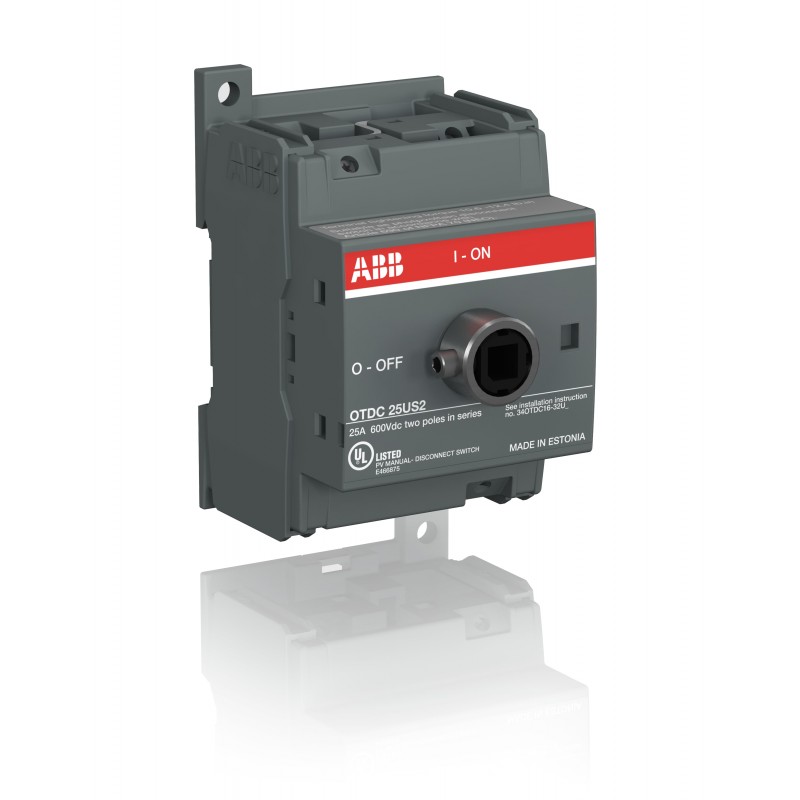

ABB 1SCA134375R1001 1SCA134375R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA134375R1001 ABB DC Disconnector Switch OTDC25U2

Reference: 1SCA134375R1001

Manufacturer: ABB

Description:

DC Disconnector Switch OTDC25U2

OTDC25U2 PV Disconnect Switch

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 86,01 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC301240D0201
RoHS Declaration	1SCC301239D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301022C0201
Instructions and Manuals	1SCC301086M0204
Mechanical Drawings	otdc16-32u-us2.igs
	1SCC307479F0001
	1SCC307480F0001
Environmental
Degree of Protection	Front IP20
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85363030
Country or Territory of Origin	Estonia
Dimensions
Product Frame Size	XS
Product Net Width	54.5 mm
	2.1 in
Product Net Height	54.8 mm
	2.2 in
Product Net Depth / Length	64 mm
	2.5 in
Product Net Weight	0.2 kg
	0.4 lb
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	100 mm
	3.9 in
Package Level 1 Depth / Length	64 mm
	2.5 in
Package Level 1 Height	100 mm
	3.9 in
Package Level 1 Gross Weight	0.2 kg
	0.4 lb
Package Level 1 EAN	6417019631776
Technical
Cable Cross-Section	2.5 ... 16 mm²
	12 ... 6 AWG
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 50 A
Conventional Thermal Current (I_the)	Fully Enclosed 40 A
Degree of Protection	Front IP20
Handle Type	Handle and shaft not included
Mounting Type	Base mounting, DIN-rail mounting
Number of Circuits	1
Number of Poles	2P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)	0.4 … 0.8 N·m
Power Loss	at Rated Operating Conditions per Pole 0.2 W
Protection Type	UL508i RK5 fuselink max. 70A, IEC60947 gPV fuselink max. 80A
Rated Conditional Short-Circuit Current (I_nc)	(1000 V DC) 10 kA
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current DC-21B (I_e)	(660 V) 25 A
	(1000 V) 16 A
Rated Operational Voltage	1000 V
Rated Short-Circuit Making Capacity (I_cm)	(1000 V DC) 1 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	(1000 V DC) 1 kA
	for 1 s 1 kA
Recommended Screw Driver	Main Circuit Torx
Shaft Diameter	6 mm
	0.24 in
Special Functions	No
Standards	UL508i and IEC 60947-1, -3
Switches Operating Mechanism	Mechanism on Top of the Switch
Terminal Type	Screw Terminals
Tightening Torque	Main Circuit 1.2 … 1.4 N·m
Utilization	Photovoltaic
Utilization Category	Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Wire Stripping Length	Main Circuit 60 … 11 mm
Technical UL/CSA
Maximum Operating Voltage	600Vdc, UL 508i
Ampere Rating	25A,600Vdc,UL508i
Wire Stripping Length	Main Circuit 60 … 11 mm
Recommended Screw Driver	Main Circuit Torx
Tightening Torque	Main Circuit 1.2 … 1.4 N·m
Certificates and Declarations
CCC Certificate	CQC2012010302579872
Declaration of Conformity - CE	1SCC301192D2704
Declaration of Conformity - UKCA	1SCC301313D0201
DNV GL Certificate	1SCC301231D0201
UL Certificate	UL certificate OTDC16-32.pdf
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC004963 - Switch disconnector (DC)
UNSPSC	39122233
IDEA Granular Category Code (IGCC)	5293 >> Switch disconnector
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA134375R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameRated operating voltage (EF001435)

Feature value1000 V

Feature nameRated permanent current Iu (EF001389)

Feature value40 A

Feature nameNumber of poles (EF001391)

Feature value2

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameSuitable for intermediate mounting (EF007264)

Feature valueNo

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueScrew connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP20

Feature nameDegree of protection (NEMA) (EF011959)

Feature value1
