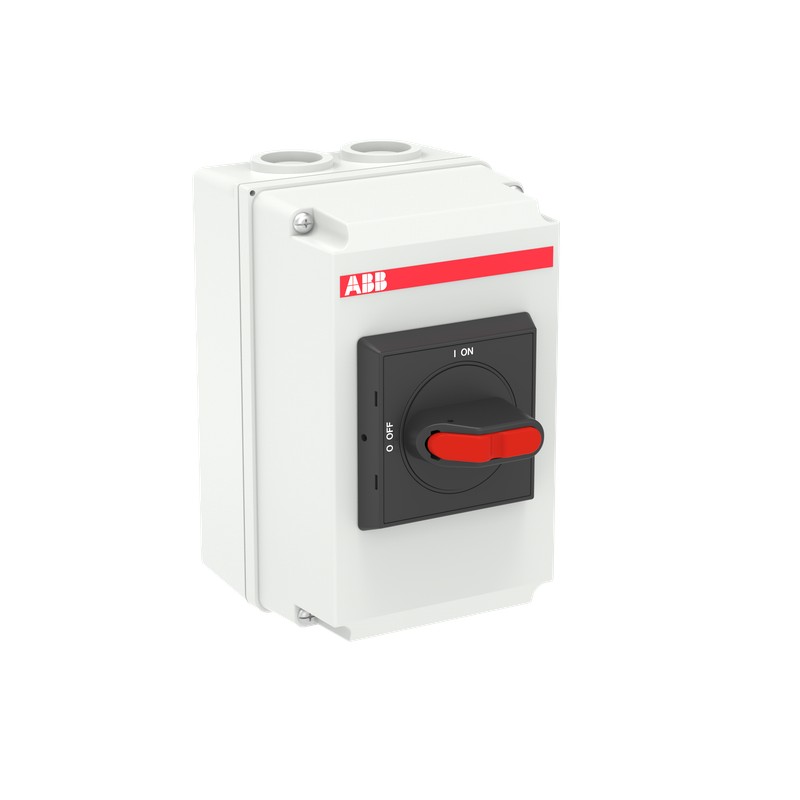

1SCA131732R1001 ABB Int. Box DC Disconnector OTDCP32S22MD

Code: 1SCA131732R1001

Manufacturer: ABB

Description:

Int. Box DC Disconnector OTDCP32S22MD
OTDCP32S22MD Enclosed solar switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 140,81 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340027M0002
Mechanical DrawingsOTDCK159595SM20.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width108 mm
Product Net Height167 mm
Product Net Depth / Length142 mm
Product Net Weight0.63 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width142 mm
Package Level 1 Depth / Length167 mm
Package Level 1 Height108 mm
Package Level 1 Gross Weight0.63 kg
Package Level 1 EAN6417019609928
Technical
Cable Entry PositionUp/Down
Cable Outlets Per Side2xM20 / 2xM20
Connecting Capacity Main CircuitScrew Clamp 2.5…16 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 32 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Enclosure TypeOTD
Handle ColorBlack
Handle TypeSelector handle
Mechanical Durability4000 cycle
Mounted Auxiliary Contacts0 NO, 0 NC
Mounting TypeBase mounting
Number of Poles4P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 0.5 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie)(1000 V) 32 A
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.5 kA
Recommended Screw DriverMain Circuit Torx
Special FunctionsSolar
StandardsIEC 60947-1, -3
Terminal TypeScrew Terminals
Tightening TorqueMain Circuit 1.2 … 1.4 N·m
Wire Stripping LengthMain Circuit 30 … 11 mm
Technical UL/CSA
Wire Stripping LengthMain Circuit 30 … 11 mm
Recommended Screw DriverMain Circuit Torx
Tightening TorqueMain Circuit 1.2 … 1.4 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1414520

ETIM for 1SCA131732R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueNo
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value32 A
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueYes
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
