ABBManual Switches1SCA131036R1001 ABB DC OTDC400E22 disconnect switch

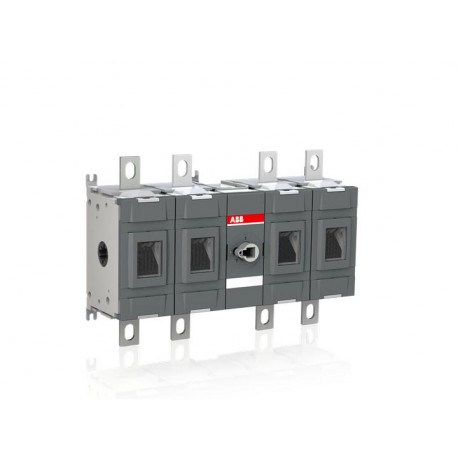

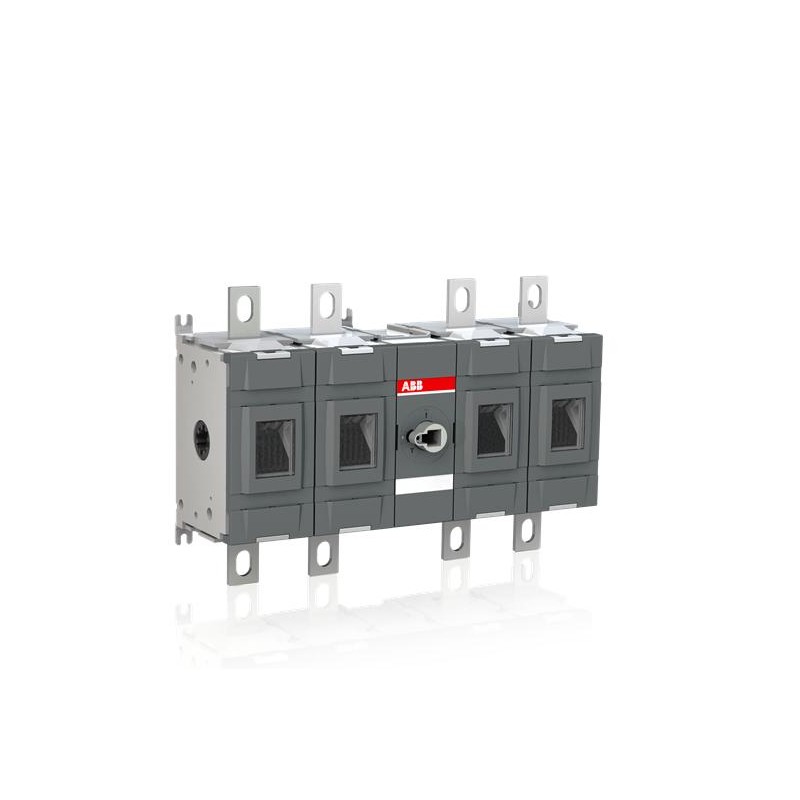

ABB 1SCA131036R1001 1SCA131036R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA131036R1001 ABB DC OTDC400E22 disconnect switch

Reference: 1SCA131036R1001

Manufacturer: ABB

Description:

DC OTDC400E22 disconnect switch

Categories:

  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Popular Downloads

Data Sheet, Technical Information: 1SCC301022C0201
Instructions and Manuals: 1SCC301085M0205
Mechanical Drawings: OTDC400E22.igs
1SCC307283F0201
1SCC307284F0201

Dimensions

Product Net Width: 335 mm
Product Net Height: 227 mm
Product Net Depth / Length: 105 mm
Product Net Weight: 6.7 kg
14.8 lb

Technical

Rated Operational Current DC-21B (Ie): (1000 V) 400 A
Conventional Free-air Thermal Current (Ith): 400 A
Conventional Thermal Current (Ithe): Fully Enclosed 400 A
Rated Impulse Withstand Voltage (Uimp): 12 kV
Rated Insulation Voltage (Ui): 1500 V
Rated Operational Voltage: 1000 V
Rated Short-Circuit Making Capacity (Icm): (1000 V DC) 10 kA
Rated Short-time Withstand Current (Icw): 1500 V DC 10 kA
for 1 s 10 kA
Power Loss: at Rated Operating Conditions per Pole 9.7 W
Pollution Degree: 3
Handle Type: Handle and shaft not included
Switches Operating Mechanism: Mechanism Between the Poles
22 (Between the Poles)
Position of Line Terminals: Top In - Bottom Out
Bottom In - Top Out
Operating Mode: Front Operated
Standards: IEC 60947-1, -3
Special Functions: No
Mounting Type: Base mounting
Number of Circuits: 2
Number of Poles: 4
Degree of Protection: Front IP20
Terminal Type: Lug terminals
Terminal Width: 25 mm
0.98 in
Tightening Torque: Cable Lug 30…40 mm

Environmental

RoHS Status: Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

CCC Certificate: CCC OTDC250-800.pdf
Declaration of Conformity - CE: 1SCC301205D2704
Instructions and Manuals: 1SCC301085M0205
RoHS Information: 1SCC301206D0205

Container Information

Package Level 1 Units: 1 piece
Package Level 1 Width: 432 mm
17 in
Package Level 1 Depth / Length: 263 mm
10.4 in
Package Level 1 Height: 143 mm
5.6 in
Package Level 1 Gross Weight: 7.2 kg
15.9 lb
Package Level 1 EAN: 6417019602622

Classifications

Object Classification Code: Q
ETIM 5: EC000216 - Switch disconnector
ETIM 6: EC000216 - Switch disconnector
ETIM 7: EC000216 - Switch disconnector
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
