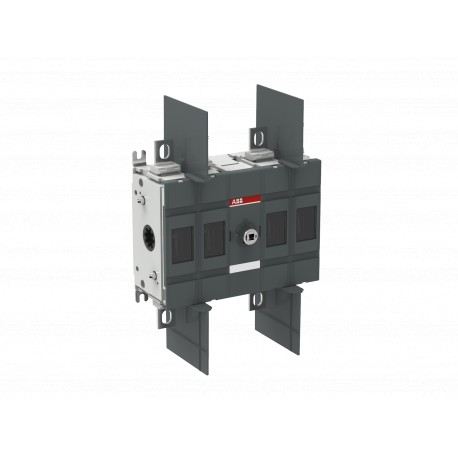

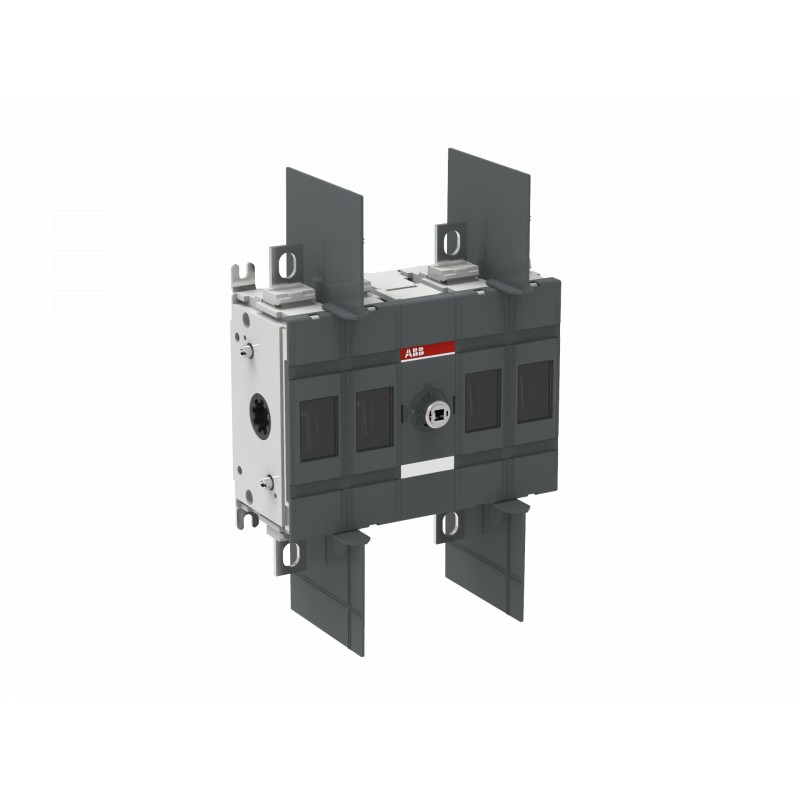

1SCA125824R1001 ABB DC disconnector switch OTDC100E22
1SCA125824R1001
ABB
DC disconnector switch OTDC100E22
Switch disconnector DC OTDC100E22
OTDC100E22 DC Switch-disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301114M0201 |
| Environmental Information | NA |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66,5 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301081M0206 |
| Mechanical Drawings | OTDC100_200E22.igs |
| 1SCC307583F0201 | |
| 1SCC307584F0201 | |
| Wiring Diagram | 1SCC301033K0201 |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | NA |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Frame Size | S1.0 |
| Product Net Width | 185.4 mm |
| 7.3 in | |
| Product Net Height | 262 mm |
| 10.3 in | |
| Product Net Depth / Length | 90.5 mm |
| 3.6 in | |
| Product Net Weight | 2.2 kg |
| 4.9 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 220 mm |
| 8.7 in | |
| Package Level 1 Depth / Length | 260 mm |
| 10.2 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 2.6 kg |
| 5.7 lb | |
| Package Level 1 EAN | 6417019558202 |
| Technical | |
| Connection Configuration | Double circuit 4a, 4c |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 100 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 100 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting |
| Number of Circuits | 2 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 5 … 8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 100 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 10 kA |
| for 1 s 5 kA | |
| for 0.1 s 10 kA | |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm |
| 0.77 in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Certificates and Declarations | |
| CCC Certificate | CQC2013010302611671 |
| Declaration of Conformity - CE | 1SCC301201D2703 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
