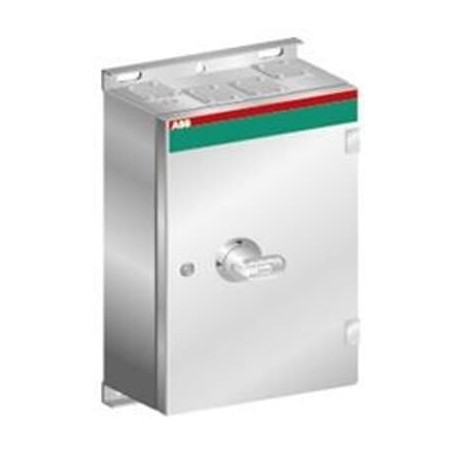

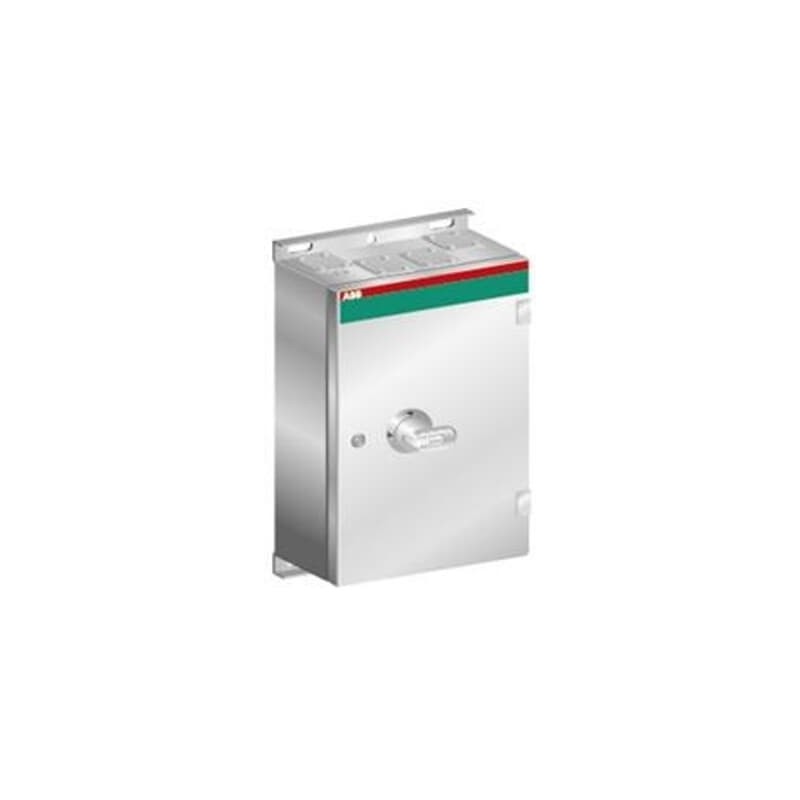

ABB 1SCA125726R1001 1SCA125726R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA125726R1001 ABB Info160EVSUR3TZ safe deposit box

Reference: 1SCA125726R1001

Manufacturer: ABB

Description:

Info160EVSUR3TZ safe deposit box
OT160EVSUR3TZ Safety switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 3.739,82 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP4ff6b74f-58b9-4f98-9def-eb910f43a8f6 Finland
Simplified SCIP8f334809-1ac3-45b6-a073-87e63b5e44c7 Germany
25fb92a3-1ef2-462d-b8e2-52d0f6d6ab6e Italy
041c675b-f8fb-4d18-a632-f7518dd18574 Norway
b6d8a63c-84e9-4a9e-83d9-ec4c8d303e0e Germany
ed7e013b-6d0b-4fef-a4d6-e5763f6cc499 France
2394f082-7f66-4308-83bf-c7ec3a52e0a1 Sweden
dd402f5b-7a1f-4b06-9a75-4976b715c5f8 Poland
a3531ca4-00da-4240-800d-9bcc3d971639 Greece
ff2a2d0a-6e37-4faf-a56d-ea53ce2f5c08 Estonia
86caf04f-40ba-410a-93f5-f34db989790c Portugal
72162800-0aa4-4bf8-9f6e-2f52978783a8 Netherlands
e6e13028-577a-4293-9a3c-bea7054a4ebd Germany
479c7b87-6180-4be2-9fbe-7353c00c0e02 Belgium
cf0d7e3d-be52-4d54-b7d6-5515db9bd5f5 Denmark
48f16909-69ce-423c-8ff9-9f57239b6ff6 Croatia
3e0bde23-5f57-4f3d-ac5f-2accbf8bb667 France
a0f16662-7226-4816-8eca-cf6533f67962 Germany
7acc97a5-5c09-4e26-80f1-e7a2b7ca0e7b Spain
9c0c3264-b222-4c19-9d00-358fd4b83d3d Poland
01bb4788-a6e2-4639-9524-1e98e0c3ff54 Hungary
b73e886a-76df-4bb9-a498-8dd0396c6736 Czech Republic
2b28307b-1bb8-4476-a64d-cd8f958a16fc Poland
398afdc1-7c5f-41cf-bd45-6339e24980d6 Germany
1c79e482-feb8-4987-8e4b-468dafcd2e84 Hungary
1101cfbd-d729-44d6-ad98-7fe373194f04 Sweden
abf3a118-d222-432b-a630-538ff1195e4b Bulgaria
1187b710-2dea-4791-8f49-fe64f05ffbe3 Belgium
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340008M0004
Mechanical DrawingsOTRK604023PBL4R.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width400 mm
Product Net Height600 mm
Product Net Depth / Length230 mm
Product Net Weight27.01 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight28.7 kg
Package Level 1 EAN6417019557496
Technical
Cable Entry PositionBottom/Bottom
Cable Outlets Per SideBlank / 4xring-flange+ø25.5mm
ColorStainless
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialStainless steel
Handle ColorStainless Steel
Handle TypePistol handle
Impact Resistance RatingHousing IK09
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 80 kW
(500 V) 112 kW
(690 V) 144 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
Special FunctionsEMC
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340002D2703
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Sweden)3135018

ETIM for 1SCA125726R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value750 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value160 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value160 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value160 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value80 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value80 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueGrey
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value400 mm
Feature nameHeight (EF000040)
Feature value600 mm
Feature nameDepth (EF000049)
Feature value230 mm

DATASHEET - PDF
