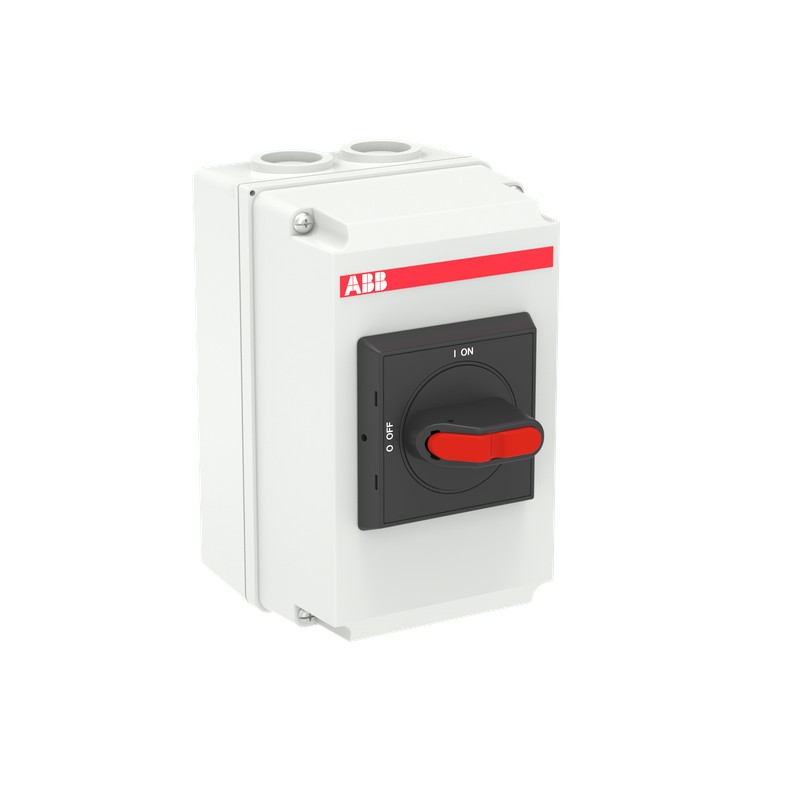

1SCA125153R1001 ABB Int. Box DC Disconnector OTDCP16S12M
1SCA125153R1001
ABB
Int. Box DC Disconnector OTDCP16S12M
OTDCP16S12M Enclosed solar switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OTDCP16S12M
- Product ID:
- 1SCA125153R1001
- EAN:
- 6417019554105
- Catalog Description:
- OTDCP16S12M Enclosed solar switch
- Long Description:
- The enclosure in the OTDCP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked, and the interlock can be defeated with a special tool. Typical applications is solar panels, DC batteries, etc.
Circular Value
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108467A5658
- REACH Declaration:
- 1SCC301240D0201
- RoHS Information:
- 1SCC301239D0201
- SCIP:
- 6dbcc6a7-7c43-4803-aac9-1b9d56d716da Finland (FI)
- Simplified SCIP:
- 106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria (BG)
11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden (SE)
a2440890-1a1d-4207-8678-7363217d0716 Germany (DE)
ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden (SE)
f562b232-6006-4766-bb6a-e6b68fe97942 France (FR)
4f17cd94-fe32-490e-a112-b79f5c9d915e Greece (GR)
589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland (PL)
537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium (BE)
a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy (IT)
f9f82fe3-0290-4a46-95a7-e38d53238e74 Germany (DE)
cbd12426-ef4c-4520-82a7-8e6975538711 France (FR)
629e421e-5fe6-4da4-9729-793beef606d8 Spain (ES)
c51abc95-da01-4018-b9d2-7bdb516ae602 Estonia (EE)
03afcbbb-4895-4a20-8d82-382adbce7985 Portugal (PT)
035daf1f-5f35-415b-8124-5a6254c4dccf Poland (PL)
d76fab0f-ea17-4ca5-a373-badbefe2e31b Norway (NO)
a44ecae6-5ef4-4fe1-b141-9dab6f4fbc82 Belgium (BE)
cbb00cd0-27b5-450e-bf15-2c62aafb4768 Hungary (HU)
53549092-4cf4-4af1-bd5d-c4f0735e620b Hungary (HU)
867226ac-2158-4725-a552-2af37cb3eef5 Poland (PL)
190bf5b6-38a6-49c8-8a7d-55b2bbeea12e Germany (DE)
90984db9-4148-4464-9e83-a34c15368c2d Denmark (DK)
205f99bf-3bdb-4586-bbe9-de4b81b2eb40 Germany (DE)
918de6a4-dc1d-4a24-b933-3e56480d75ee Czech Republic (CZ)
0019e5ce-7e40-4447-b06c-2b1d9419e739 Croatia (HR)
743efcfd-e1fe-4d5b-9f4f-8999e3de28bf Netherlands (NL)
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
- Country of Origin:
- Finland (FI)
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC340015C0201
- Instructions and Manuals:
- 1SCC340027M0002
- Mechanical Drawings:
- OTDCK159595SM20.stp
Dimensions
- Product Net Width:
- 95mm
- Product Net Height:
- 150mm
- Product Net Depth / Length:
- 95mm
- Product Net Weight:
- 0.59kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1000 V) 16 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 16 A
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Voltage:
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (Icm):
- (690 V AC) 0.71 kA
- Rated Short-time Withstand Current Low Voltage (Icw):
- for 1 s 0.5 kA
- Power Loss:
- at Rated Operating Conditions per Pole 0.15 W
- Pollution Degree:
- 3
- Handle Color:
- Black
- Handle Type:
- Selector handle
- Standards:
- IEC 60947-1, -3
- Special Functions:
- Solar
- Number of Poles:
- 3
- Connecting Capacity Main Circuit:
- Screw Clamp 2.5…16 mm²
- Cable Entry Position:
- Up/Down
- Cable Outlets Per Side:
- 2xM20 / 2xM20
- Degree of Protection:
- acc. to IEC 60529 IP65
- Enclosure Material:
- Plastic
- Mounted Auxiliary Contacts:
- 0 NO, 0 NC
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP:
- 6dbcc6a7-7c43-4803-aac9-1b9d56d716da Finland (FI)
- Simplified SCIP:
- 106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria (BG)
11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden (SE)
a2440890-1a1d-4207-8678-7363217d0716 Germany (DE)
ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden (SE)
f562b232-6006-4766-bb6a-e6b68fe97942 France (FR)
4f17cd94-fe32-490e-a112-b79f5c9d915e Greece (GR)
589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland (PL)
537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium (BE)
a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy (IT)
f9f82fe3-0290-4a46-95a7-e38d53238e74 Germany (DE)
cbd12426-ef4c-4520-82a7-8e6975538711 France (FR)
629e421e-5fe6-4da4-9729-793beef606d8 Spain (ES)
c51abc95-da01-4018-b9d2-7bdb516ae602 Estonia (EE)
03afcbbb-4895-4a20-8d82-382adbce7985 Portugal (PT)
035daf1f-5f35-415b-8124-5a6254c4dccf Poland (PL)
d76fab0f-ea17-4ca5-a373-badbefe2e31b Norway (NO)
a44ecae6-5ef4-4fe1-b141-9dab6f4fbc82 Belgium (BE)
cbb00cd0-27b5-450e-bf15-2c62aafb4768 Hungary (HU)
53549092-4cf4-4af1-bd5d-c4f0735e620b Hungary (HU)
867226ac-2158-4725-a552-2af37cb3eef5 Poland (PL)
190bf5b6-38a6-49c8-8a7d-55b2bbeea12e Germany (DE)
90984db9-4148-4464-9e83-a34c15368c2d Denmark (DK)
205f99bf-3bdb-4586-bbe9-de4b81b2eb40 Germany (DE)
918de6a4-dc1d-4a24-b933-3e56480d75ee Czech Republic (CZ)
0019e5ce-7e40-4447-b06c-2b1d9419e739 Croatia (HR)
743efcfd-e1fe-4d5b-9f4f-8999e3de28bf Netherlands (NL)
Certificates and Declarations
- BV Certificate:
- 1SCC340018D0204
- Declaration of Conformity - CE:
- 1SCC340003D2704
- REACH Declaration:
- 1SCC301240D0201
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 142 mm
- Package Level 1 Depth / Length:
- 167 mm
- Package Level 1 Height:
- 108 mm
- Package Level 1 Gross Weight:
- 0.7 kg
- Package Level 1 EAN:
- 6417019554105
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
- ETIM 7:
- EC000216 - Switch disconnector
- ETIM 8:
- EC000216 - Switch disconnector
- ETIM 9:
- EC000216 - Switch disconnector (low voltage)
- eClass:
- V11.1 : 27371403
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland):
- 3601733
- E-Number (Norway):
- 1414585
- E-Number (Sweden):
- 3134008
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 16 A |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Colour control element (EF007167) | Black |
| Interlockable (EF006281) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
