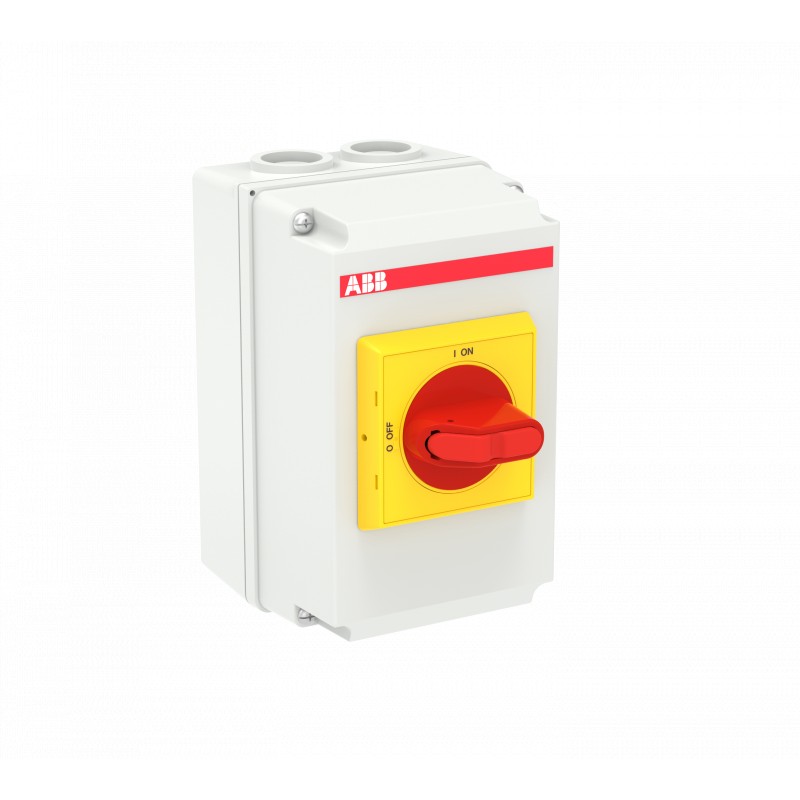

1SCA125150R1001 ABB Int. BOXED DC disconnector OTDCP16SA12M
1SCA125150R1001
ABB
Int. BOXED DC disconnector OTDCP16SA12M
OTDCP16SA12M Enclosed solar switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 95a62d34-6b8f-431f-b674-e6dd3a3a0ab5 Finland |
| Simplified SCIP | 10951463-2910-4262-9497-41357299e7ea Germany |
| 0f957286-95bc-46d5-9e1f-6aef9f027485 Germany | |
| f14ce6fa-6427-44c8-9aef-1c6c013326d9 Germany | |
| f90ad28a-5575-40d6-b6e2-20beccf8648b Bulgaria | |
| 7d466fe9-9826-41a5-90f6-a7ddfd7af865 Sweden | |
| 1a543c89-890b-4805-a8ad-118a68a8cae1 Poland | |
| 85f435df-3f98-4334-a2a9-64bb07719481 Germany | |
| 46518fe9-0076-4a50-a23c-ffe82f702f39 Sweden | |
| 57cead34-3857-4d92-bb0d-1647d176ae34 France | |
| c6412142-52ef-41c2-8b76-be0c18178ca1 Germany | |
| a21a95a4-a8bf-4cb3-a28a-457773a83bae France | |
| 8a6c972b-5f66-4926-81a7-7442d6c7fd0a Greece | |
| 5d8f49f9-c898-4d92-85ee-b097851d6a47 Portugal | |
| cc75e28e-af62-4249-a6f1-443f866ddda5 Italy | |
| a006cd08-4e32-4a03-a635-768dc1047370 Belgium | |
| 1ac797d0-7e8a-4bfc-855e-299d2b15a09b Spain | |
| 4a74e9aa-a71a-4dd6-8261-338e956f470e Hungary | |
| c5984f82-bbcb-4188-bff6-6f98d1d5acb7 Norway | |
| c77d63fc-4707-4a83-90e1-c9aa2fcde3d9 Poland | |
| ad20e44b-7d3d-42ca-aae3-d7b86aba301b Hungary | |
| e987c3a5-b586-43f2-b7d3-6c70aa6bf062 Netherlands | |
| 879df01d-d0d8-4489-a4df-c26ef4a5cf79 Belgium | |
| 995032c9-0044-43e4-99f5-1253658ec7fb Poland | |
| 7f5af4e4-5049-4d36-bee1-8068fa9ea74c Estonia | |
| 57657692-f46e-44ee-904d-6d9f95ae1af3 Czech Republic | |
| 3b36ea2e-635c-4879-b8b7-fafa0a1f469d Croatia | |
| 7d917d53-2cc7-40d3-a19e-18e98d5cd2bb Denmark | |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340027M0002 |
| Mechanical Drawings | OTDCK159595SM20.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 95 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 95 mm |
| Product Net Weight | 0.59 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 108 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 6417019554075 |
| Technical | |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Connecting Capacity Main Circuit | Screw Clamp 2.5…16 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 16 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Selector handle |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 16 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.71 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Torx |
| Special Functions | Solar |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Wire Stripping Length | Main Circuit 14 … 11 mm |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 14 … 11 mm |
| Recommended Screw Driver | Main Circuit Torx |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601746 |
| E-Number (Norway) | 1414582 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 16 A |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Colour control element (EF007167) | Red |
| Interlockable (EF006281) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
