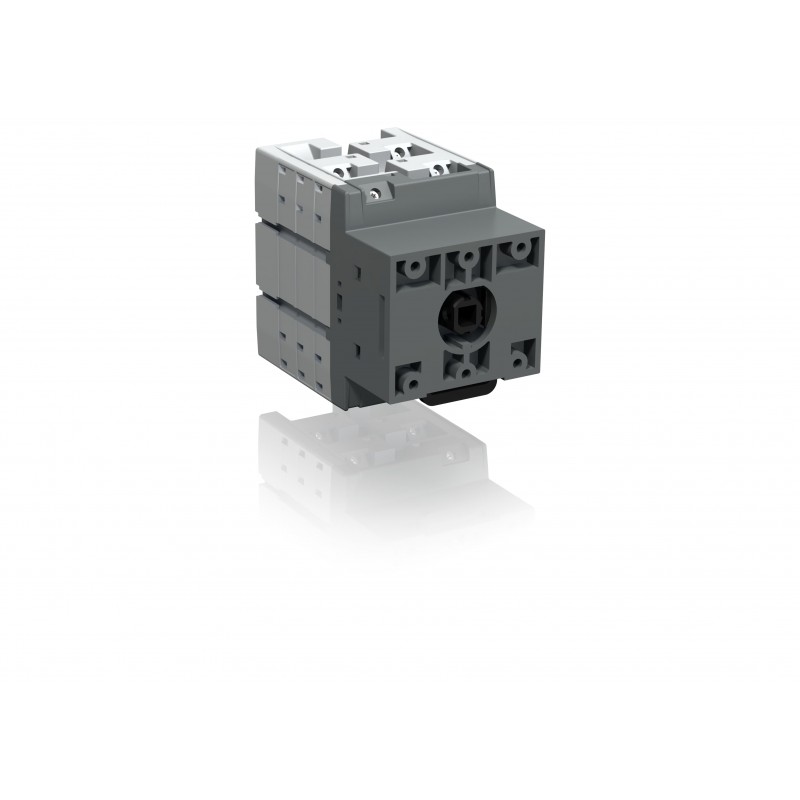

1SCA123844R1001 ABB Disconnector Switch OTDC25FT4DC

Reference: 1SCA123844R1001

Manufacturer: ABB

Description:

Disconnector Switch OTDC25FT4DC

OTDC25FT4 DC Switch-disconnector

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 70,01 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
Environmental Information	NA
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC301240D0201
RoHS Declaration	1SCC301239D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301022C0201
Instructions and Manuals	1SCC301079M0206
Mechanical Drawings	OTDC16-32FT4_palikkamalli.igs
	1SCC307019F0002
	1SCC307020F0002
Environmental
Degree of Protection	Front IP20
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85363030
Country or Territory of Origin	Estonia
Dimensions
Product Frame Size	XS
Product Net Width	52.5 mm
	2.1 in
Product Net Height	69 mm
	2.7 in
Product Net Depth / Length	87 mm
	3.4 in
Product Net Weight	0.2 kg
	0.5 lb
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	90 mm
	3.5 in
Package Level 1 Depth / Length	54 mm
	2.1 in
Package Level 1 Height	90 mm
	3.5 in
Package Level 1 Gross Weight	0.3 kg
	0.6 lb
Package Level 1 EAN	6417019545639
Technical
Cable Cross-Section	2.5 ... 16 mm²
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 32 A
Conventional Thermal Current (I_the)	Fully Enclosed 32 A
Mounting Type	Door mounting
Number of Circuits	2
Number of Poles	4P
Operating Mode	Front
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)	0.4 … 0.8 N·m
Power Loss	at Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current DC-21B (I_e)	(660 V) 25 A
	(1000 V) 16 A
Rated Operational Voltage	1000 V
Rated Short-Circuit Making Capacity (I_cm)	(1000 V DC) 0.8 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	(1000 V DC) 0.8 kA
	for 1 s 0.8 kA
Recommended Screw Driver	Main Circuit Torx
Shaft Diameter	6 mm
	0.24 in
Special Functions	No
Standards	IEC 60947-1, -3
Switches Operating Mechanism	Mechanism on Top of the Switch
Terminal Type	Screw Terminals
Tightening Torque	Main Circuit 1.2 … 1.4 N·m
Utilization	Photovoltaic
Utilization Category	Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Wire Stripping Length	Main Circuit 59 … 11 mm
Certificates and Declarations
CCC Certificate	CQC2012010302579872
Declaration of Conformity - CE	1SCC301192D2704
Declaration of Conformity - UKCA	1SCC301313D0201
DNV GL Certificate	1SCC301231D0201
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC004963 - Switch disconnector (DC)
UNSPSC	39122233
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3601471
