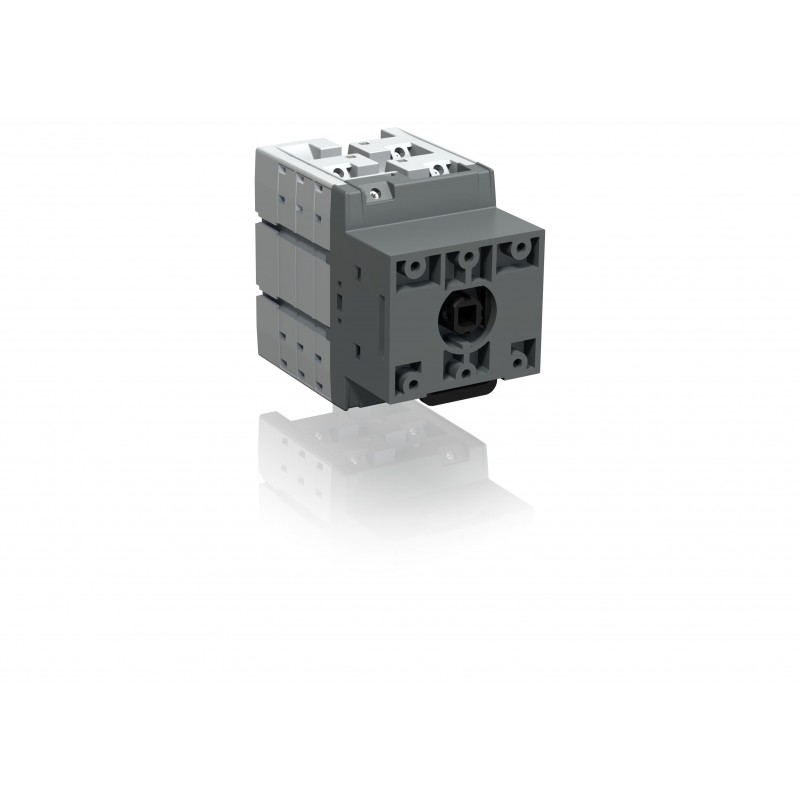

1SCA123841R1001 ABB OTDC16FT4DC Disconnector Switch
1SCA123841R1001
ABB
OTDC16FT4DC Disconnector Switch
OTDC16FT4 DC Switch-disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Information | NA |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301079M0206 |
| Mechanical Drawings | OTDC16-32FT4_palikkamalli.igs |
| 1SCC307019F0002 | |
| 1SCC307020F0002 | |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Estonia |
| Dimensions | |
| Product Frame Size | XS |
| Product Net Width | 52.5 mm |
| 2.1 in | |
| Product Net Height | 69 mm |
| 2.7 in | |
| Product Net Depth / Length | 87 mm |
| 3.4 in | |
| Product Net Weight | 0.2 kg |
| 0.5 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 90 mm |
| 3.5 in | |
| Package Level 1 Depth / Length | 54 mm |
| 2.1 in | |
| Package Level 1 Height | 90 mm |
| 3.5 in | |
| Package Level 1 Gross Weight | 0.3 kg |
| 0.6 lb | |
| Package Level 1 EAN | 6417019545608 |
| Technical | |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 25 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Mounting Type | Door mounting |
| Number of Circuits | 2 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 0.4 … 0.8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current DC-21B (Ie) | (660 V) 16 A |
| (1000 V) 10 A | |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 0.8 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 0.8 kA |
| for 1 s 0.8 kA | |
| Recommended Screw Driver | Main Circuit Torx |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Wire Stripping Length | Main Circuit 41 … 11 mm |
| Certificates and Declarations | |
| CCC Certificate | CQC2012010302579872 |
| Declaration of Conformity - CE | 1SCC301192D2704 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601470 |
