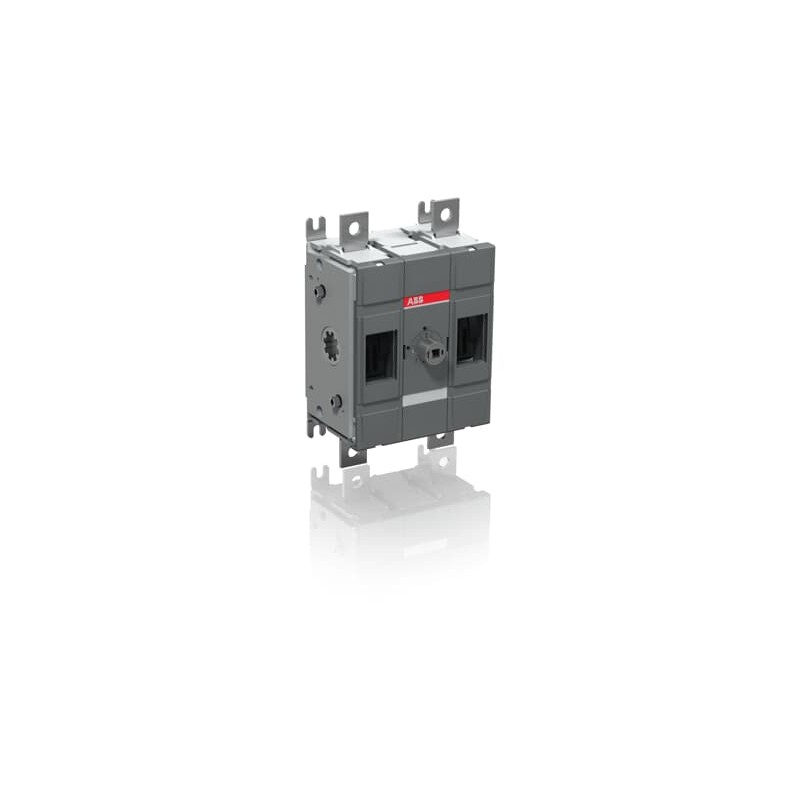

1SCA123767R1001 ABB DC OTDC200U11 disconnect switch
1SCA123767R1001
ABB
DC OTDC200U11 disconnect switch
Switch disconnector DC OTDC200U11
OTDC200U11 PV Disconnect Switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301114M0201 |
| Environmental Information | NA |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66,5 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301081M0206 |
| Mechanical Drawings | OTDC100_245U11.igs |
| 1SCC307007F0002 | |
| 1SCC307008F0002 | |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | NA |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Frame Size | S1.0 |
| Product Net Width | 115.5 mm |
| 4.5 in | |
| Product Net Height | 176 mm |
| 6.9 in | |
| Product Net Depth / Length | 83.5 mm |
| 3.3 in | |
| Product Net Weight | 1.2 kg |
| 2.7 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 96 mm |
| 3.8 in | |
| Package Level 1 Depth / Length | 160 mm |
| 6.3 in | |
| Package Level 1 Height | 244 mm |
| 9.6 in | |
| Package Level 1 Gross Weight | 1.4 kg |
| 3 lb | |
| Package Level 1 EAN | 6417019545295 |
| Technical | |
| Connection Configuration | Single circuit 2a, 2b |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 5 … 8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 9.5 W |
| Protection Type | Circuit breaker |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 250 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 10 kA |
| for 1 s 5 kA | |
| for 0.1 s 10 kA | |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | UL98B and IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 11 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm |
| 0.77 in | |
| Tightening Torque | Cable Lug 15 … 22 N·m |
| Cable Lug 133 … 195 lbf·in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Technical UL/CSA | |
| Maximum Operating Voltage | 1000Vdc, UL 98B |
| Ampere Rating | 200A,1000Vdc,UL98B |
| Short-Circuit Current Rating (SCCR) | 10 kA |
| 1000 V DC | |
| Tightening Torque | Cable Lug 15 … 22 N·m |
| Cable Lug 133 … 195 lbf·in | |
| Certificates and Declarations | |
| CCC Certificate | CQC2013010302611671 |
| CSA Certificate | CSA Letter_of_Attestation OTDC100-200.pdf |
| Declaration of Conformity - CE | 1SCC301201D2703 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| UL Certificate | UL certificate OTDC100-200.pdf |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
