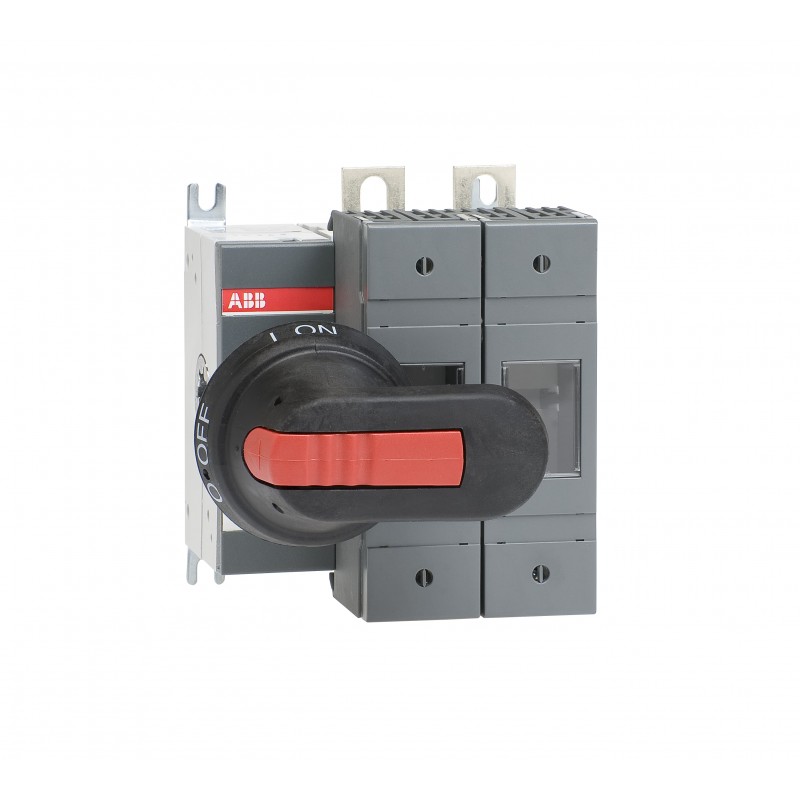

1SCA116717R1001 ABB OS160GD02P Fuse Switch
1SCA116717R1001
ABB
OS160GD02P Fuse Switch
OS160GD02P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f6843655-08b9-4d08-a042-77550b2111ac Finland |
| Simplified SCIP | d2417185-19c6-43ea-b8a0-4817762edaeb Germany |
| 99a11aeb-35cb-4e81-a81d-9734f2e234f3 Greece | |
| 6559b40d-a6fa-4848-81bc-e9c6c1244563 Portugal | |
| 56be32db-2719-401f-a867-39c37921b540 Norway | |
| 62f86e93-a6f9-41d0-8bfb-785b5c59fda4 Italy | |
| c01a244e-4554-4d6c-b8da-e43e63103811 Croatia | |
| 4f46b45b-3dbf-45f1-ac73-f2188b207a80 Poland | |
| 77a2f53f-be4f-4ef3-9be8-0b7616b9c55a Bulgaria | |
| 48bae954-23ba-402c-a5d3-9350e86043c2 Sweden | |
| 3f7be1fa-9434-46d0-ac39-c9bc185b65bd Estonia | |
| f309f7c7-1351-402f-95a4-aef7205eb757 Germany | |
| bc0693c2-73c2-4281-a39a-0f26c56853f8 France | |
| ba014e39-6174-40c4-af24-d6c964f4182d Spain | |
| a23bf1b2-e280-4001-a45c-46dfca42e9d8 Belgium | |
| 4016b0b4-3bb3-4c77-9337-900b0c2a802d Hungary | |
| 2315e2c7-b6c8-4232-9fbf-a67bac8af40d Czech Republic | |
| e8a85b53-8bcb-4b3b-a197-28978811846f Denmark | |
| f4f9fbbb-5fd3-46fc-9756-c0dfe845207d Germany | |
| 4fd55981-4b01-42ee-9a4e-ae2784d85fd0 Poland | |
| ed4d6399-4bcc-40b0-98be-85d37d00e76b France | |
| 5bf42a67-19e4-4a8f-90e3-2040f224b714 Germany | |
| caef37bb-8415-4f46-9648-56f7822cc2f7 Belgium | |
| 0c63d9b5-4826-4202-9be3-7eec8417c8d5 Hungary | |
| 63333776-6965-4bd8-b051-5e932776ee00 Germany | |
| 4a7ecfe5-3dd1-4098-8c1d-6aa40c4ea98e Netherlands | |
| a63e9c77-f157-41ac-882a-50aaf706bb84 Poland | |
| 2da7fa67-9ceb-4d67-9872-f64d1f97de92 Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_02.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 112 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 1.5 kg |
| 3.31 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1.6 kg |
| 3.6 lb | |
| Package Level 1 EAN | 6417019488042 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 02 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
