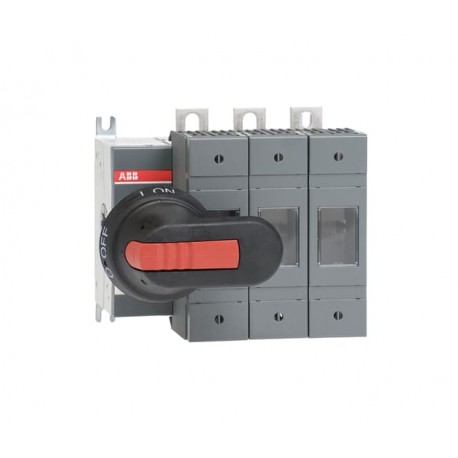

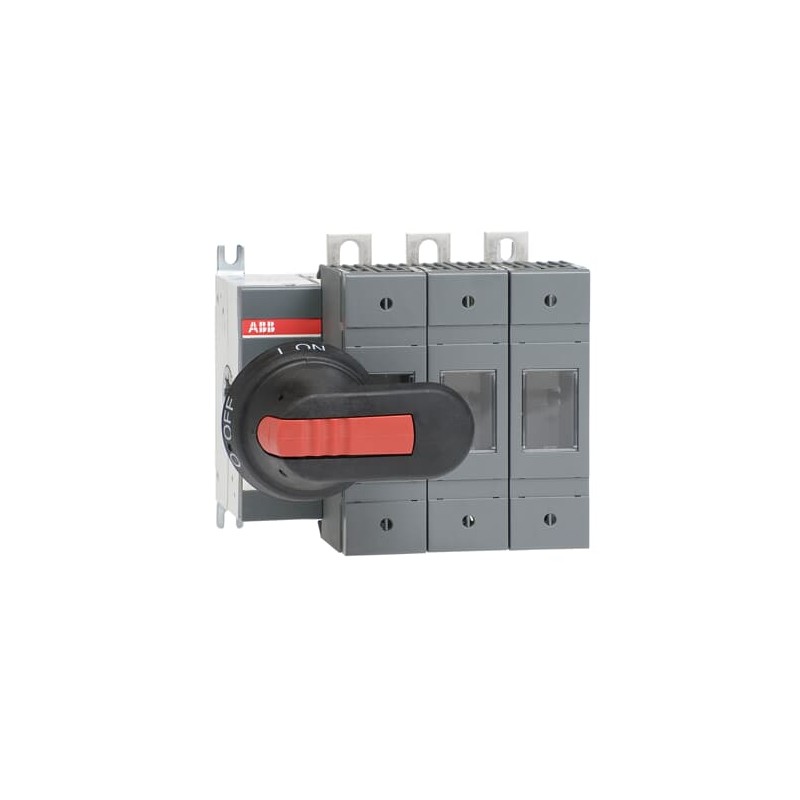

1SCA115602R1001 ABB OS125GF03P Fuse Switch

Reference: 1SCA115602R1001

Manufacturer: ABB

Description:

OS125GF03P Fuse Switch

OS125GF03P SWITCH FUSE

Categories:

Low-voltage industrial components > Fuse switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 184,87 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-8 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	1SCC311047M0201
Environmental Product Declaration - EPD	1SCC311196D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	d0ed0b06-9569-4695-9347-79362d465eda Finland
Simplified SCIP	57f58c2c-7880-4cff-8365-d13ff054bbb1 Germany
	f6d1a8ab-87ba-44dd-be0a-804cb39e9885 Norway
	b05f1288-b9d3-4680-b5fe-723dc3a8f4b2 Poland
	10bd25fd-b62e-443d-856f-2241b5b6ddcf Germany
	06d35fa9-c8a6-4bcb-af49-61ce624c5771 Spain
	e265b412-3885-4b92-9b4c-baa681f785eb Belgium
	35c2735d-ee1a-443e-b5e6-d6e5e15eae58 France
	b09350e1-e79a-41ee-b0a3-a4e1db0a4e40 Hungary
	7167ee3b-c000-4141-9121-1b92e27b72bc Sweden
	021a94d4-f68a-499a-870f-375e992a6fdd Germany
	2ba7c51e-5a7e-4975-bbfe-a6ecea4f31ed Germany
	91f1a52d-ccc6-4bf8-bff8-233810168237 Poland
	e350cdf3-1673-4e30-ad47-7c5db391d69c Netherlands
	58c482ba-e59d-4a64-995c-6cfb6ae76004 Greece
	eed0e36e-f4f1-4a7c-821d-fe0c5bffbebc Portugal
	7bc054f5-818a-4475-a9a0-68cb17a1761f Bulgaria
	f9061423-8067-4544-94d5-c4469471aeb5 Estonia
	521fdfae-90ec-44f2-b7a9-ef61e143f0d2 Hungary
	8bcaf273-e133-4b3e-b94e-8666a3e01ec6 Sweden
	a325dfb6-f15a-4750-a60a-c3a21cfb7b53 Poland
	3057d5dd-76ed-4b91-b898-bcb163723d9a Croatia
	5598518a-9e7f-427b-a028-043eddc2a863 France
	9933ccd6-e566-4041-a299-5a2629c1b4fe Czech Republic
	6fa0d1af-7417-41a9-a3dc-556025ca9bbc Italy
	d7cb0205-552c-4e4f-9a73-cbd468b4a008 Belgium
	f7337df9-60e2-43f4-99b8-7d5d74313dfb Denmark
	d0b4d26a-9af2-4263-9b8a-ebe211968374 Germany
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC311013C0201
Instructions and Manuals	1SCC311037M0206
Mechanical Drawings	OS160GD_F_03.igs
Environmental Product Declaration - EPD	1SCC311196D0201
Environmental
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	147 mm
Product Net Height	140 mm
Product Net Depth / Length	130 mm
Product Net Weight	2.03 kg
	4.48 lb
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	170 mm
	6.7 in
Package Level 1 Depth / Length	220 mm
	8.7 in
Package Level 1 Height	150 mm
	5.9 in
Package Level 1 Gross Weight	2.2 kg
	4.8 lb
Package Level 1 EAN	6417019479514
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 125 A
Conventional Thermal Current (I_the)	Fully Enclosed 125 A
Fuse Size	22x58
Fuse System	NFC
Handle Type	Pistol handle and shaft included
Mounting Type	Base mounting
Number of Poles	3P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (I_nc)	(690 V) 80 kA
Rated Current (I_n)	Main Circuit 125 A
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current AC-21A (I_e)	(500 V) 125 A
	(690 V) 125 A
Rated Operational Current AC-22A (I_e)	(500 V) 125 A
	(690 V) 125 A
Rated Operational Current AC-23A (I_e)	(500 V) 125 A
	(690 V) 125 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 37 kW
	(400 V) 55 kW
	(415 V) 55 kW
	(500 V) 75 kW
	(690 V) 110 kW
Rated Operational Voltage	Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 5 kiloampere rms
Standards	IEC 60947-3
Switches Operating Mechanism	03 (Left Side)
Terminal Type	Lug terminals
Terminal Width	20 mm
Tightening Torque	15 … 22 N·m
Technical UL/CSA
Tightening Torque	15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC311209D0201
ATEX Certificate	No certification needed
CCC Certificate	CCC OS100-160G_ 2015.pdf
Declaration of Conformity - CE	1SCC311137D2703
DNV GL Certificate	1SCC311125D0203
UL Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC001040 - Fuse switch disconnector
ETIM 10	EC001040 - Fuse switch disconnector
UNSPSC	39122233
IDEA Granular Category Code (IGCC)	5291 >> Fuse switch disconnector
eClass	V11.1 : 27371401
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA115602R1001 Low-voltage industrial controls and switchgear (EC001040)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueYes

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value1000 V

Feature nameRated permanent current Iu (EF001389)

Feature value125 A

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value110 kW

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value80 kA

Feature nameRated short-time withstand current lcw (EF007050)

Feature value5 kA

Feature nameSuitable for fuses (EF006692)

Feature value22x58 mm

Feature nameNumber of poles (EF001391)

Feature value3

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameCable entry (EF000537)

Feature valueOther

Feature nameEquipped with connectors (EF011696)

Feature valueYes

Feature nameSuitable for floor mounting (EF007243)

Feature valueNo

Feature nameSuitable for front mounting (EF007246)

Feature valueNo

Feature nameSuitable for busbar mounting (EF007259)

Feature valueYes

Feature nameType of control element (EF006976)

Feature valueLong turning handle

Feature namePosition control element (EF009410)

Feature valueLeft

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo
