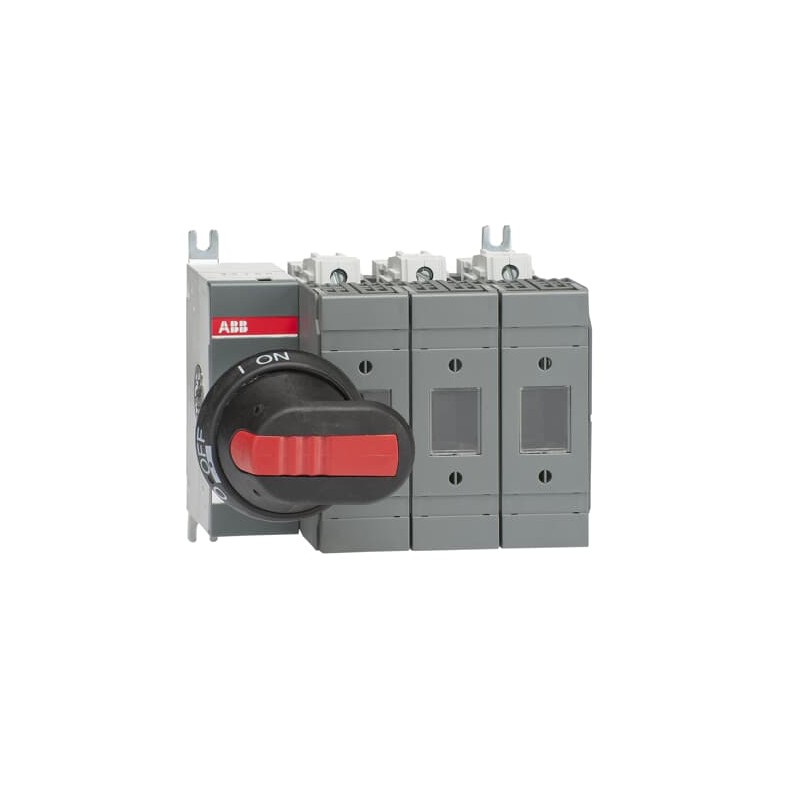

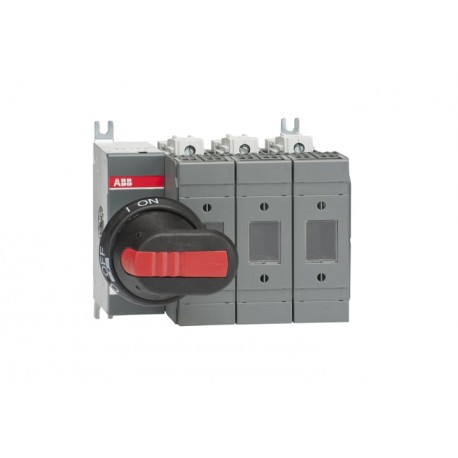

1SCA115443R1001 ABB OS60GJ03P Fuse Switch
1SCA115443R1001
ABB
OS60GJ03P Fuse Switch
OS60GJ03P FUSIBLE DISCONNECT SWITCH
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6d78c6cc-d538-4f6b-adef-8e473812f1b8 Finland |
| Simplified SCIP | e921c804-814d-49e9-8643-da109a59f13f Germany |
| 2a0109b5-d021-4290-95b8-0e5d347a8809 Belgium | |
| 5667af9d-b402-4281-a800-03720786191d Norway | |
| 9e2a38d9-da43-4f4c-ad6d-5af02ad02ee1 Italy | |
| f3ae4e7f-84cd-4bbe-8058-60c820cea830 Sweden | |
| 66927e46-bddf-403f-ae59-0b74fbd1fd96 Poland | |
| 646e406b-f281-4072-9f22-fa50f3683a63 Poland | |
| 034887d0-1322-4cee-a86d-c2288f1694b9 Belgium | |
| 28e1bb43-120d-4130-8bd0-2b6b5eeec76a Spain | |
| c03142d6-7e7b-4ef8-ae94-ea617712f721 Hungary | |
| 6b58d017-eef9-47a7-8533-fab5cad660e8 Germany | |
| b86ec3b3-042d-4ab0-9b76-7e8e3cc4f35e Greece | |
| 775290b1-dd8d-4d75-a1f2-b2ba12bba156 Estonia | |
| 45586f96-fd5e-45bc-9735-d3fb3f90dc76 Bulgaria | |
| 7c53fa8c-c5da-4518-9b23-572f51fb770b Portugal | |
| 5efa1b17-14c1-4913-a4c6-9cac057d71ac Sweden | |
| 926aad81-4449-4ca2-aef9-2c82236510e3 France | |
| 44546846-e200-482f-a31c-ecf86c331730 Czech Republic | |
| e9b8136a-42a9-4032-8c0d-c63ea0d9ef78 Denmark | |
| 65c67fb4-9772-49ec-9f21-32485c781a74 Croatia | |
| e3e152e2-adce-4280-a58c-d0113c5b9105 Hungary | |
| a3721a1c-b048-43d2-8a8f-b8a25965e1f9 Poland | |
| ef699f1b-4163-4fd1-8b3f-9e93c883f61c Netherlands | |
| ef97c5a8-3ac5-4992-baec-6754171f8253 Germany | |
| 1647656a-9a16-4970-b2d7-75e9e46a2f9a Germany | |
| e9ffe431-b383-4344-9712-801dee7fd19b France | |
| 152f05af-1094-4337-a142-d0a6bdaf31e9 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS60GJ03.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 118 mm |
| Product Net Weight | 1.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 1.45 kg |
| 3.2 lb | |
| Package Level 1 EAN | 6417019478012 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 60 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 60 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 60 A |
| (690 V) 60 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 60 A |
| (690 V) 60 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 60 A |
| (690 V) 60 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 15 Hp |
| (acc. to UL 480 V) 30 Hp | |
| (acc. to UL 600 V) 50 Hp | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Tightening Torque UL/CSA | Wire-Clamp 30 in·lb |
| Wire-Clamp 35 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | cULus certificate OS60GJ_ |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | Other |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
