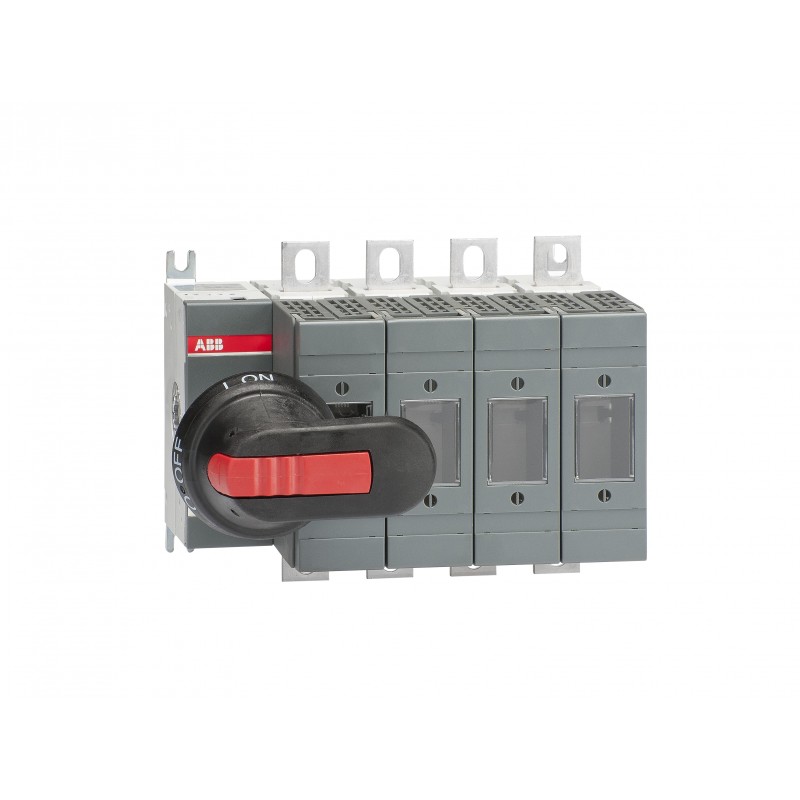

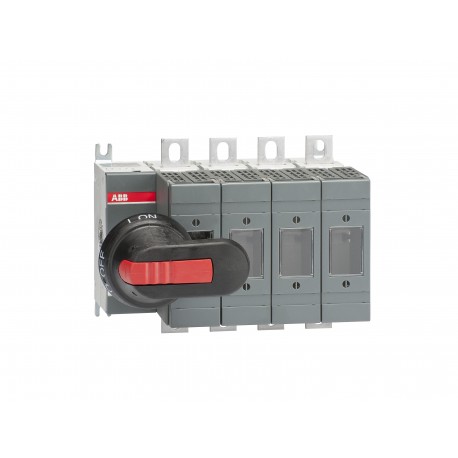

1SCA115402R1001 ABB Fuse switch OS160GD04FP
1SCA115402R1001
ABB
Fuse switch OS160GD04FP
OS160GD04FP SWITCH FUSE
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | de9970c0-1917-4748-9b34-36ade19674a4 Finland |
| Simplified SCIP | a6656f31-c214-4acc-b80a-6b76948c3e0f Germany |
| 934fcc10-d89f-4a1e-8d1a-cb88e9a45696 Portugal | |
| 6bae9ea9-208b-47e4-acdd-40d721ce5702 Germany | |
| 71d03de0-cd37-4a98-a1e4-02d6000e04d4 Greece | |
| b81712d4-a50b-47f3-aba0-79cf2a23f3b8 Estonia | |
| 04b4319c-77bc-4e73-9260-92e76f7c2966 Norway | |
| 326464f0-0430-4dfb-8d62-96d6d4c92139 Belgium | |
| 655106e8-310c-4273-abc5-65c768a20687 Italy | |
| 02f53582-7a66-4ffb-a75c-3beefb27b21a Poland | |
| 161be185-4d92-4bb1-9a3a-546c9adc6eb1 Poland | |
| e7842fdf-ef53-430d-8f21-070d645fed7c Sweden | |
| ce2f1897-c587-445b-ad72-e66529c3de88 Poland | |
| 2d569fd1-99f3-4da5-84e3-791c94d17edd France | |
| 7c7f38a3-414d-44b7-a600-02e2374b0da6 Sweden | |
| 342e7863-1877-493c-98d3-a5f80d50bfd1 Hungary | |
| 400a0ba4-b8ec-450a-9f33-ed4a420866a4 Bulgaria | |
| 24e56ec7-6b86-4aa4-8a6b-96d94985198b Czech Republic | |
| a3f21c32-3963-4ec3-9207-5beaf6ceb872 Germany | |
| a9c1ace7-18c7-4de6-a0ae-ae42446046e7 Denmark | |
| ef1ab22b-94b6-4062-81cc-ae4e8bbfa3e2 Croatia | |
| 91e616fd-788f-4f1a-9601-1014db473a8c France | |
| d6791ee6-f5c0-4294-98ea-ee12873d841c Netherlands | |
| 53188232-8cf4-49af-a074-ee55893316f7 Germany | |
| d3babb28-5203-46eb-ab43-89055bf4618e Hungary | |
| 073b0fdd-4e97-4390-886f-7fce8d8e1dc1 Spain | |
| a707706b-7ace-4933-b8c9-8ad5ec4c95ac Belgium | |
| 0852ca3d-e096-4434-9679-26c1151c69da Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_04.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 182 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.6 kg |
| 5.73 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 250 mm |
| 9.8 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 2.8 kg |
| 6.1 lb | |
| Package Level 1 EAN | 6417019477749 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | NH000 |
| NH00 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660347 |
