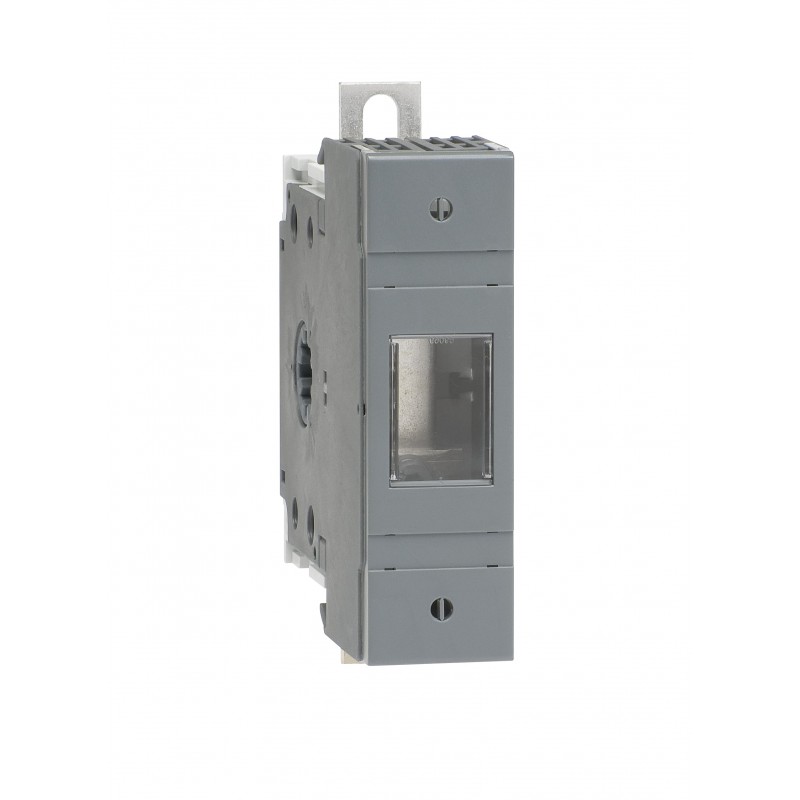

ABB 1SCA114770R1001 1SCA114770R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

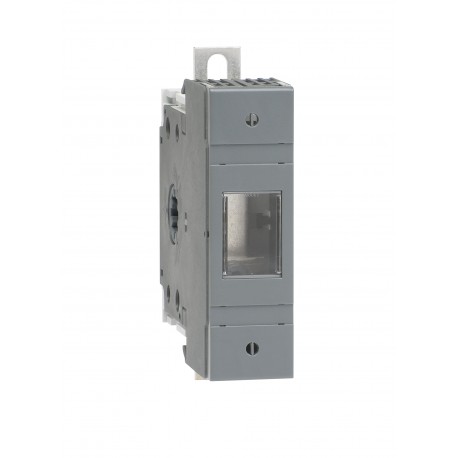

1SCA114770R1001 ABB Fourth Pole OSP160GN

Reference: 1SCA114770R1001

Manufacturer: ABB

Description:

Fourth Pole OSP160GN

OSP160GN FOURTH POLE

Categories:

Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

Unit Price: 55,63 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information	1SCC311013C0201
Instructions and Manuals	1SCC311037M0206
Mechanical Drawings	OSP160G_B_N.stp
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099
Country or Territory of Origin	Finland
Dimensions
Product Net Width	75 mm
Product Net Height	146 mm
Product Net Depth / Length	160 mm
Product Net Weight	0.5 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	75 mm
Package Level 1 Depth / Length	160 mm
Package Level 1 Height	146 mm
Package Level 1 Gross Weight	0.5 kg
Package Level 1 EAN	6417019471969
Technical
Conventional Free-air Thermal Current (I_th)	160 A
Conventional Thermal Current (I_the)	160 A
Mounting Type	Screw mounting
Power Loss	at Rated Current 9 W
Rated Operational Voltage	Main Circuit 690 V AC
Special Functions	GN
Terminal Type	Lug terminals
Tightening Torque	15 … 22 N·m
Technical UL/CSA
Tightening Torque	15 … 22 N·m
Certificates and Declarations
External Classifications and Standards
Object Classification Code	N/A
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10	EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC	39122221
eClass	V11.1 : 27371392
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3600139
E-Number (Sweden)	3171033
