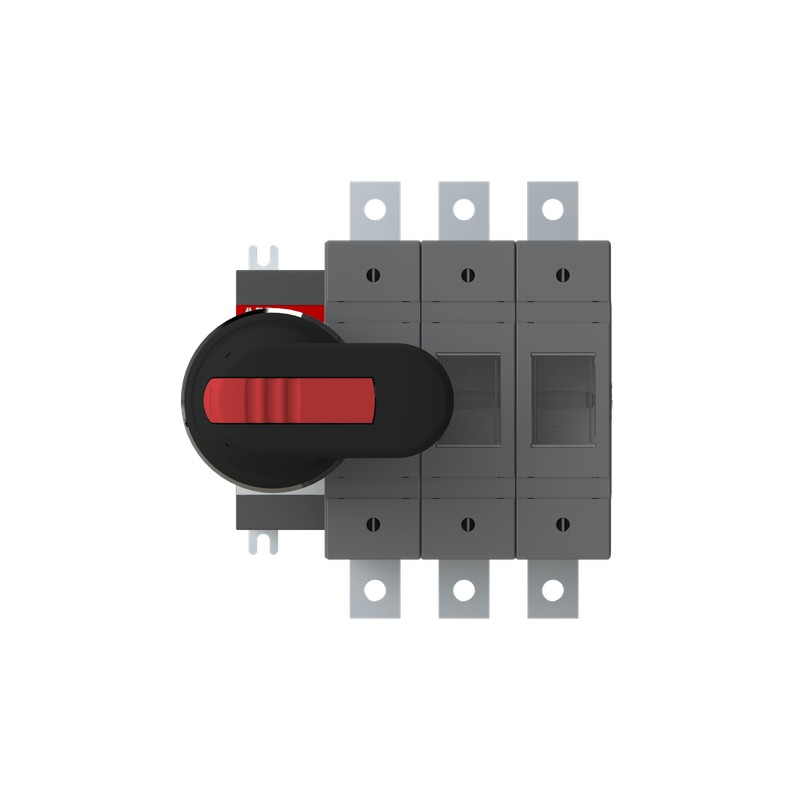

1SCA114613R1001 ABB Fuse Switch OS100GB03P
1SCA114613R1001
ABB
Fuse Switch OS100GB03P
OS100GB03P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cfcaba33-4cd5-4e73-8501-8549fe774750 Finland |
| Simplified SCIP | 651676db-599d-436c-bd33-7df3975e8796 Germany |
| 40669426-4c5e-401c-8333-c97103ad8c4e Germany | |
| 4f77ca75-071c-41fb-ac1e-660026920402 Germany | |
| 5aaed291-d372-4ed1-acbc-7f2f5d977a73 Netherlands | |
| 5c4caf31-feca-4af8-9299-17addf6723df Hungary | |
| de3fb61a-162b-49a4-8674-ea79fafb9ac9 France | |
| 761f5c81-00fc-405d-af33-724706f9a1bf Belgium | |
| 215af842-5363-4347-938e-9369ecfaa203 Sweden | |
| aa640aa0-94b7-4e33-a456-c7cf237f8f91 Germany | |
| b5e0c519-b912-4c9a-8346-1838d50fe2c7 Sweden | |
| 4d8e4710-42c0-4ab3-ac3d-ee53381c0627 Poland | |
| a107238a-9036-4d01-87f5-f0e6f7c9a31a Estonia | |
| badbee06-88d5-485d-8192-e1bf228d6820 Germany | |
| bbe5681f-866d-47b1-9ace-aec5d787d960 Greece | |
| fe1e3bb2-6f9f-441e-ae36-e6fa281ce93a Portugal | |
| e59f1ff2-10d1-40d9-8974-2f9251aaf302 Norway | |
| 58450bc0-2df6-48c7-8517-bae5fa74e2ca Belgium | |
| b218443e-f4ea-41a2-9da2-c4d2fc4273cd Croatia | |
| f61955c7-dac1-41ec-a1f8-014fb834fdfc Poland | |
| 66f78e69-f011-41a2-8410-c4eb8e6a553a Poland | |
| d3efb746-9c24-457e-ba2c-6bc24fa5618f Bulgaria | |
| 730a946f-1cbe-4795-9b3f-6917a446455f Spain | |
| b468a616-6794-4ba3-b7cf-4b1380a63786 France | |
| 4dc0f1f4-af91-48a8-a9fb-5b0995061384 Hungary | |
| 8eef4898-d425-45ba-995f-a82b4d791bac Czech Republic | |
| a8448d5c-7122-4fcb-af6f-99637d476837 Denmark | |
| 7cd7d867-9b25-4f43-b8a4-9e43e8631c70 Italy | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS100-200GB03_iges.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 147 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 115 mm |
| Product Net Weight | 2.06 kg |
| 4.54 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.9 lb | |
| Package Level 1 EAN | 6417019470337 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 100 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 100 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | A2-A4 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 30 kW |
| (400 V) 55 kW | |
| (415 V) 55 kW | |
| (500 V) 55 kW | |
| (690 V) 90 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 100 A |
| Rated operation power at AC-23, 400 V (EF007027) | 90 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 5 kA |
| Suitable for fuses (EF006692) | Other |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA114613R1001 1SCA114613R1001 EN_1SCA114613R1001.pdf | 307 Kbytes |
|
