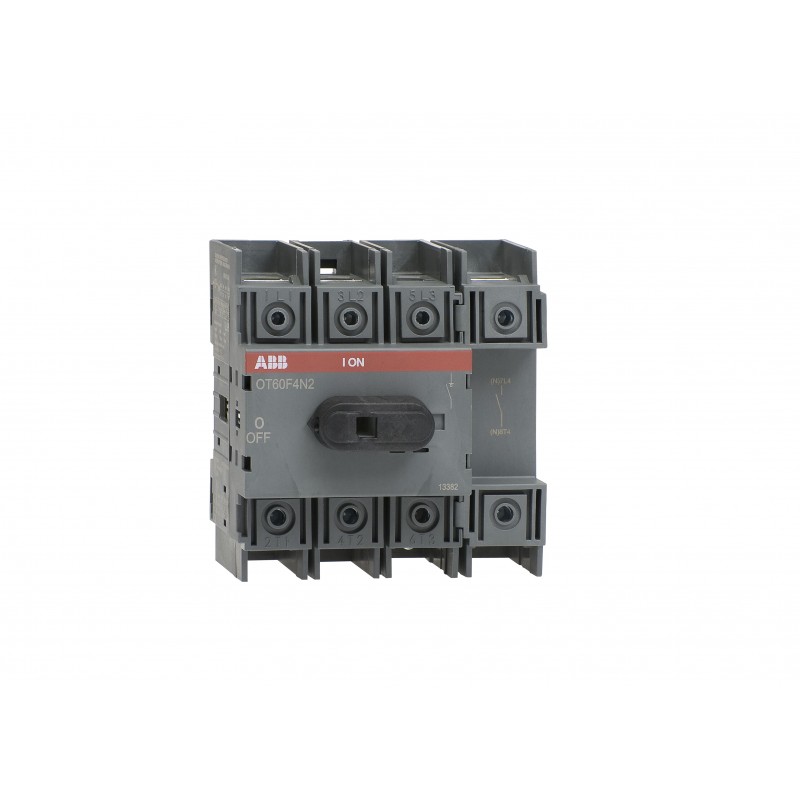

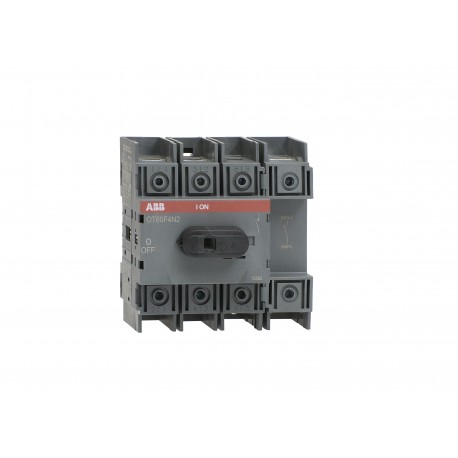

1SCA108348R1001 ABB Disconnector switch OT60F4N2

Code: 1SCA108348R1001

Manufacturer: ABB

Description:

Disconnector switch OT60F4N2

OT60F4N2 SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 96,61 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

ABB EcoSolutions
Environmental Information	1SCC301154D0202
Environmental Product Declaration - EPD	1SCC301280D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301060M0004
Mechanical Drawings	1SCC301468F0001
	1SCC301467F0001
	OT100-125F4N2.stp
	OT100-125F4N2.igs
Environmental Product Declaration - EPD	1SCC301280D0201
Environmental
Degree of Protection	Front IP20
Environmental Information	1SCC301154D0202
Pollution Degree	3
Ordering
Minimum Order Quantity	10 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	96.5 mm
Product Net Height	100 mm
Product Net Depth / Length	74 mm
Product Net Weight	0.43 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	109 mm
Package Level 1 Depth / Length	112 mm
Package Level 1 Height	86 mm
Package Level 1 Gross Weight	0.46 kg
Package Level 1 EAN	6417019416496
Technical
Cable Cross-Section	Cu 2.5 ... 25 mm²
Connecting Capacity Main Circuit	Flexible 1x Cu 2.5…25 mm²
	Stranded 1x Cu 2.5…25 mm²
Degree of Protection	Front IP20
Distance Between Phases	Standard
Fourth Pole Position	Right Side
Fourth Pole Type	Switched - Simultaneous Function
Handle Type	Knob
	Handle and shaft not included
Mechanical Durability	20000
Mounting Type	Base mounting
Number of Poles	4P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 1.6 W
Rated Conditional Short-Circuit Current (I_nc)	(125 A fuse, 415 V) 50 kA
	(125 A fuse, 690 V) 10 kA
	(63 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 63 A
	(500 V) 63 A
	(690 V) 63 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 63 A
	(500 V) 63 A
	(690 V) 63 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 63 A
	(500 V) 63 A
	(690 V) 40 A
Rated Operational Power AC-23A (P_e)	(380 ... 415 V) 37 kW
	(500 V) 37 kW
	(690 V) 37 kW
Rated Operational Voltage	Main Circuit 750 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 3.6 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 2.5 kA
Recommended Screw Driver	Main Circuit Hexagon 4
Special Functions	No
Standards	IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism	Mechanism on Top of the Switch
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 6.2 N·m
Wire Stripping Length	Main Circuit 17-18 mm
Technical UL/CSA
Maximum Operating Voltage UL/CSA	600 V
Ampere Rating	60 A
Horsepower Rating UL/CSA	(110 ... 120 V AC) Single Phase 3 Hp
	(240 V AC) Single Phase 7.5 Hp
	(220 ... 240 V AC) Three Phase 20 Hp
	(440 ... 480 V AC) Three Phase 40 Hp
	(550 ... 600 V AC) Three Phase 40 Hp
Wire Stripping Length	Main Circuit 17-18 mm
Recommended Screw Driver	Main Circuit Hexagon 4
Tightening Torque	acc. IEC 60947-1 6.2 N·m
Tightening Torque UL/CSA	55 in·lb
Certificates and Declarations
A2L Certificate – IEC	1SCC301335D0201
ATEX Certificate	No certification needed
Declaration of Conformity - CE	1SCC301010D0201
UL Certificate	cULus certificate OT30-125
VDE Certificate	No certification needed
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122221
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3601469

ETIM for 1SCA108348R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value750 V

Feature nameRated operating voltage (EF001435)

Feature value750 V

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value63 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value63 A

Feature nameRated short-time withstand current lcw (EF007050)

Feature value2.5 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value37 kW

Feature nameSwitching power at 400 V (EF009166)

Feature value37 kW

Feature nameConditioned rated short-circuit current Iq (EF001444)

Feature value50 kA

Feature nameNumber of poles (EF001391)

Feature value4

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueComplete device in housing

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameType of control element (EF006976)

Feature valueLong turning handle

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueScrew connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP20

Feature nameDegree of protection (NEMA) (EF011959)

Feature valueOther
