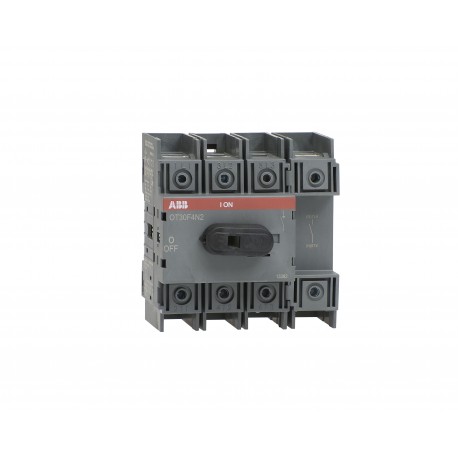

1SCA108347R1001 ABB Disconnector switch OT30F4N2 UL
1SCA108347R1001
ABB
Disconnector switch OT30F4N2 UL
OT30F4N2 SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC301183D0201 |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301060M0004 |
| Mechanical Drawings | 1SCC301468F0001 |
| 1SCC301467F0001 | |
| OT100-125F4N2.stp | |
| OT100-125F4N2.igs | |
| Environmental Product Declaration - EPD | 1SCC301280D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301183D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 96.5 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 86 mm |
| Product Net Weight | 0.43 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 109 mm |
| Package Level 1 Depth / Length | 112 mm |
| Package Level 1 Height | 86 mm |
| Package Level 1 Gross Weight | 0.46 kg |
| Package Level 1 EAN | 6417019416472 |
| Technical | |
| Cable Cross-Section | Cu 2.5 ... 25 mm² |
| Connecting Capacity Main Circuit | Flexible 1x Cu 2.5…25 mm² |
| Stranded 1x Cu 2.5…25 mm² | |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Knob |
| Handle and shaft not included | |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 0.7 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA |
| (125 A fuse, 690 V) 10 kA | |
| (63 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 40 A | |
| (690 V) 40 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 40 A | |
| (690 V) 40 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 40 A |
| (500 V) 40 A | |
| (690 V) 40 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 18.5 kW |
| (500 V) 22 kW | |
| (690 V) 37 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6.2 N·m |
| Wire Stripping Length | Main Circuit 17-18 mm |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp |
| (240 V AC) Single Phase 5 Hp | |
| (220 ... 240 V AC) Three Phase 10 Hp | |
| (440 ... 480 V AC) Three Phase 20 Hp | |
| (550 ... 600 V AC) Three Phase 30 Hp | |
| Wire Size | 1x 12-2/0 AWG |
| 2x 12-4 AWG | |
| Wire Stripping Length | Main Circuit 17-18 mm |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | acc. IEC 60947-1 6.2 N·m |
| Tightening Torque UL/CSA | 55 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301010D0201 |
| UL Certificate | cULus certificate OT30-125 |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601468 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 40 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 40 A |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 18.5 kW |
| Switching power at 400 V (EF009166) | 18.5 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA108347R1001 1SCA108347R1001 EN_1SCA108347R1001.pdf | 89 Kbytes |
|
